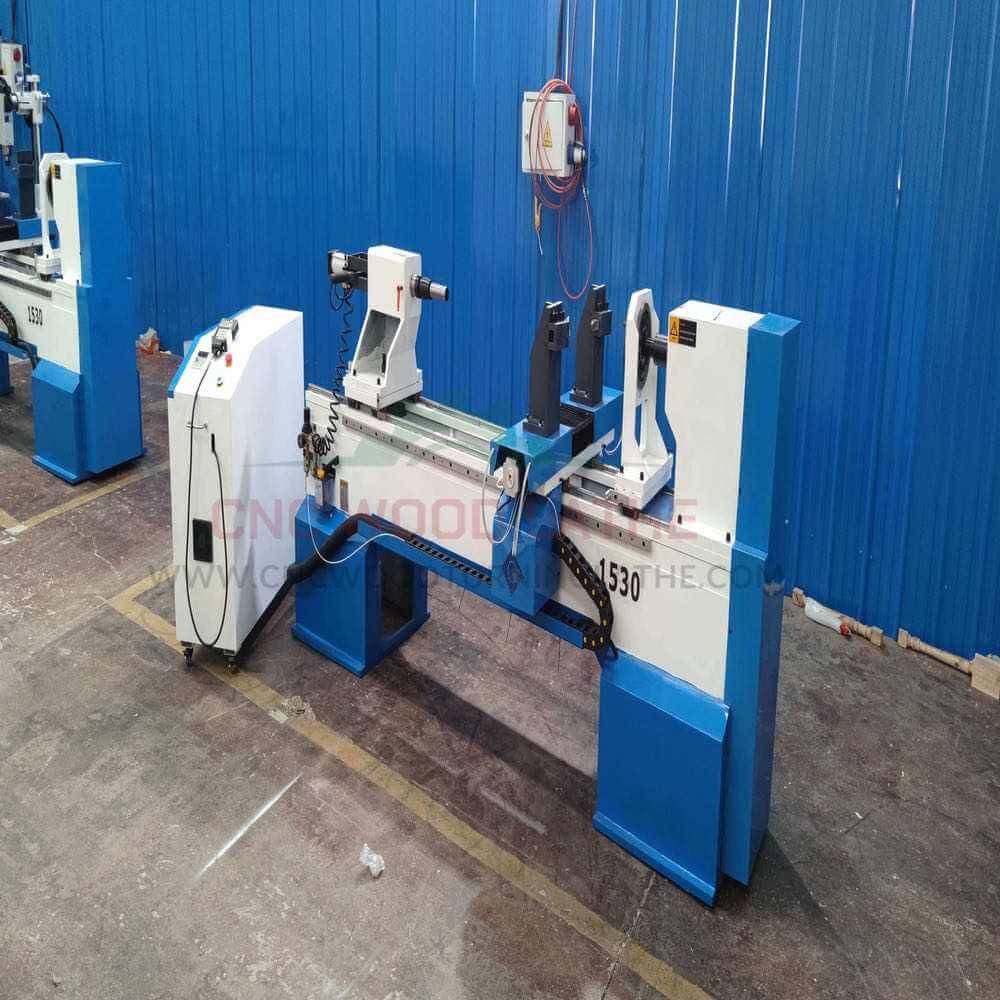

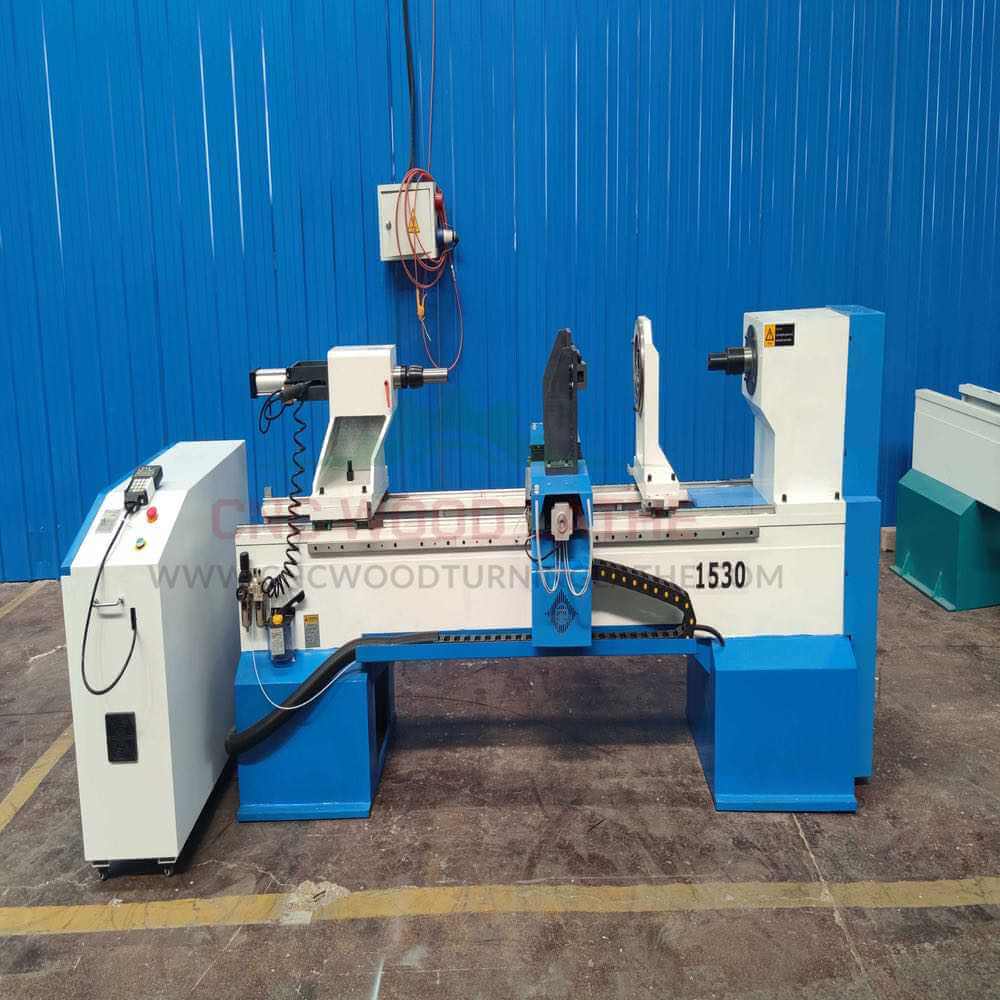

Torno de madera CNC con soporte CT-1530
$4200-$9800
- Modelo: CT-1530
- Tamaño de trabajo: diámetro 300 mm, longitud 1500 mm
- Categoría: Mini torno CNC para madera
- Orientación técnica continua para clientes finales y distribuidores
- Métodos de pago flexibles: pagos seguros en línea y fuera de línea: PayPal, Alibaba, transferencia bancaria y tarjetas aceptadas.
- Red de transporte internacional que garantiza entregas puntuales en cualquier lugar
- Garantía integral de un año para la unidad completa con planes de protección adicionales para las piezas principales
Descripción general del producto de la máquina de torno de madera CNC con soporte CT-1530 Torno de madera
El CT-1530 Standard Size CNC Wood Lathe Machine is a high-precision and heavy-duty woodturning solution designed for producing cylindrical, tubular, and complex wooden workpieces with exceptional accuracy and efficiency. Featuring a robust cast iron bed, Taiwan TBI ball screws, and Hiwin square guide rails, it offers excellent stability and long-term durability. With a maximum turning diameter of 300 mm and processing lengths of 1500 mm, 2000 mm, or 2500 mm, it is ideal for crafting stair columns, balusters, table legs, chair components, vases, baseball bats, and various decorative or functional wood products. Equipped with powerful stepper motors, Yako drivers, and dual cutters for roughing and finishing, the CT-1530 ensures fast, smooth, and high-quality turning. Its user-friendly control system supports CAD software and .dxf file transfers via USB, making it perfect for both mass production and custom woodworking applications.
Características principales del torno de madera CNC con soporte CT-1530
- Large Turning Capacity: Supports a maximum turning diameter of 300 mm with processing lengths available in 1500 mm, 2000 mm, or 2500 mm, suitable for various woodturning applications.
- Heavy-Duty Cast Iron Bed: The lathe bed is made entirely of cast iron and undergoes high-temperature annealing y vibration stress relief treatment, ensuring long-term structural stability without deformation.
- High-Precision Transmission: Equipado con Taiwan TBI ball screws y Taiwan Hiwin square linear guideways, offering exceptional accuracy and an extended service life.
- Powerful Drive System: Features high-torque stepper motors paired with Yako drivers, enabling high-speed and smooth wood turning.

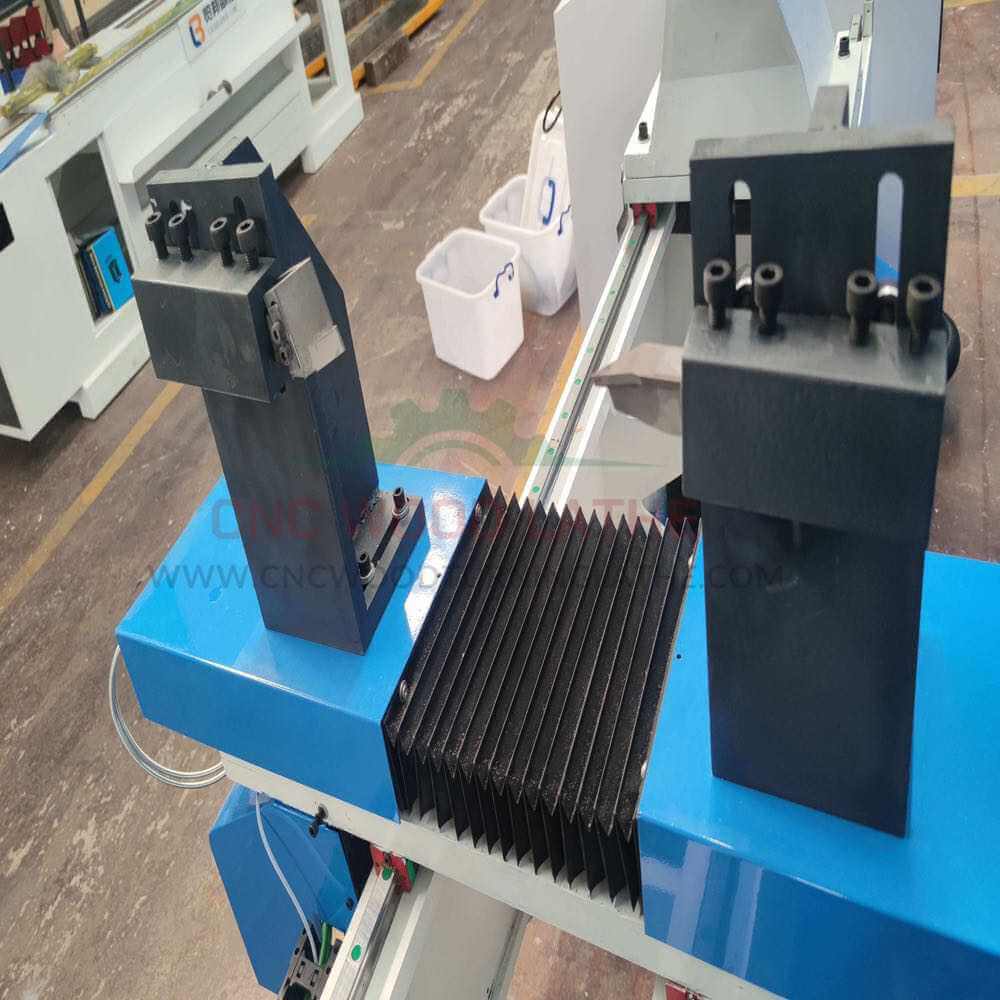

- Dual-Cutter Design: The machine includes two cutting tools—one for rough shaping and one for finish turning—positioned on both sides. These operate synchronously in layered steps, significantly boosting productivity and improving the surface finish of the workpiece.
- User-Friendly Control: Simple to operate, with CAD file compatibility. Users can import .dxf files directly via USB, streamlining the workflow from design to production.
Especificación del tamaño del soporte del torno de madera CNC CT-1530 Torno de madera
| Artículo | Especificación |
|---|---|
| Max. Machining Diameter | 300 mm |
| Max. Processing Length | 1500 mm |
| Potencia del motor principal | 5.5 kW, 3-phase |
| Machine Functions | Turning and Cutting |
| Max. Feed Speed | 35 mm/s |
| Velocidad del husillo | 0 – 3500 rpm |
| Accuracy | 0.001 mm |
| Machine Structure | Heavy cast iron base with large welded square steel frame |
| Inverter | Fuling or premium inverter |
| Axis Drive Motors | 450C Stepper motors |
| Motor Drivers | Yako 2D811 |
| Transmission System | Y-axis: Rack & Pinion; X & Z axes: Taiwan TBI ball screws |
| Rieles guía | Taiwan Hiwin square linear guideways |

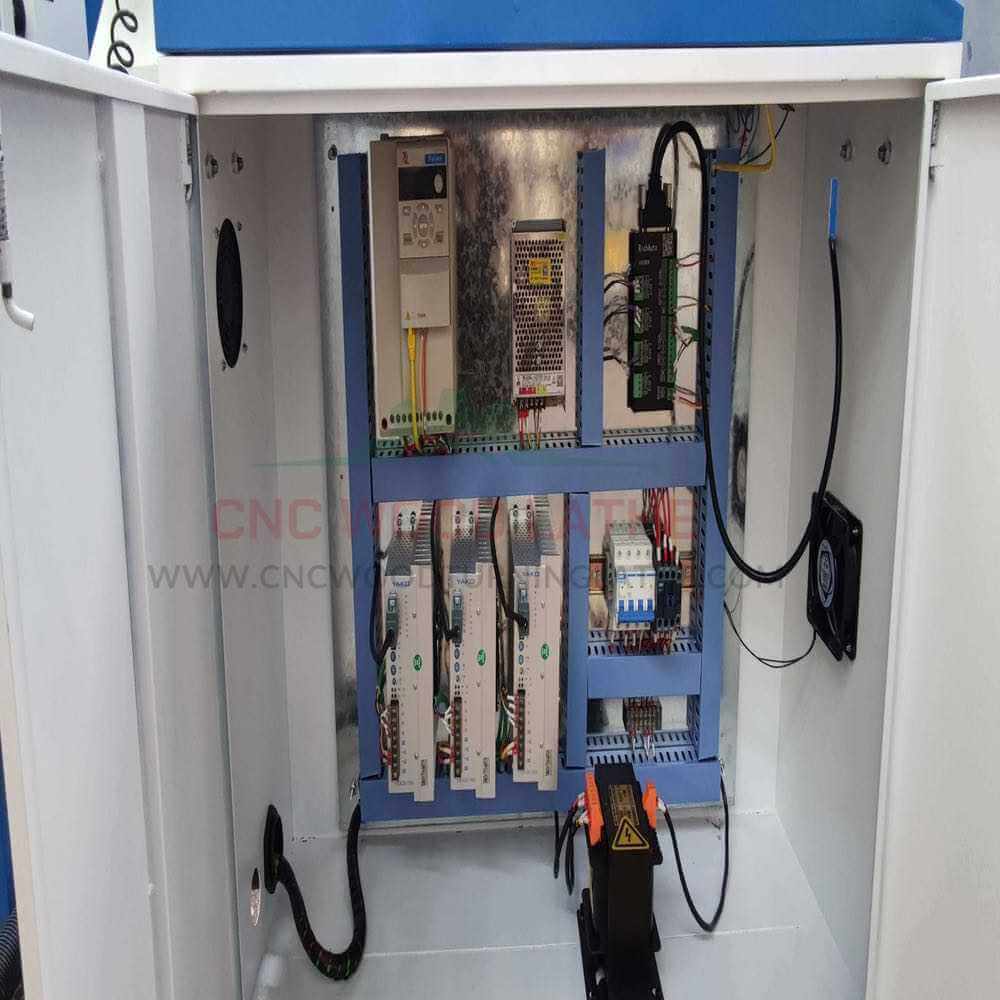

| Control Cabinet | Independent cabinet design |
| Lubrication System | Manual lubrication |
| Sistema de control | DSP or CT controller |
| Supported Commands | G Code |
| Compatible Software | AutoCAD, CorelDRAW, ArtCAM, Type3, Ucancam, CAXA, UG, Mastercam |
| Fuente de alimentación | 380V / 50Hz, 3-phase (customizable) |
| Dimensiones de la máquina | 3750 × 1300 × 1400 mm |
| Dimensiones del embalaje | 3900 × 1100 × 1600 mm |
| Peso neto | 2300 kg |
| Peso bruto | 2400 kg |
Aplicaciones del torno de madera CNC de tamaño de soporte CT-1530 Torno de madera
This machine is extensively used for processing a wide range of cylindrical, tubular, y bowl-shaped wooden workpieces, as well as various decorative and functional wood products. Typical applications include staircase columns, balusters, newel posts, dining and side table legs, sofa and bar stool legs, Roman-style pillars, standard columns, washstands, wooden vases, table components, baseball bats, automotive wooden parts, children’s bed posts, chair arms and stretchers, sofa feet, bed rails, lamp stands, and many other turned wooden crafts.
Presentación del producto: Torno de madera CNC CT-1530 con tamaño de soporte. Torno de madera.
¿Está listo para mejorar su torneado de madera?
Consigue tu personalizado Solución de torno de madera CNC Contáctenos hoy mismo para obtener información detallada sobre precios y asesoramiento técnico.
