Factory Price 4 Axis CNC Wood Turning Lathe Carving Machine
$6900-$16800
- Model: CT-1530-4A
- Dimensioni di lavoro: diametro 300 mm, lunghezza 1500 mm
- Category: Four Axis CNC Wood Lathe
- Consulenza tecnica continua sia per i clienti finali che per i rivenditori
- Metodi di pagamento flessibili – Pagamenti sicuri online e offline – PayPal, Alibaba, T/T, carte accettate
- Rete di trasporto internazionale che garantisce consegne puntuali ovunque
- Garanzia completa di un anno per l'unità completa con piani di protezione aggiuntivi per le parti principali

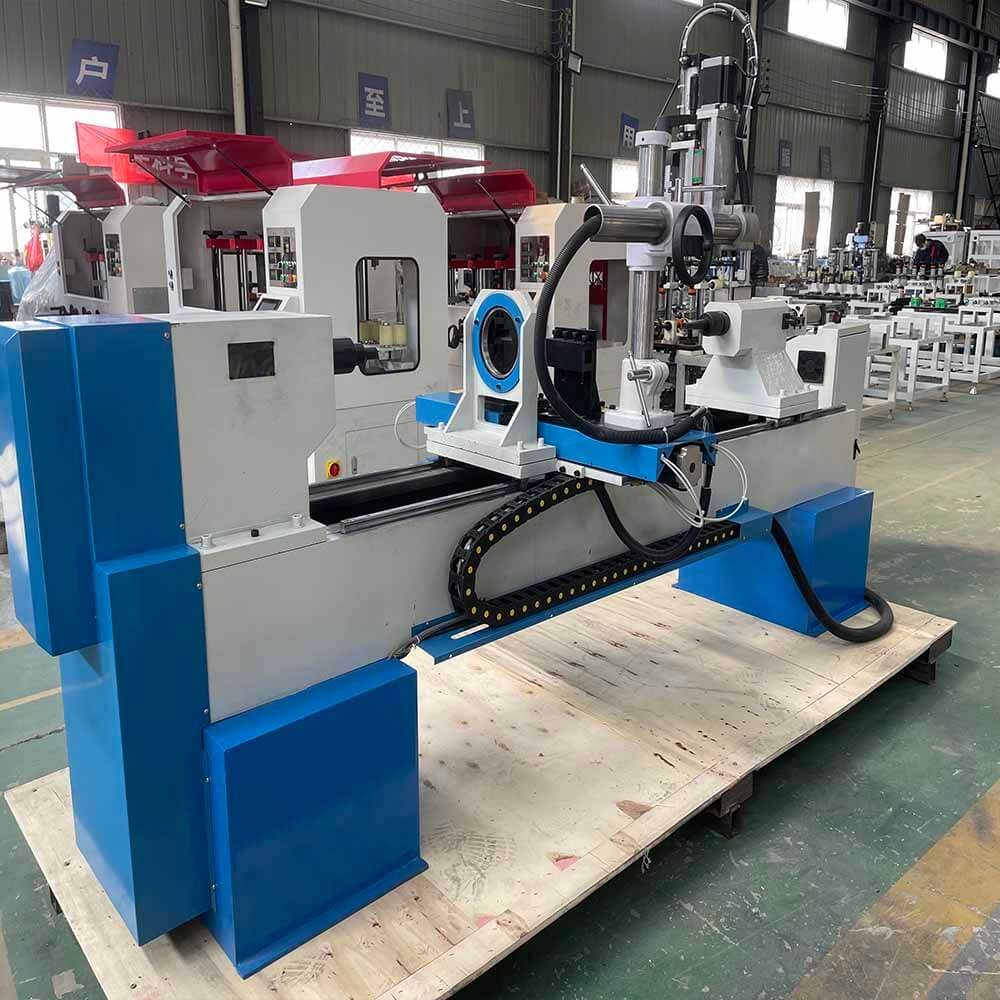

Overview of Factory Price 4 Axis CNC Wood Turning Lathe Carving Machine
IL Tornio per intaglio, fresatura e tornitura di legno con alimentazione automatica CNC is a versatile and high-performance machine designed to streamline woodworking processes. It integrates multiple functions, including turning, milling, carving, and sanding, offering an all-in-one solution for producing a wide variety of wooden products like furniture components, staircase balusters, table legs, and custom wood pieces. Featuring automatic feeding for increased efficiency, this lathe ensures precise, consistent results with minimal manual intervention. Built with robust construction and equipped with advanced components such as a powerful motor and high-precision guide rails, it provides exceptional durability and accuracy. Compatible with popular CAD/CAM software, the machine is user-friendly and ideal for both mass production and custom woodworking projects.
Key Features of Factory Price 4 Axis CNC Wood Turning Lathe Carving Machine
- Versatile Planer: Equipped with a planer for shaping irregular wood, capable of creating unique and customized wood pieces with precision.
- High-Speed Saw: Fast and efficient saw function designed for cutting wood columns, ensuring quick and clean cuts for large wood parts.
- Polishing Tools: Includes a dedicated polishing tool that smooths wood surfaces for a flawless finish, enhancing the quality of your wood products.
- Powerful Engraving Spindle: Features a 4.5kW spindle for detailed engraving on both flat and round wood surfaces, perfect for creating intricate designs.
- Wood Shaping Cutter: Designed to shape and carve wood into custom profiles, providing flexibility in creating various wood forms and structures.
- Professional Software Compatibility: Works seamlessly with multiple CAD/CAM software, offering flexibility in design input and efficient project management.
- Automatic Feeding System: Incorporates an automated wood feeding device to save time and labor, enhancing production efficiency for large-volume woodworking.
- Durable Cast Iron Structure: The machine’s heavy-duty, double-cast iron body undergoes high-temperature annealing and stress relief, ensuring stability and preventing deformation, even with a weight of 2800kg.
Specification of Factory Price 4 Axis CNC Wood Turning Lathe Carving Machine
| Articolo | Specifica |
|---|---|
| Modello | CT-1220 (1200mm x 200mm) |
| Machine Structure | Heavy-duty cast iron lathe bed for enhanced stability and durability. |
| Spindle Shaft | Sturdy spindle with NSK deep groove ball bearings, P5 grade for high precision. |
| Sistema di azionamento | – Power Supply: 380V, 3-phase, 50Hz – Spindle Motor: 5.5kW Servo Motor – Drive Control: Japan Yaskawa drivers (4 sets) |
| Inverter | Fuling Inverter (5.5kW) for optimal speed control and energy efficiency. |
| Guide di scorrimento | Taiwan HIWIN/PMI Linear Square Rails for smooth, precise motion. |
| Trasmissione | TBI Ball Screws for XYZA axis for high precision and consistent performance. |
| Velocità del mandrino | 0-3000 rpm (adjustable for various machining tasks). |
| Material Size | – Max Diameter: 200mm – Max Length: 1200mm (Customizable to 2000mm, 2500mm, 3000mm) |
| Center Sleeve ID | 1.414 times the side length of the material. No sleeve required for materials over 60mm diameter. |
| Weight Capacity | 500kg maximum material load. |
| Engraving Speed | 4m/min for efficient wood engraving. |
| Maximum Feed Rate | 700mm/min for quick material handling. |
| Minimum Setting Unit | 0.1mm precision for fine adjustments. |
| Pivoting Device | Pneumatic air connection (6-8 bar) for secure material clamping. |
| Electrical Protection | Air break switch protection for safety. |
| Dimensioni della macchina | – Without Operation Box: 3100mm (L) x 1380mm (W) x 1780mm (H) |
| Dimensioni dell'imballaggio | – With Operation Box: 3200mm (L) x 1580mm (W) x 1980mm (H) |
| Peso netto | 2000kg |
| Software Compatibility | Compatible with PowerMill, UG, and other CAD/CAM software. |

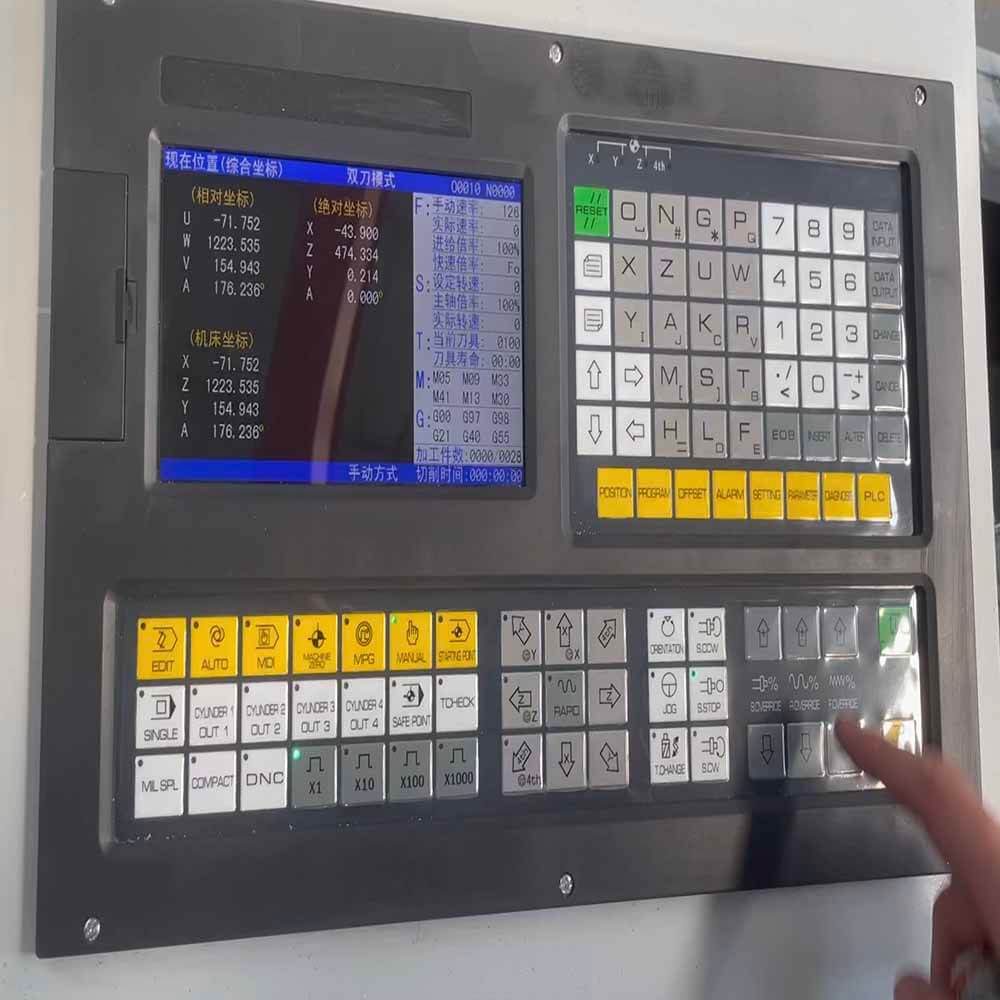

| Sistema di controllo | NK300 Control Panel with handwheel for precise operation. |
Applications of Factory Price 4 Axis CNC Wood Turning Lathe Carving Machine

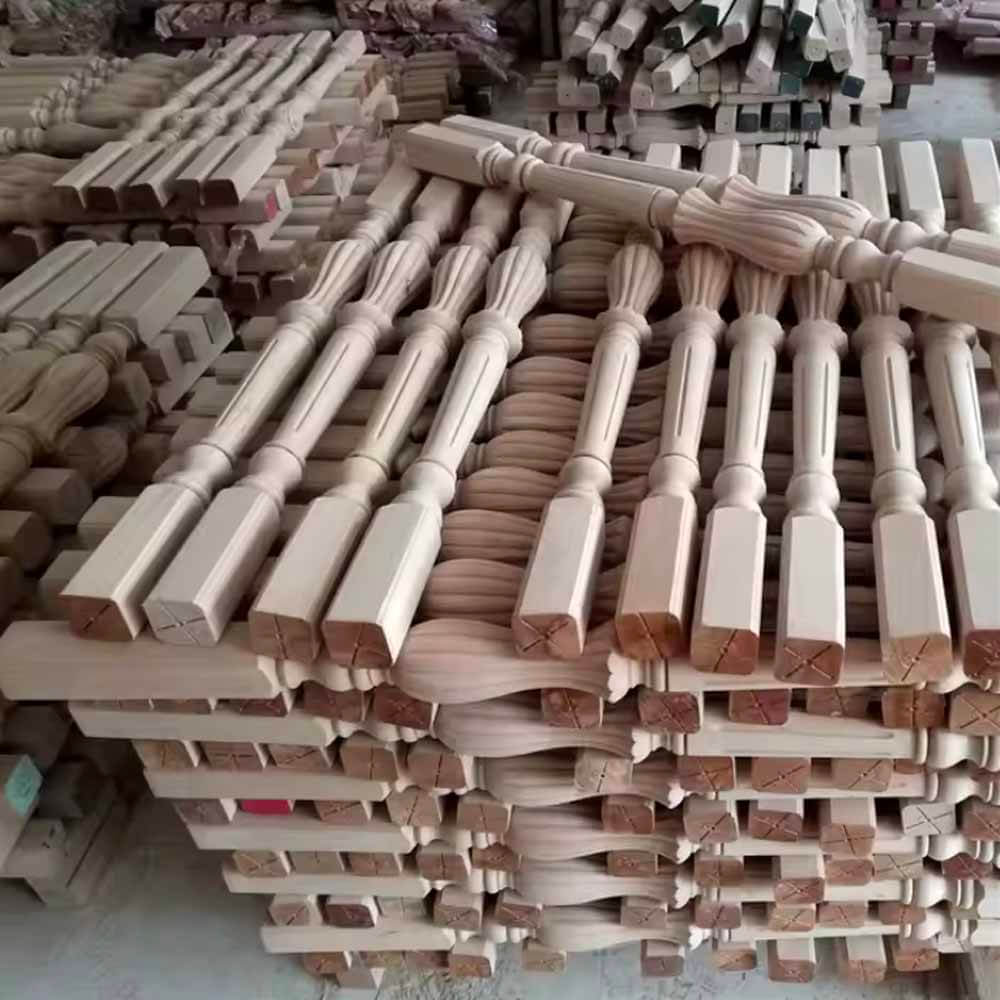

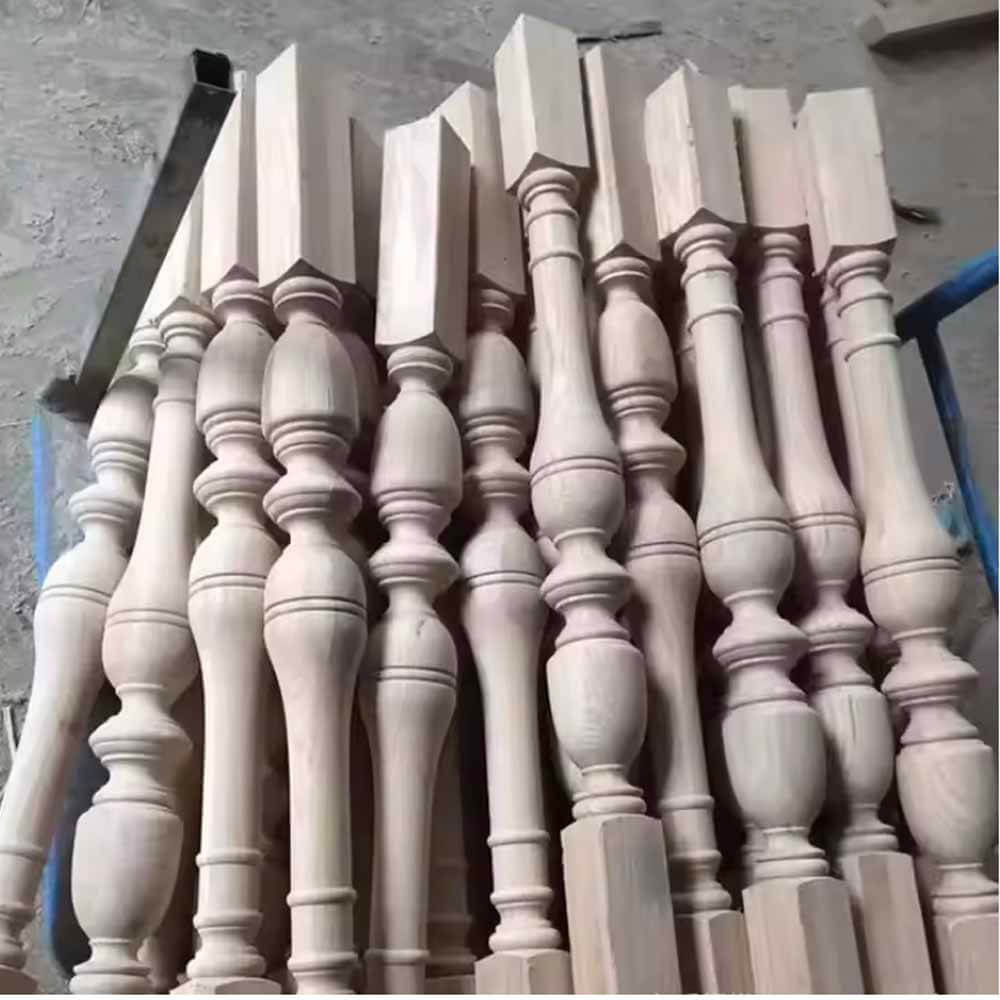

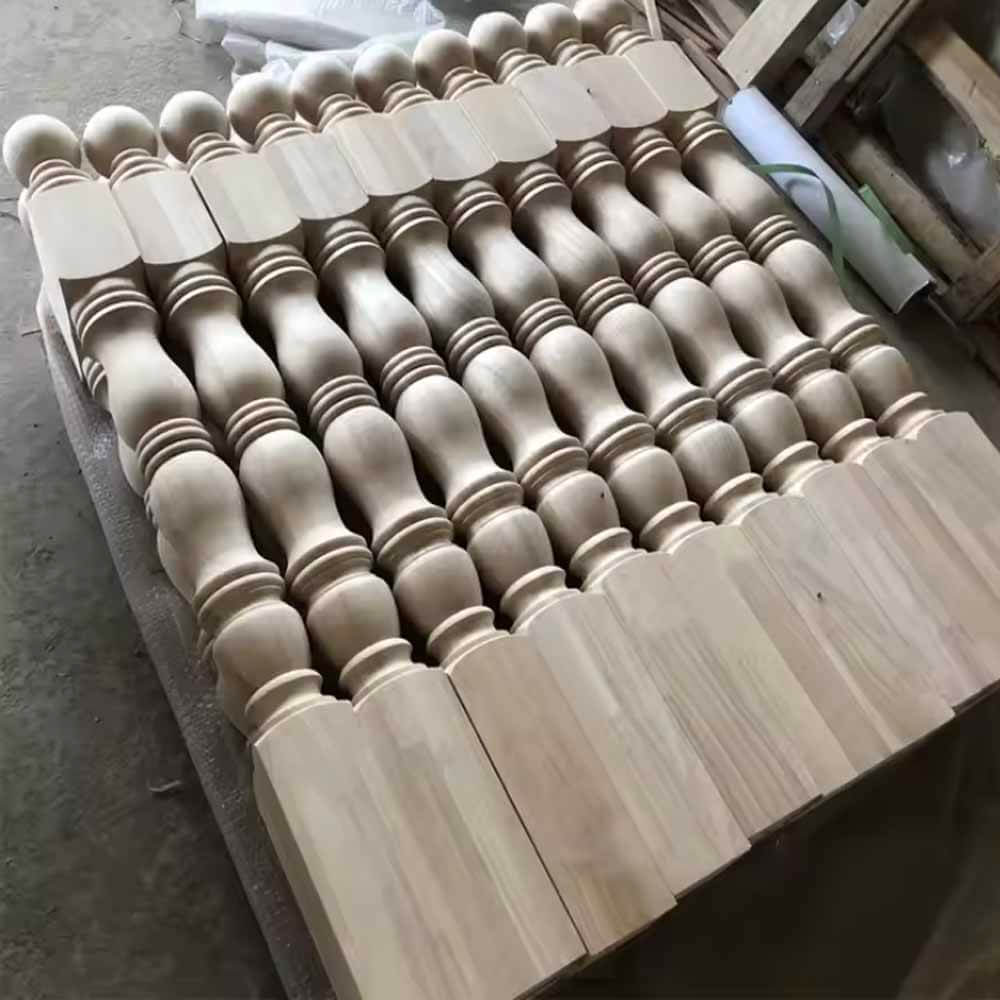

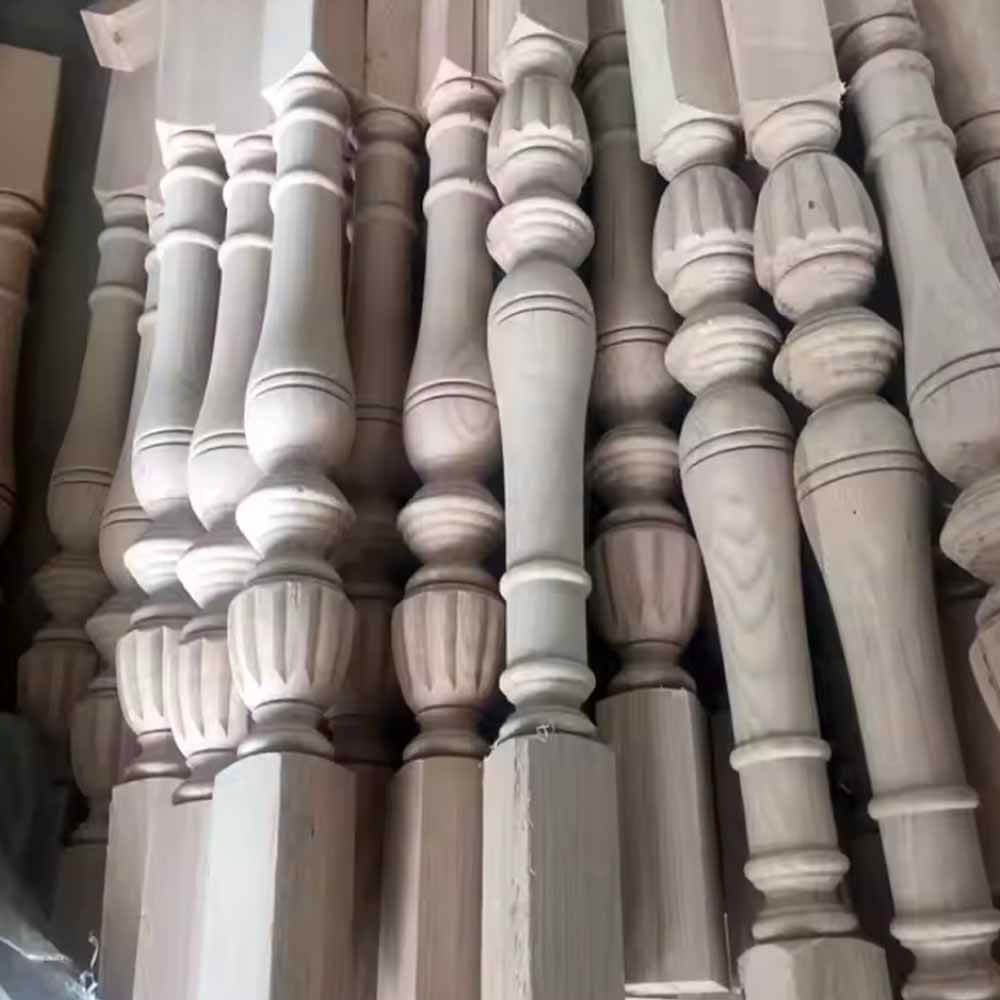

The machine is ideal for creating various wooden components such as staircase rails, banisters, newel posts, dining table legs, end table legs, sofa legs, bar stool legs, chair legs, chair arms, chair stretchers, bed rails, wooden bowls, lamp posts, baseball bats, wooden plates, and other custom wood items. It is perfect for manufacturing intricate wood parts for furniture, home decor, E crafts, compreso ornamental posts, decorative columns, and more. This CNC lathe machine can handle both functional and decorative wood pieces, providing precise turning, shaping, and engraving for a wide range of applications.

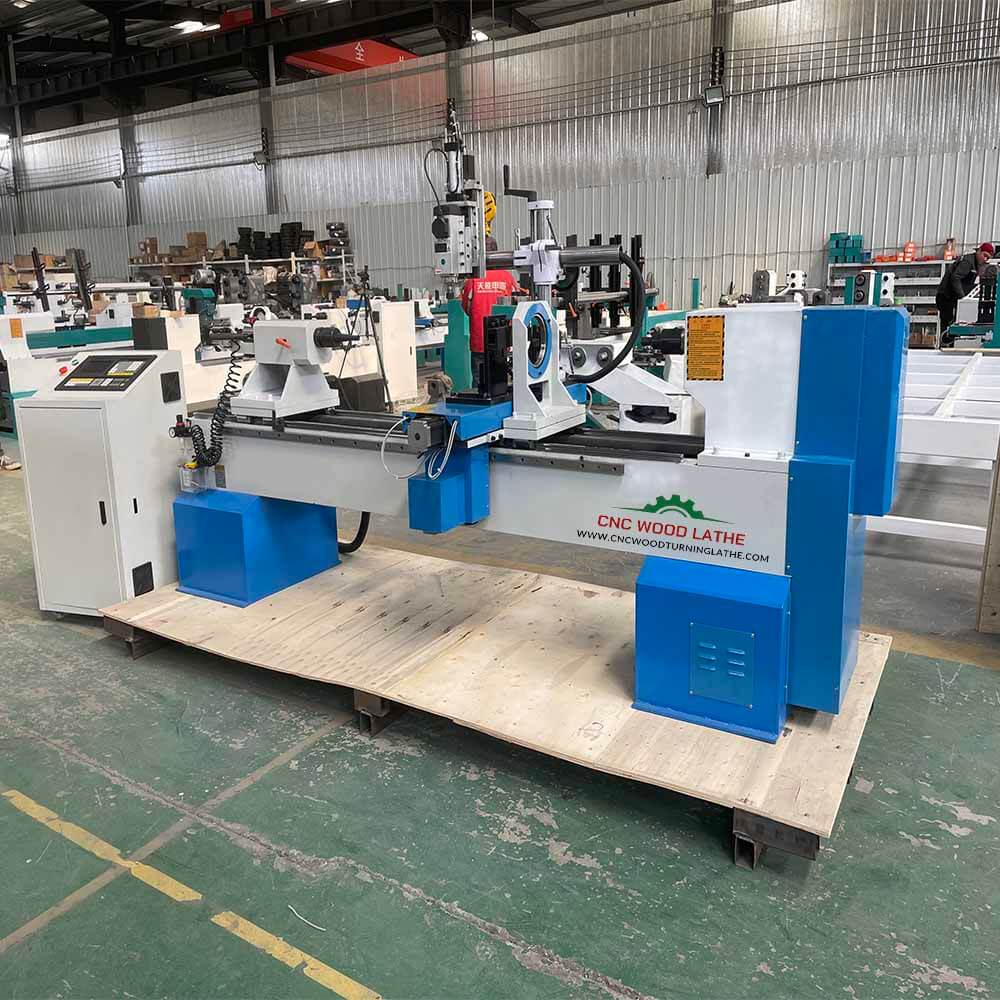

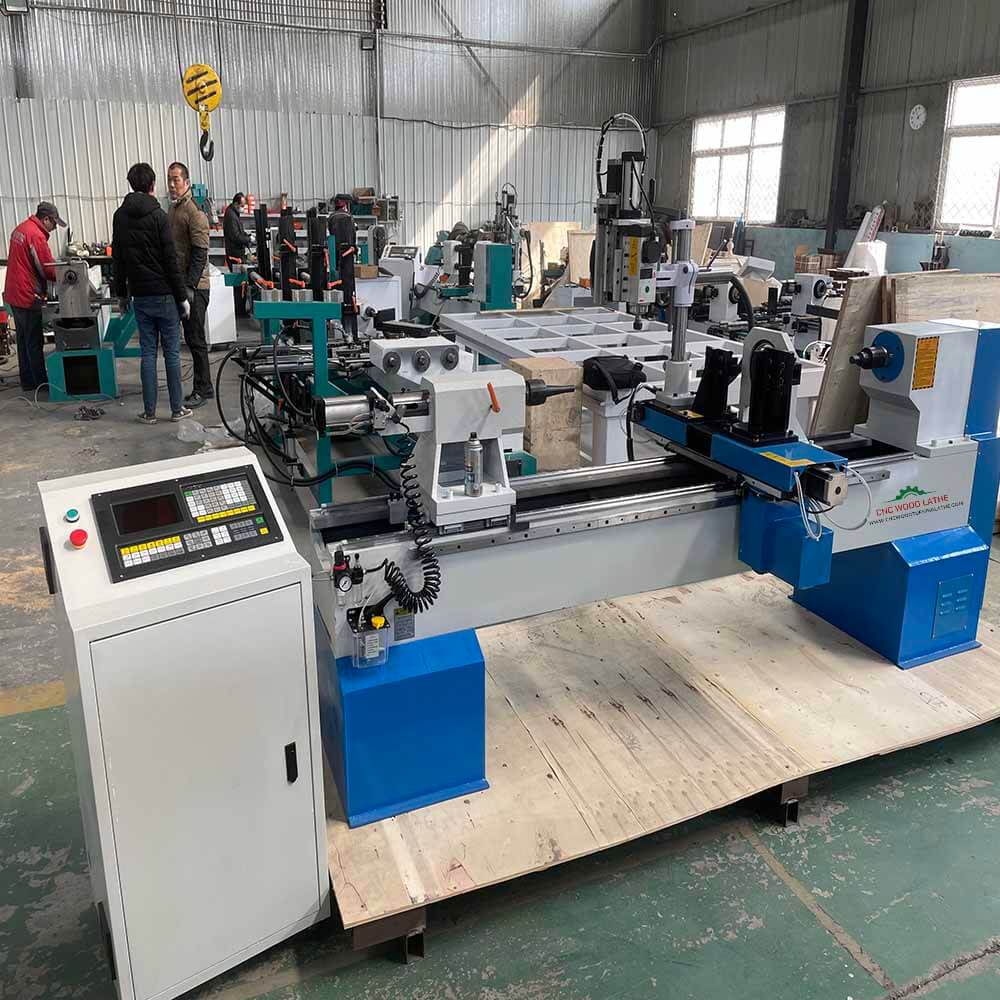

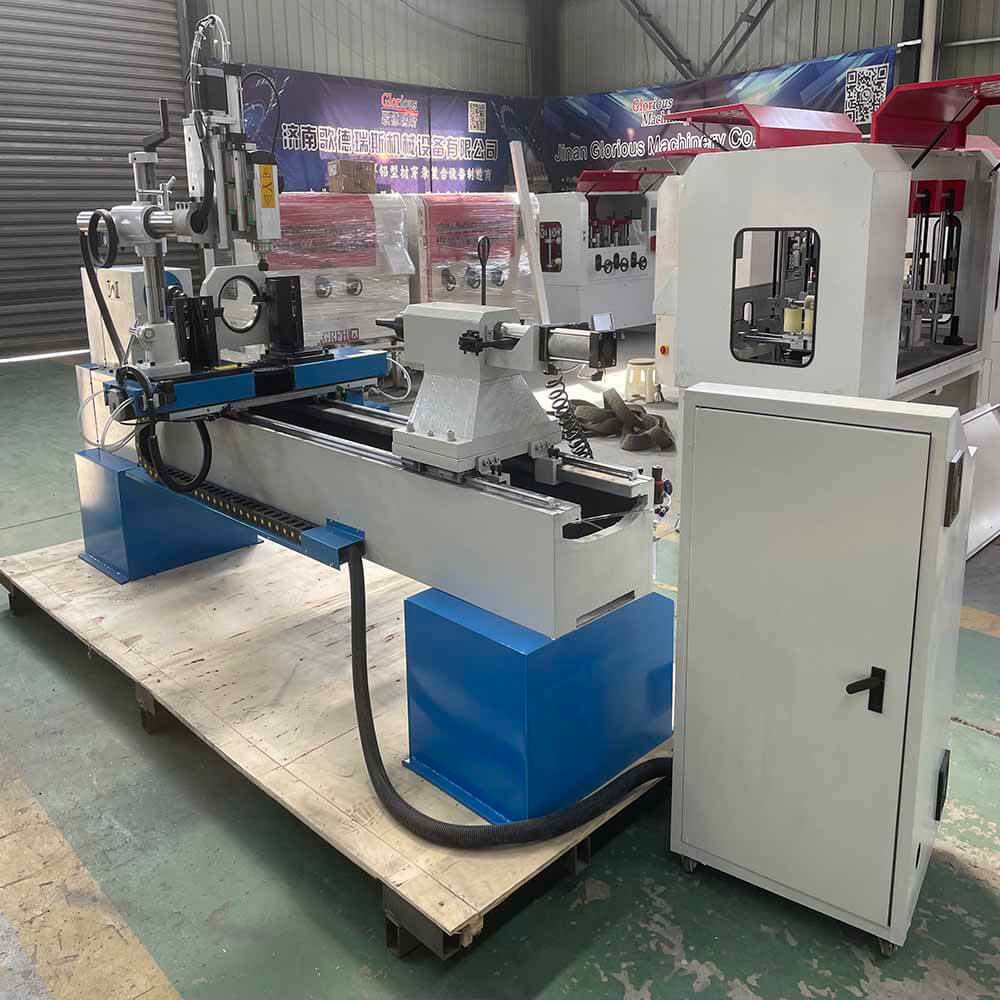

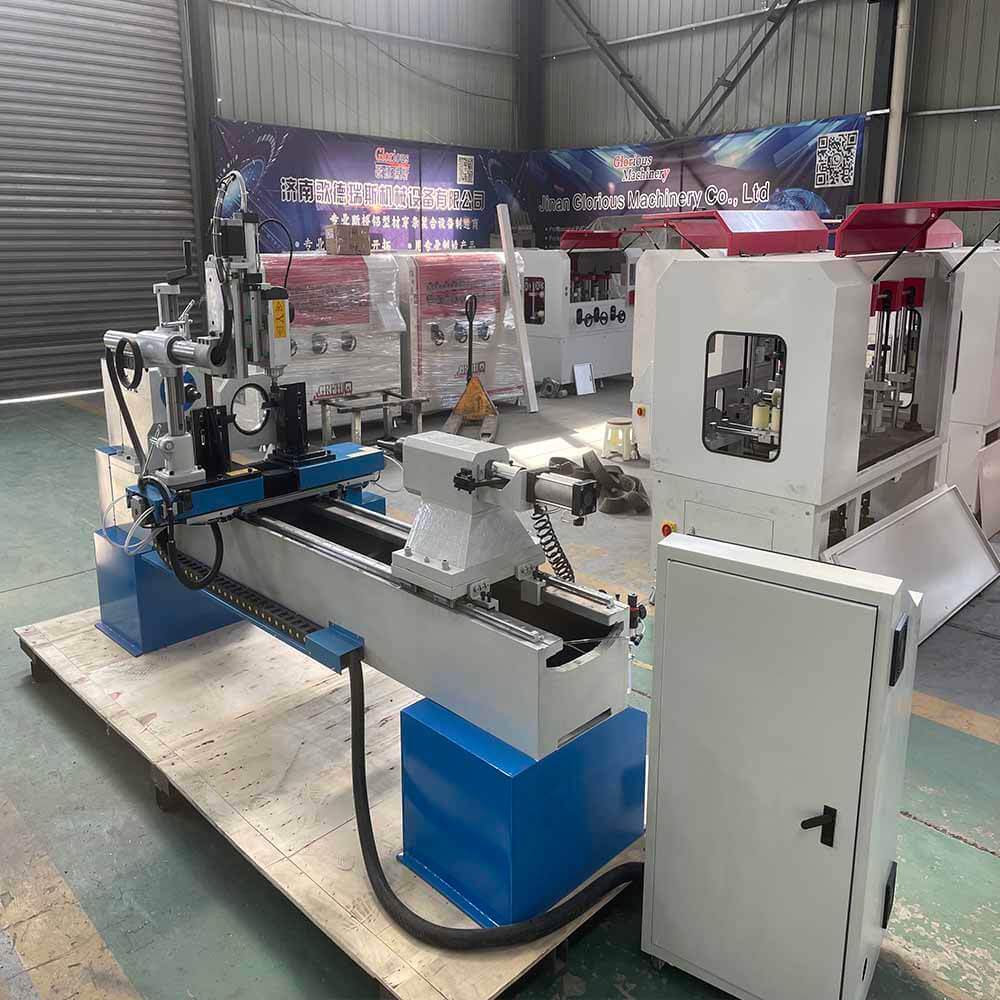

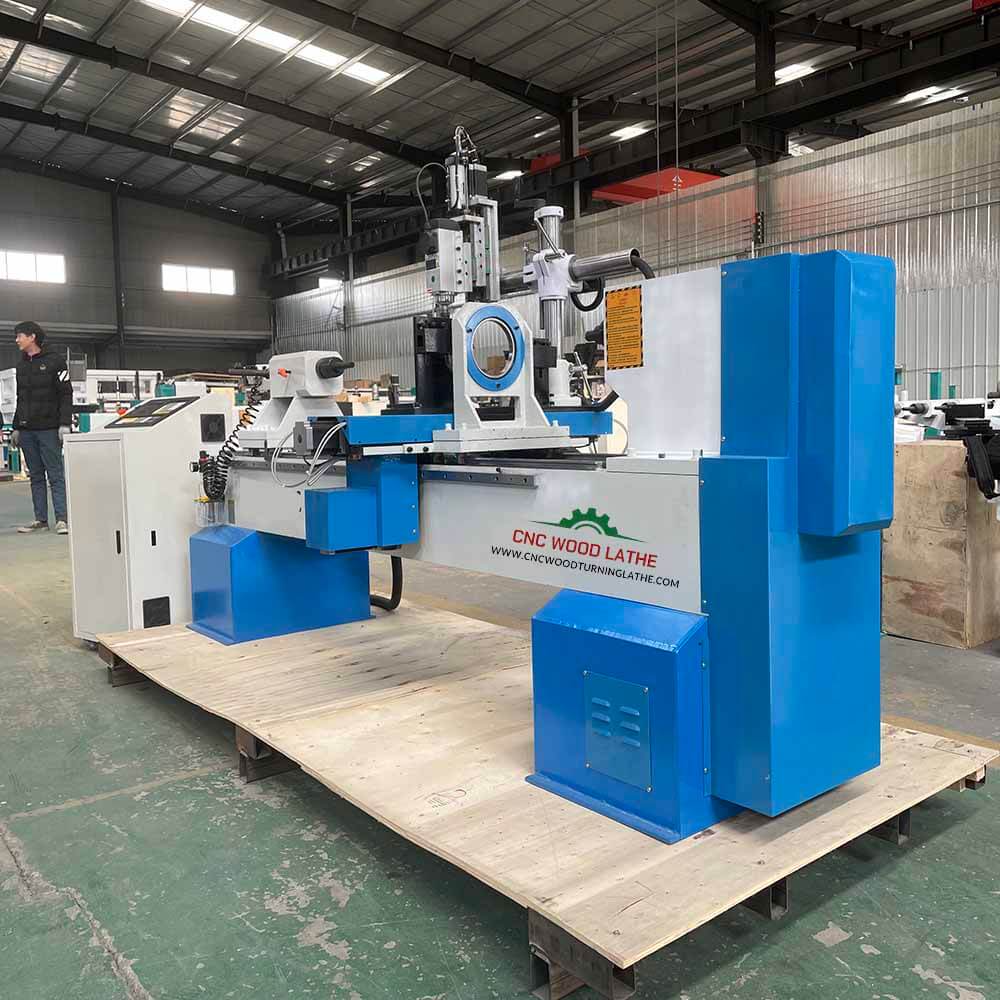

Showcase of CNC Automatic Feed Woodworking Milling Turning Carving Lathe
Pronti a migliorare la vostra tornitura del legno?
Ottieni il tuo personalizzato Soluzione per tornio per legno CNC oggi. Contattaci per prezzi dettagliati e consulenza tecnica
