Industrial CNC Wood Turning Machine Wooden Crafts Table Legs
$16800-$23800
- Model: CT-1220-T6
- Working Size: Dia 120mm, Length 1200mm
- Category: Automatic CNC Wood Lathe
- Löpande teknisk vägledning för både slutkunder och återförsäljare
- Flexibla betalningsmetoder – Säkra betalningar online och offline – PayPal, Alibaba, T/T, kort accepteras
- Internationellt transportnätverk som säkerställer leverans i tid var som helst
- Omfattande ettårsgaranti för komplett enhet med ytterligare skyddsplaner för större delar
Overview of Industrial CNC Wood Turning Machine Wooden Crafts Table Legs
De Industrial CNC Wood Turning Machine is a professional-grade solution designed for crafting high-quality wooden table legs, chair legs, stair spindles, and decorative art pieces. Built with a durable steel frame and advanced CNC control system, it ensures precision, stability, and long-term performance. Equipped with an automatic feeding system and high-speed servo spindle, it delivers efficient production with smooth surface finishes. This machine supports a wide range of materials such as solid wood, bamboo, PVC, and acrylic, making it ideal for furniture makers, woodworking workshops, and craft manufacturers. Its reliable performance and consistent accuracy make it perfect for producing artistic, detailed, and symmetrical wooden components.
Key Features of Industrial CNC Wood Turning Machine Wooden Crafts Table Legs
- The lathe bed is built from welded steel tubing, providing exceptional strength and long-term stability without deformation.
- Designed with flexible adaptability, this CNC machine can process a wide range of wood materials and complex workpieces.
- Equipped with imported Taiwan Hiwin linear square guide rails and precision rack-and-pinion drive for high speed, accuracy, and smooth motion.
- Supports multi-axis coordinated movement, enabling efficient machining of intricate and detailed wooden shapes.
- Ergonomic and modular design allows for easy assembly, disassembly, and convenient transport for workshop or factory use.
Specification of Industrial CNC Wood Turning Machine Wooden Crafts Table Legs
| Beskrivning | Parameter |
|---|---|
| Processing Range | 1200mm (length) × 200mm (diameter) |
| Feeding System | Automatic hopper-type loading system; supports wood blanks with a width × thickness ≤100 × 100mm and length between 80–1200mm |
| Machine Frame | One-piece cast iron body with annealing treatment, reinforced by high-rigidity cast components for excellent stability |
| Kontrollsystem | Xinkerui 4-Axis CNC milling control system |
| Axis Drive System (X, Y, Z, A) | X/Y/Z axes driven by Xinkerui servo motors; A-axis equipped with Alpha servo spindle motor |
| Tool Holder | Pneumatic cylinder-driven double-position tool holder for efficient cutting operations |
| Styrskenor | Precision linear square rails (sizes 25/30) for smooth and accurate motion |
| Ball Screw | High-precision ball screw for superior transmission accuracy and minimal backlash |
| Inverter | Fuling frequency inverter for stable and adjustable speed control |
| Max. Travel Speed (X, Y, Z) | Up to 12 m/min |
| Max. Machining Speed | Up to 10 m/min |

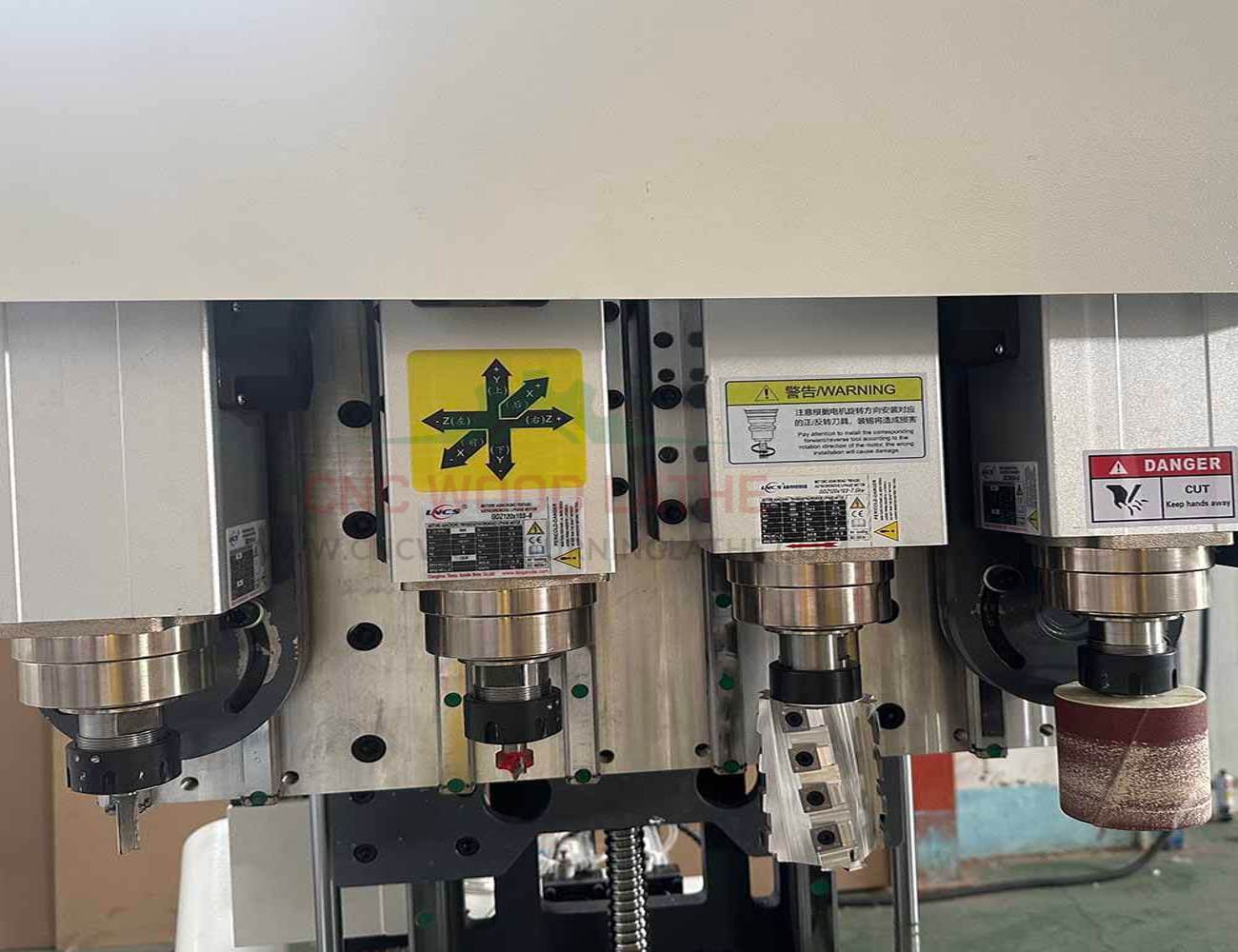

| Spindle Configuration | One 4.0KW servo lathe spindle (6000 rpm); two 4.5KW electric spindles (0–18000 rpm adjustable); one 6KW electric spindle (0–18000 rpm); one 7.5KW electric spindle (0–12000 rpm) |
| Machining Accuracy | ±0.07mm per 200mm |
| Repeat Positioning Accuracy | ±0.06mm |
Applications of Industrial CNC Wood Turning Machine Wooden Crafts Table Legs
Applikationer
This CNC wood turning machine is suitable for processing a wide range of materials including solid wood, PVC, plastic, nylon, acrylic, carbon fiber, bamboo, and MDF (density board).
Applicable Industries:
- Furniture Manufacturing: Ideal for producing table legs, chair legs, sofa legs, bed posts, stair handrails, billiard table legs, and other decorative wooden components.
- Musical Instrument Production: Perfect for crafting drumsticks, flutes, suona, hulusi, bassoons, piano parts, and other precision wooden instruments.
- Sports Equipment: Suitable for machining pool cues, baseball bats, wooden balls, and other wooden sports gear.
- Wooden Crafts: Can be used to create decorative items such as bowls, vases, cups, pen holders, nesting dolls, wooden toys, candlesticks, and art sculptures.
- Carving and Artwork: Excellent for figure carving, animal carving, totem engraving, lettering, and artistic wood engravings.
This CNC wood lathe machine can handle solid wood staircase spindles, table and chair legs, sofa legs, bed legs, pool table legs, cabriole legs, sports and musical instruments, wooden handicrafts, carved furniture accessories, and other complex 3D-shaped products with precision and efficiency.

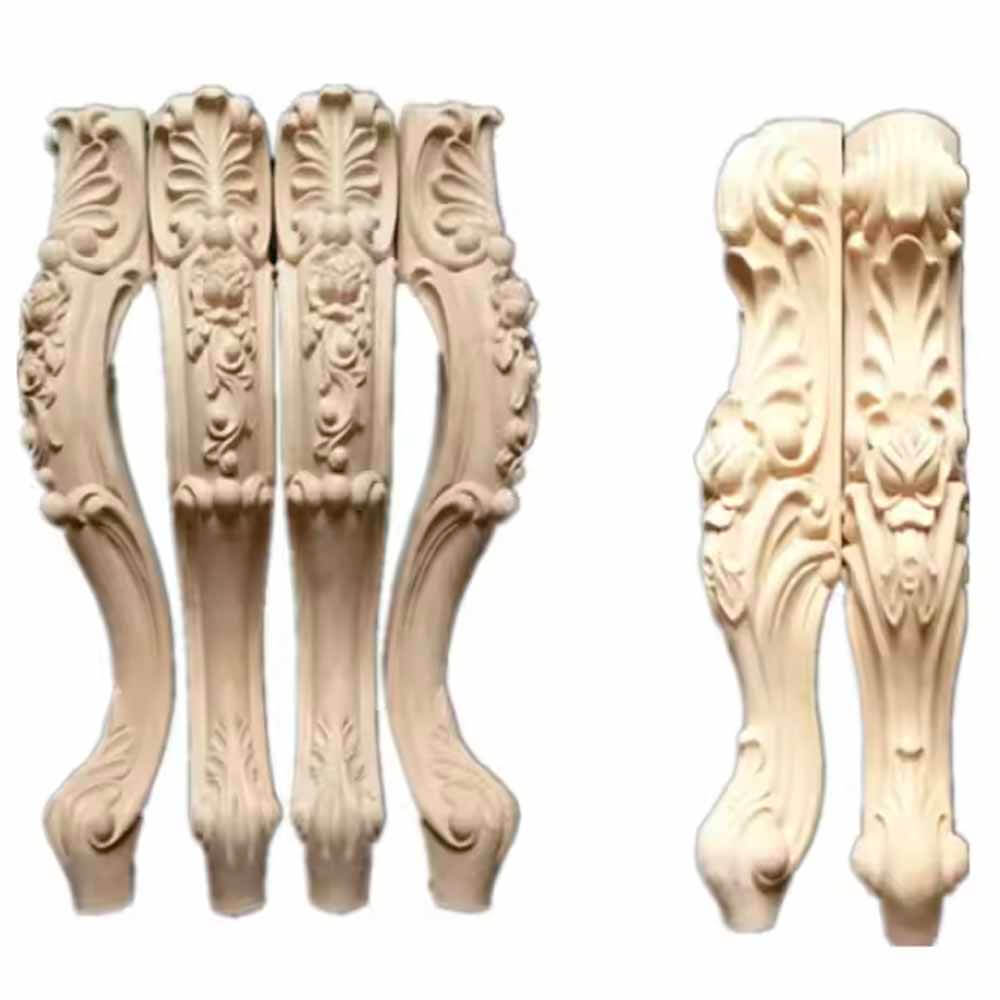

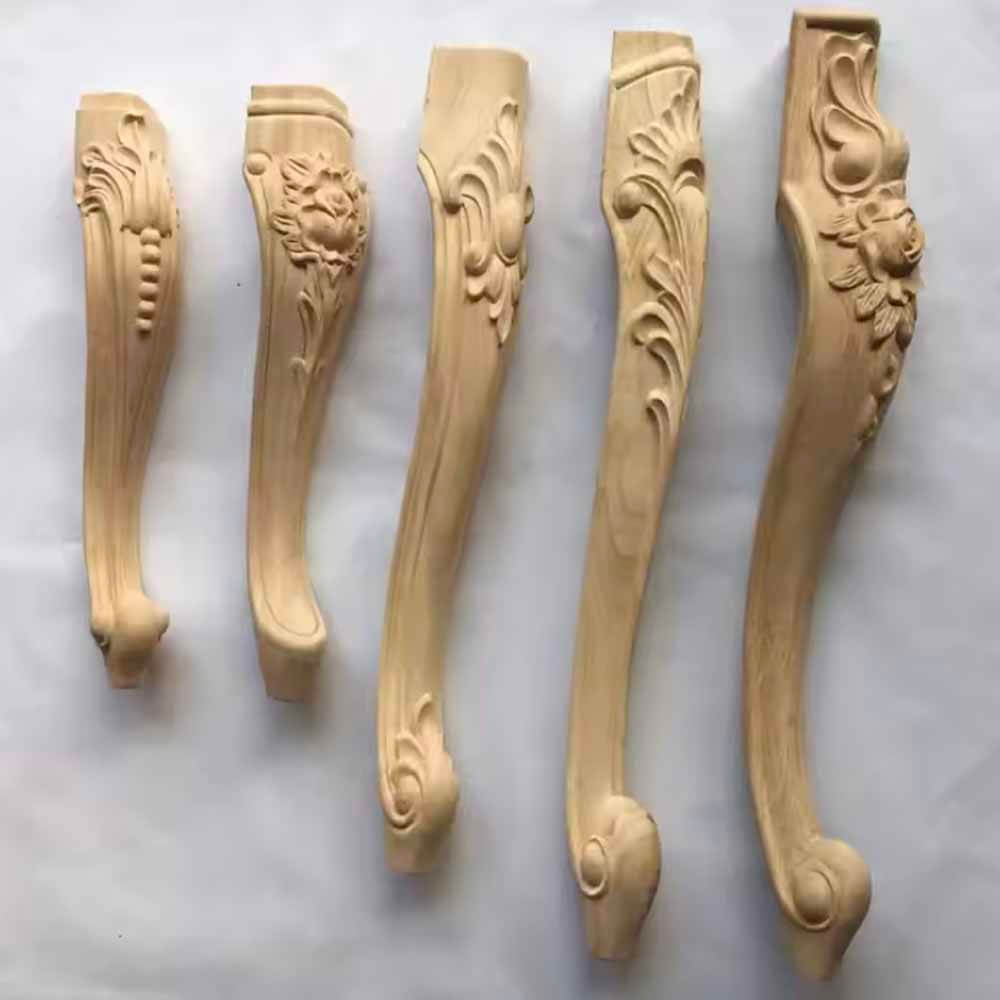

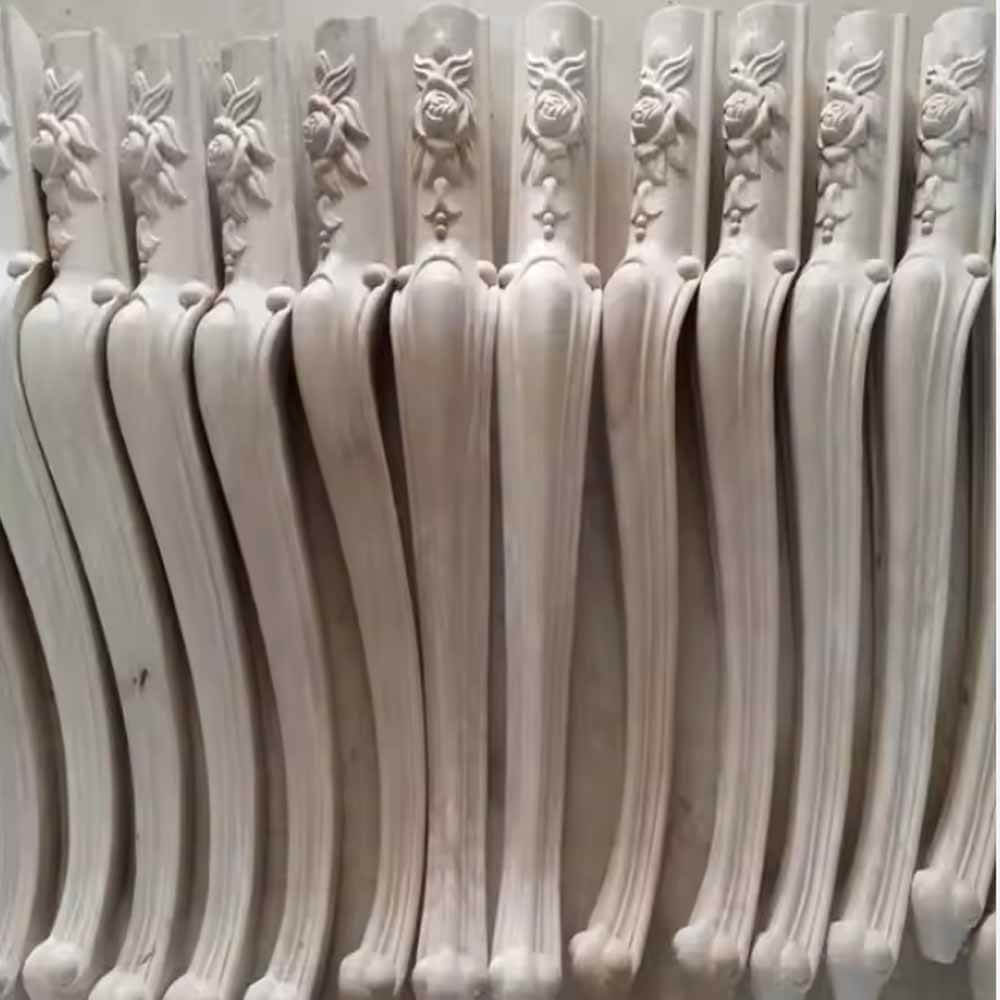

Showcase of Industrial CNC Wood Turning Machine Wooden Crafts Table Legs
Redo att uppgradera din träsvarvning?
Få din anpassade CNC-träsvarvlösning idag. Kontakta oss för detaljerad prissättning och teknisk konsultation
