CT-1530 Stand Size CNC Wood Lathe Machine Wood Lathe
$4200-$9800
- Model: CT-1530
- Working Size: Dia 300mm, Length 1500mm
- Category: Mini CNC Wood Lathe
- Ongoing Technical Guidance for Both End-Clients and Dealers
- Flexible Payment Methods – Secure Payments Online & Offline – PayPal, Alibaba, T/T, Cards Accepted
- International Transport Network Ensuring On-Time Delivery Anywhere
- Comprehensive One-Year Warranty for Complete Unit with Additional Protection Plans for Major Parts

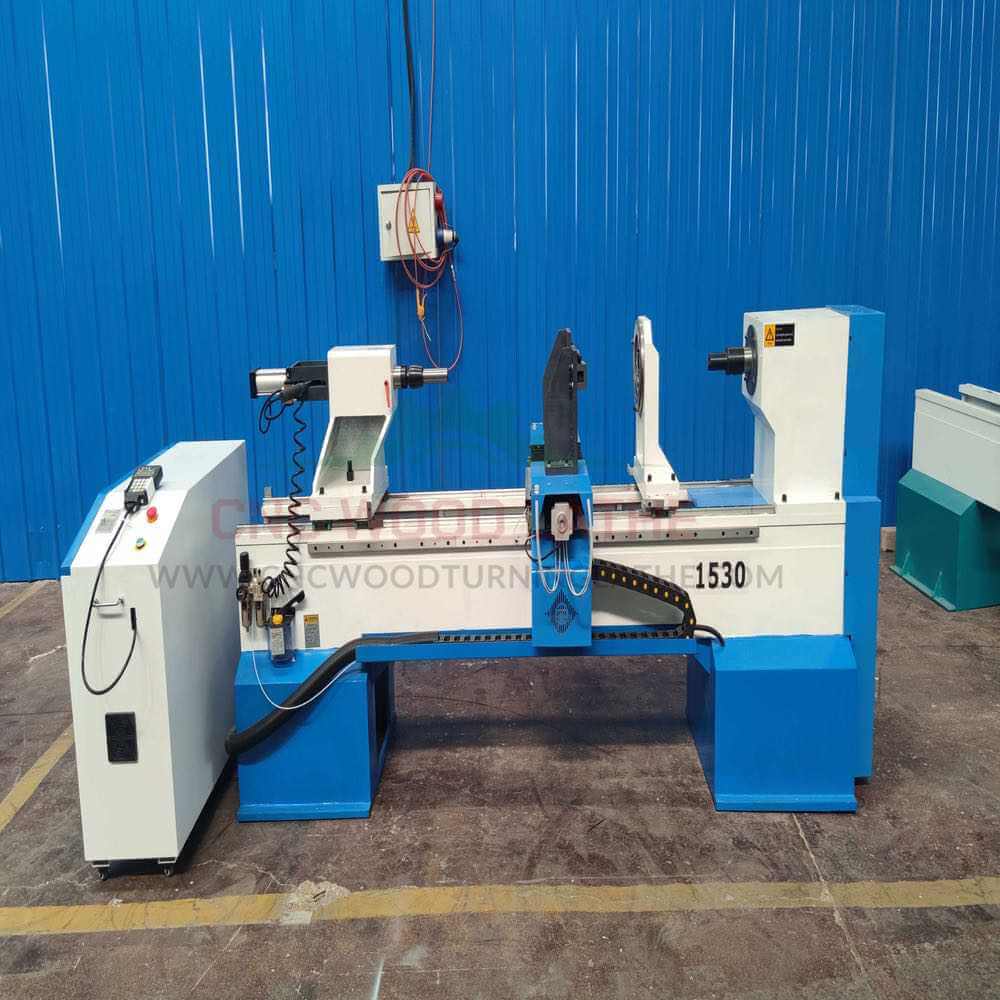

Product Overview of CT-1530 Stand Size CNC Wood Lathe Machine Wood Lathe
The CT-1530 Standard Size CNC Wood Lathe Machine is a high-precision and heavy-duty woodturning solution designed for producing cylindrical, tubular, and complex wooden workpieces with exceptional accuracy and efficiency. Featuring a robust cast iron bed, Taiwan TBI ball screws, and Hiwin square guide rails, it offers excellent stability and long-term durability. With a maximum turning diameter of 300 mm and processing lengths of 1500 mm, 2000 mm, or 2500 mm, it is ideal for crafting stair columns, balusters, table legs, chair components, vases, baseball bats, and various decorative or functional wood products. Equipped with powerful stepper motors, Yako drivers, and dual cutters for roughing and finishing, the CT-1530 ensures fast, smooth, and high-quality turning. Its user-friendly control system supports CAD software and .dxf file transfers via USB, making it perfect for both mass production and custom woodworking applications.
Key Features of CT-1530 Stand Size CNC Wood Lathe Machine Wood Lathe
- Large Turning Capacity: Supports a maximum turning diameter of 300 mm with processing lengths available in 1500 mm, 2000 mm, or 2500 mm, suitable for various woodturning applications.
- Heavy-Duty Cast Iron Bed: The lathe bed is made entirely of cast iron and undergoes high-temperature annealing and vibration stress relief treatment, ensuring long-term structural stability without deformation.
- High-Precision Transmission: Equipped with Taiwan TBI ball screws and Taiwan Hiwin square linear guideways, offering exceptional accuracy and an extended service life.
- Powerful Drive System: Features high-torque stepper motors paired with Yako drivers, enabling high-speed and smooth wood turning.

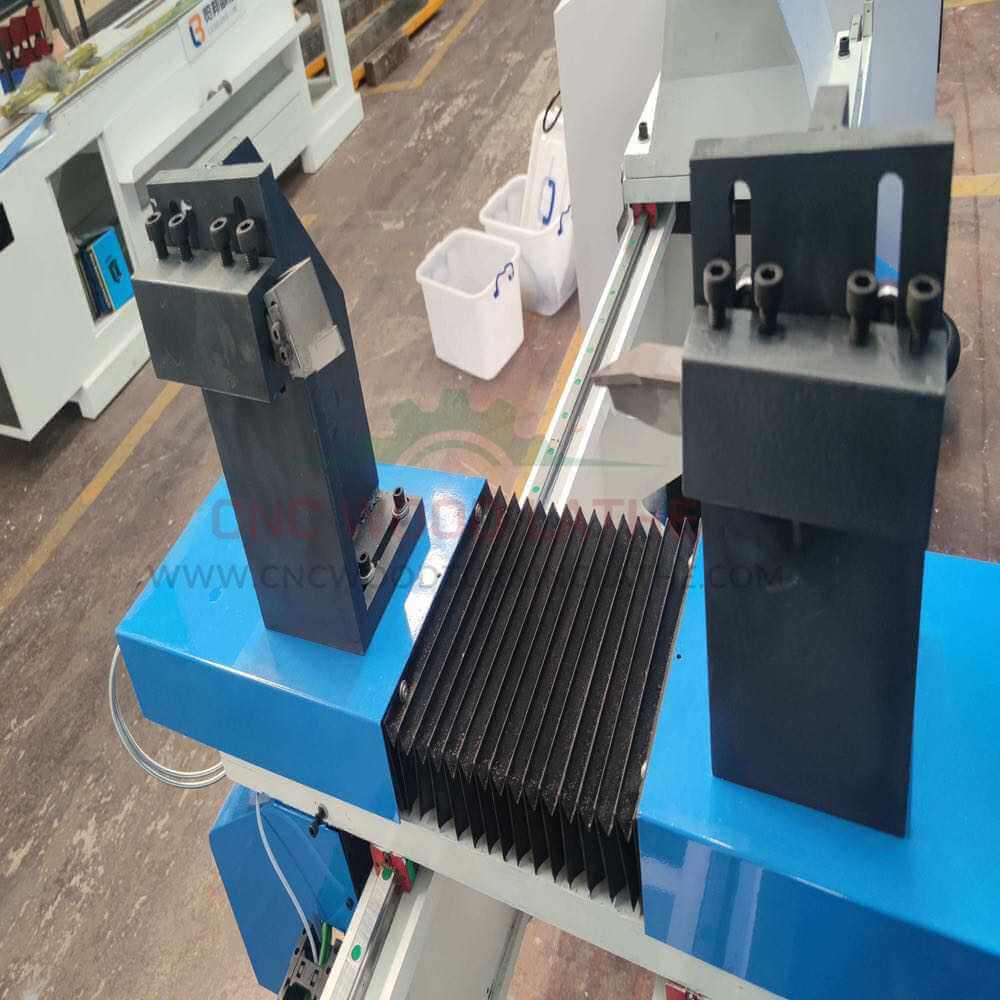

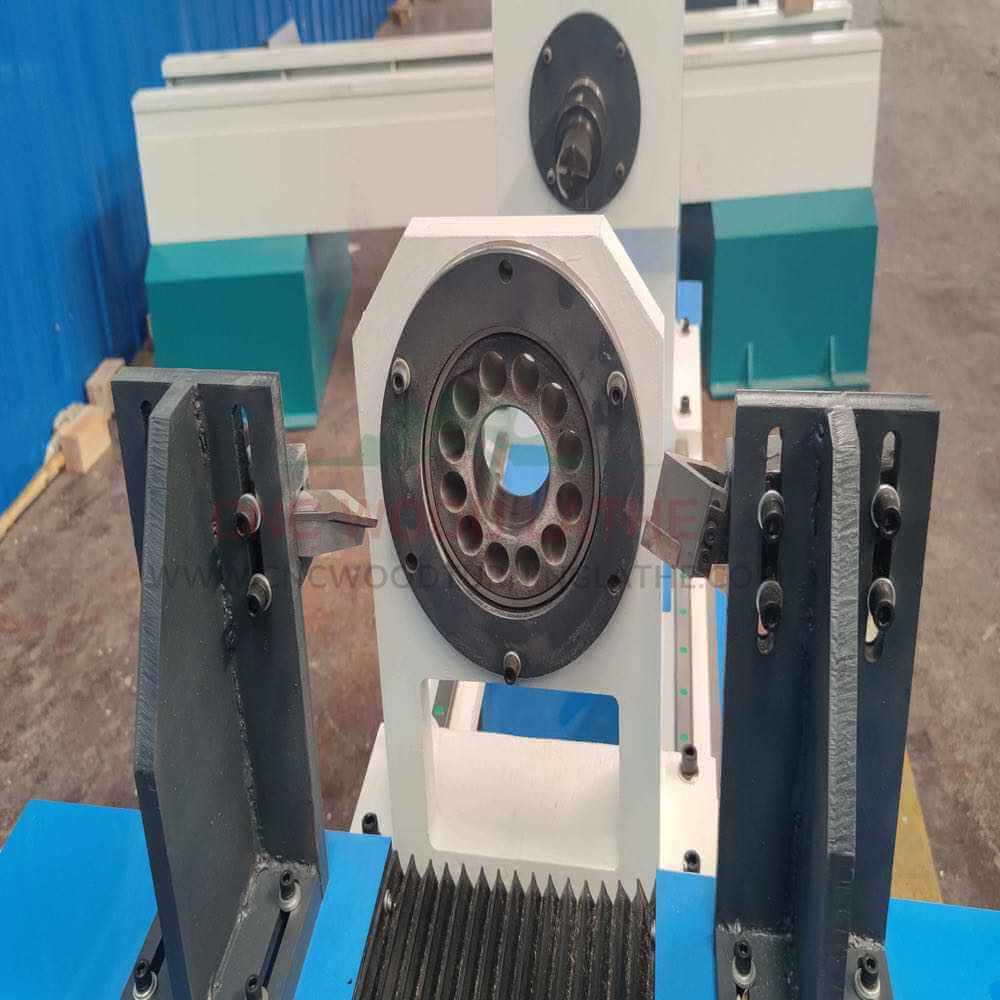

- Dual-Cutter Design: The machine includes two cutting tools—one for rough shaping and one for finish turning—positioned on both sides. These operate synchronously in layered steps, significantly boosting productivity and improving the surface finish of the workpiece.
- User-Friendly Control: Simple to operate, with CAD file compatibility. Users can import .dxf files directly via USB, streamlining the workflow from design to production.
Specification of CT-1530 Stand Size CNC Wood Lathe Machine Wood Lathe
| Item | Specification |
|---|---|
| Max. Machining Diameter | 300 mm |
| Max. Processing Length | 1500 mm |
| Main Motor Power | 5.5 kW, 3-phase |
| Machine Functions | Turning and Cutting |
| Max. Feed Speed | 35 mm/s |
| Spindle Speed | 0 – 3500 rpm |
| Accuracy | 0.001 mm |
| Machine Structure | Heavy cast iron base with large welded square steel frame |
| Inverter | Fuling or premium inverter |
| Axis Drive Motors | 450C Stepper motors |
| Motor Drivers | Yako 2D811 |
| Transmission System | Y-axis: Rack & Pinion; X & Z axes: Taiwan TBI ball screws |
| Guide Rails | Taiwan Hiwin square linear guideways |

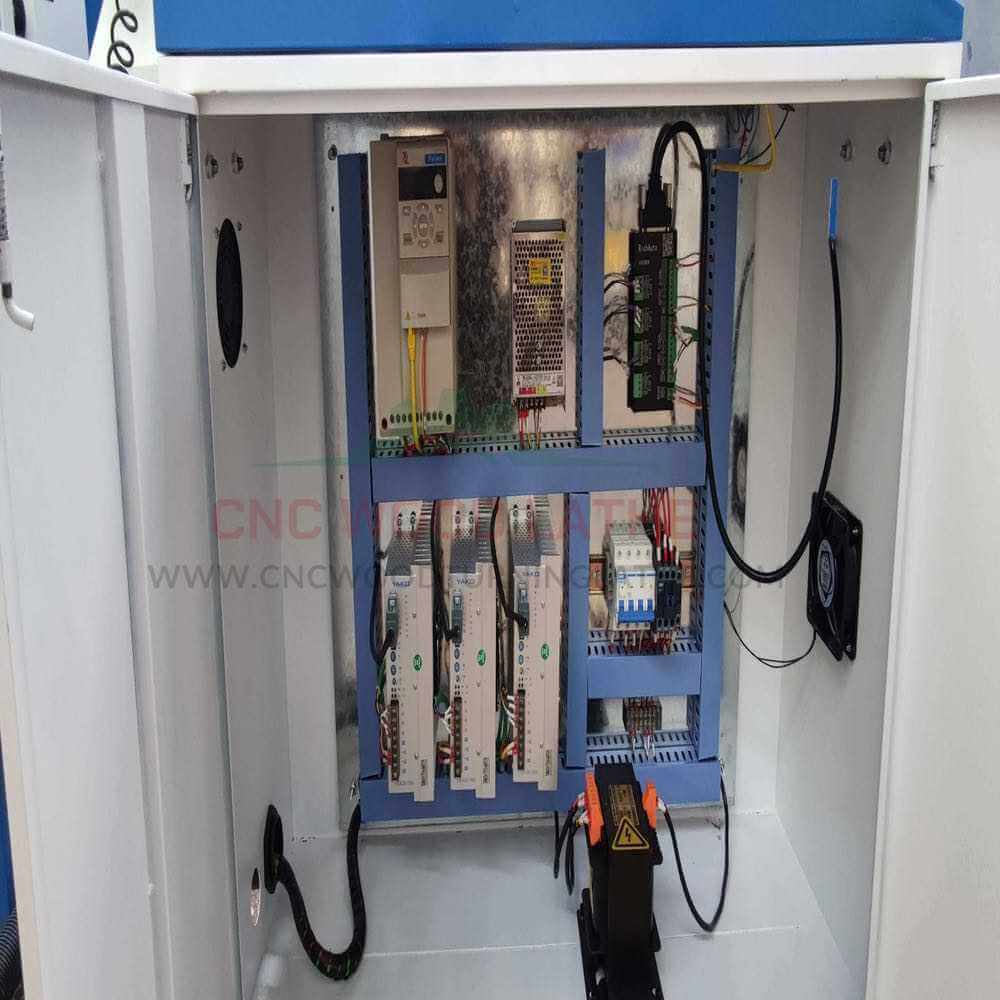

| Control Cabinet | Independent cabinet design |
| Lubrication System | Manual lubrication |
| Control System | DSP or CT controller |
| Supported Commands | G Code |
| Compatible Software | AutoCAD, CorelDRAW, ArtCAM, Type3, Ucancam, CAXA, UG, Mastercam |
| Power Supply | 380V / 50Hz, 3-phase (customizable) |
| Machine Dimensions | 3750 × 1300 × 1400 mm |
| Packing Dimensions | 3900 × 1100 × 1600 mm |
| Net Weight | 2300 kg |
| Gross Weight | 2400 kg |

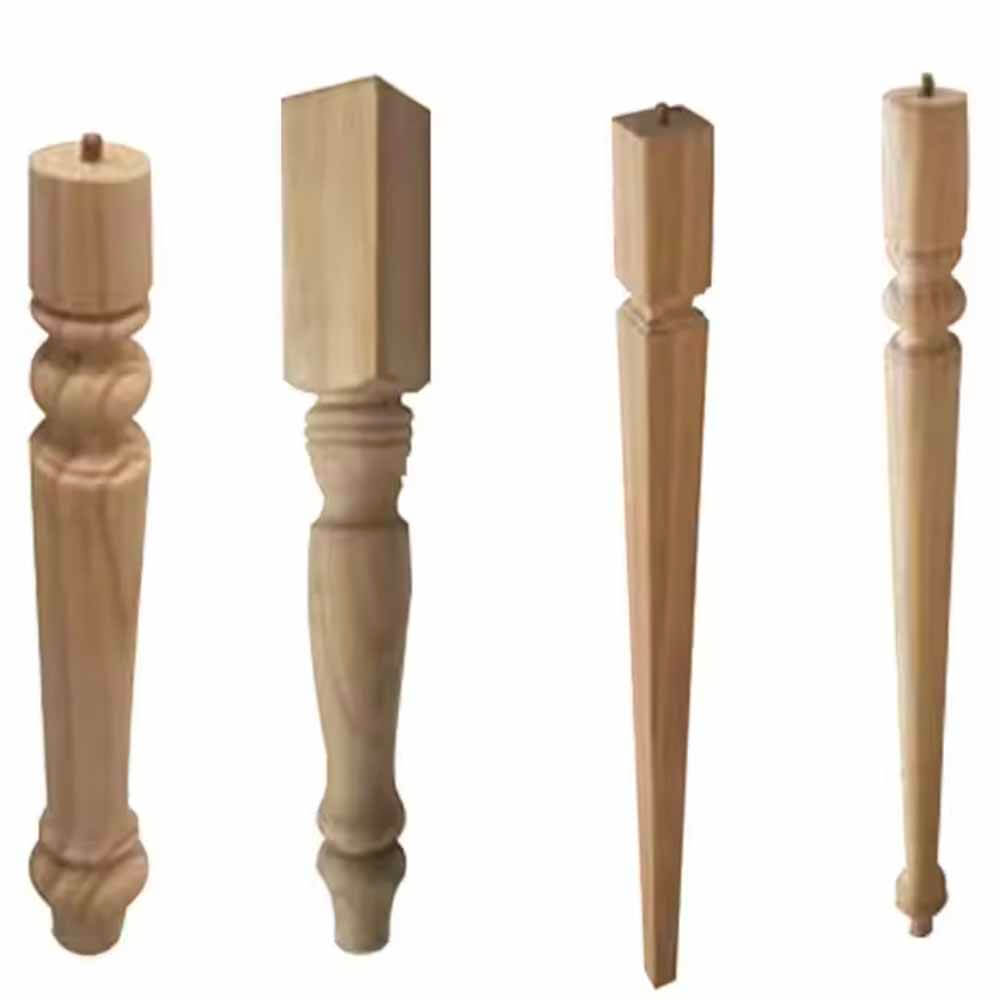

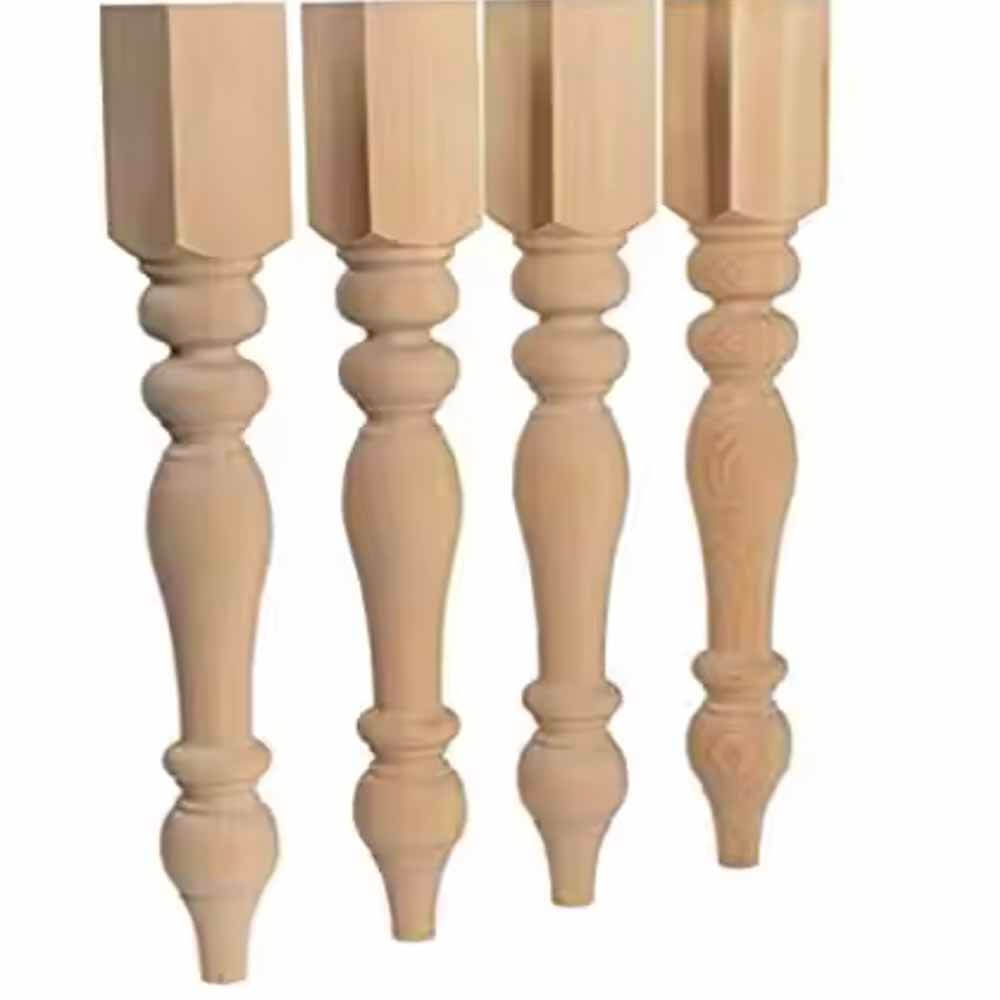

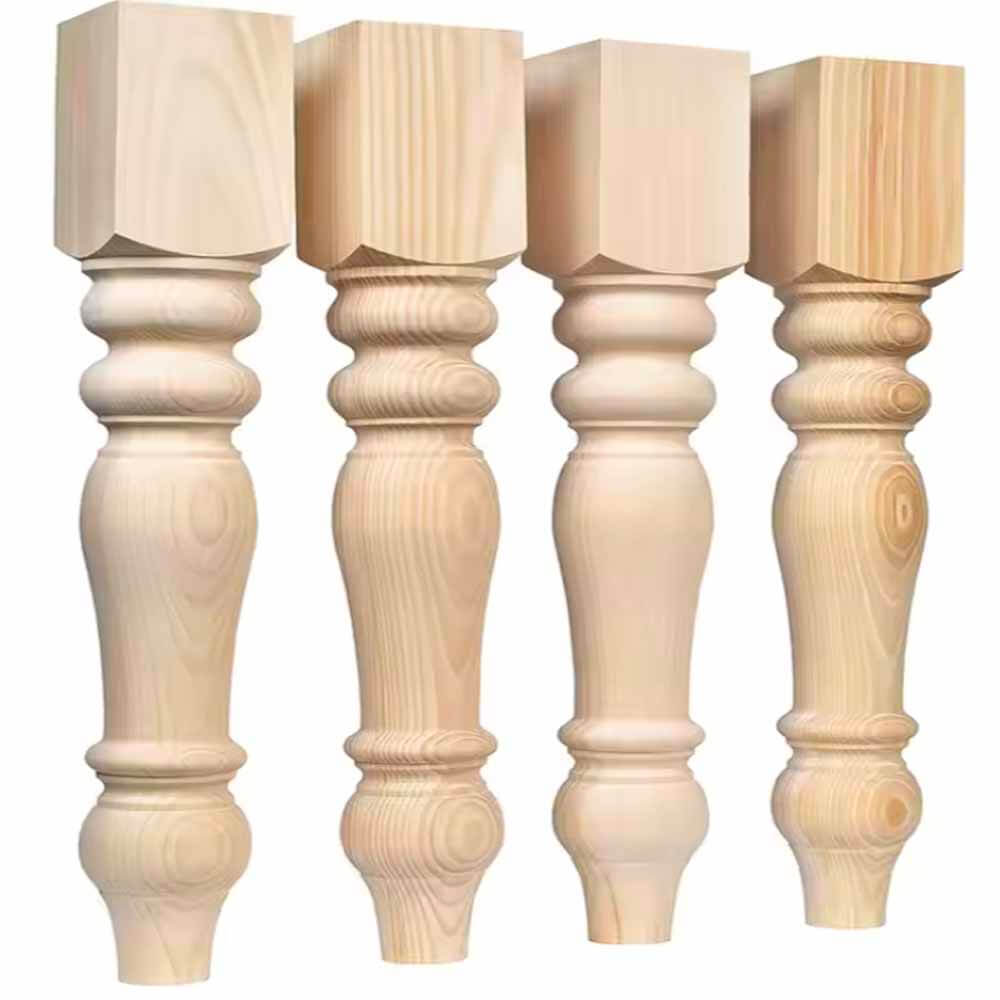

Applications of CT-1530 Stand Size CNC Wood Lathe Machine Wood Lathe

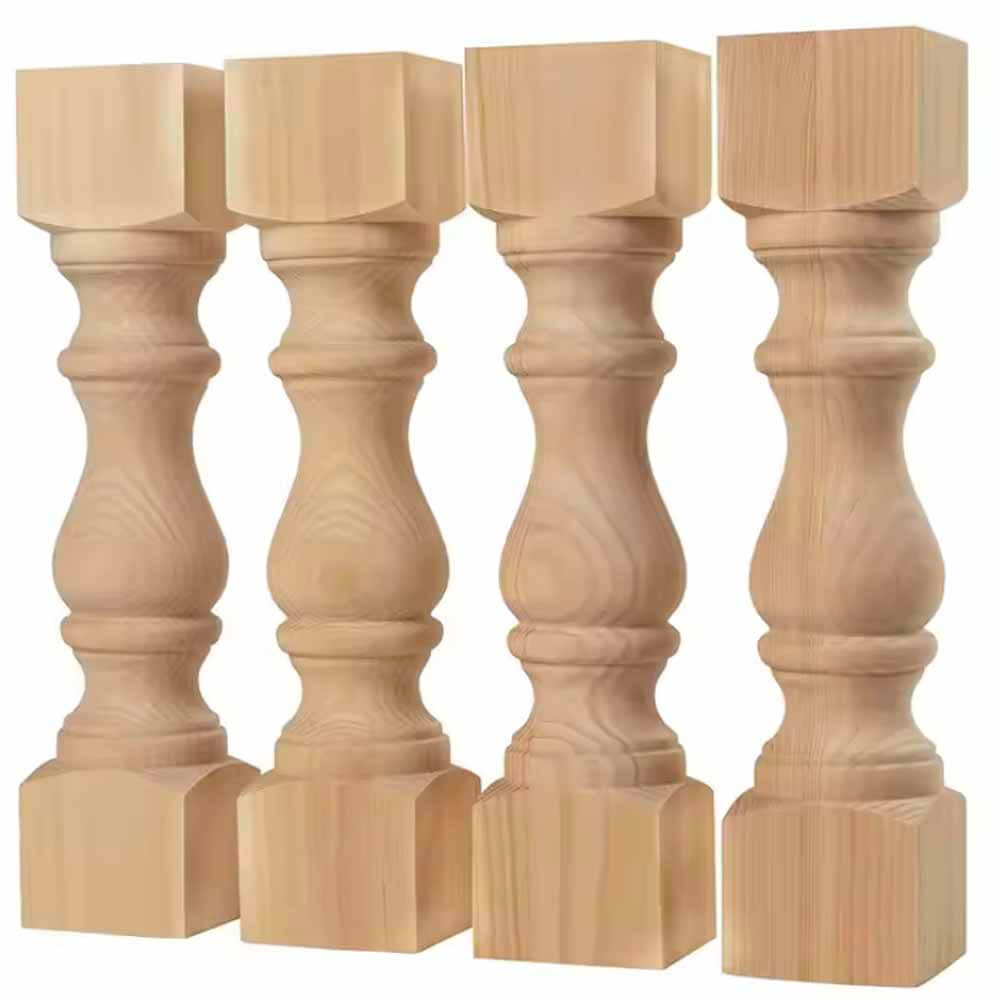

This machine is extensively used for processing a wide range of cylindrical, tubular, and bowl-shaped wooden workpieces, as well as various decorative and functional wood products. Typical applications include staircase columns, balusters, newel posts, dining and side table legs, sofa and bar stool legs, Roman-style pillars, standard columns, washstands, wooden vases, table components, baseball bats, automotive wooden parts, children’s bed posts, chair arms and stretchers, sofa feet, bed rails, lamp stands, and many other turned wooden crafts.

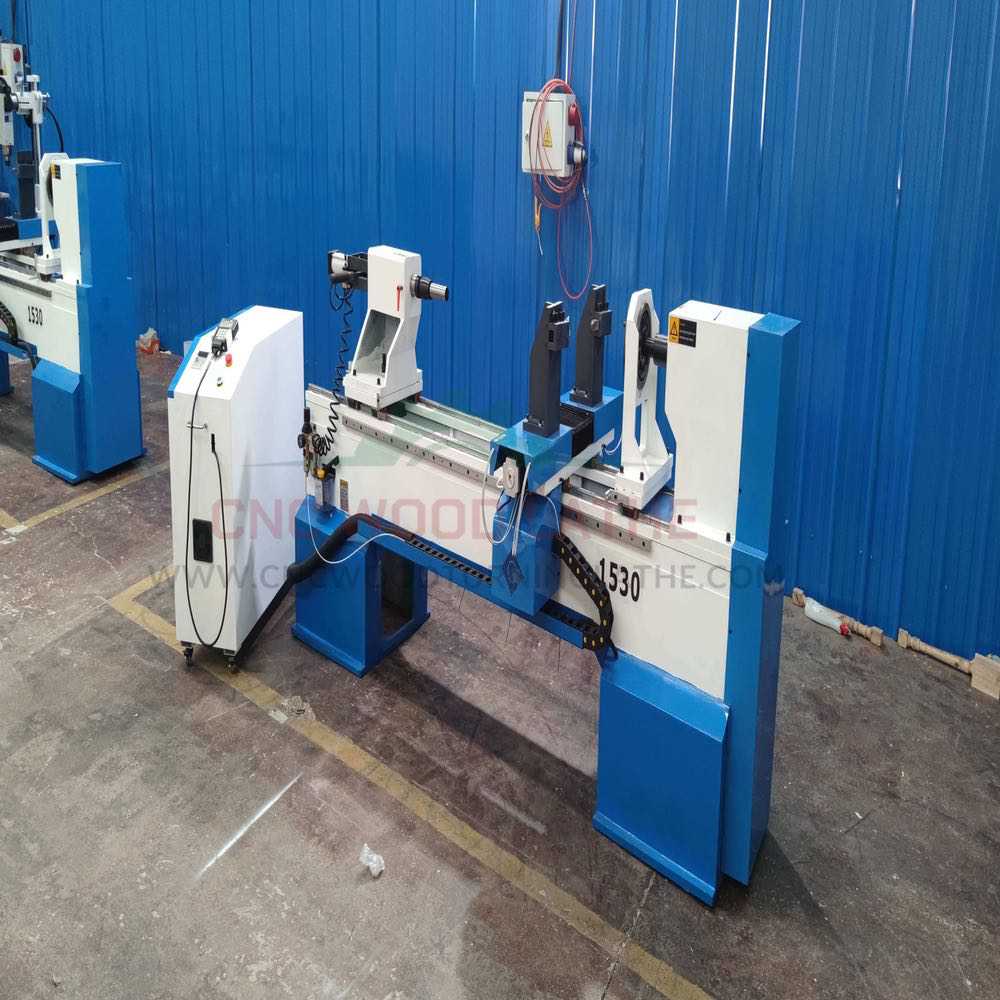

Product Showcase of CT-1530 Stand Size CNC Wood Lathe Machine Wood Lathe
Ready to Upgrade Your Wood Turning?
Get your customized CNC wood lathe solution today. Contact us for detailed pricing and technical consultation
