CT-1530-4S Single Axis CNC Wood Lathe with Engraving Spindle
$5800-$10800
- Modelo: CT-1530
- Tamaño de trabajo: diámetro 300 mm, longitud 1500 mm
- Categoría: Mini torno CNC para madera
- Orientación técnica continua para clientes finales y distribuidores
- Métodos de pago flexibles: pagos seguros en línea y fuera de línea: PayPal, Alibaba, transferencia bancaria y tarjetas aceptadas.
- Red de transporte internacional que garantiza entregas puntuales en cualquier lugar
- Garantía integral de un año para la unidad completa con planes de protección adicionales para las piezas principales
Product Overview of CT-1530-4S Single Axis CNC Wood Lathe with Engraving Spindle
El CT-1530-4S Single Axis CNC Wood Lathe with Engraving Spindle is a precision woodworking machine designed for turning, carving, and engraving various wood components such as table legs, stair spindles, vases, and decorative furniture parts. Built with a heavy-duty cast iron frame treated for stability and deformation resistance, it ensures high accuracy and long service life. Equipped with a DSP handheld control system and USB connection, it allows easy operation and complete offline work. The machine adopts German ball screws and Taiwan Hiwin square guide rails for smooth, precise motion, while the adjustable spindle speed inverter ensures efficient performance across different materials. Combining turning, broaching, and engraving functions, the CT-1530-4S delivers excellent productivity, precision, and versatility for professional woodworking applications.
Key Features of CT-1530-4S Single Axis CNC Wood Lathe with Engraving Spindle
- The entire machine body is made of heavy-duty cast iron, treated with high-temperature annealing and vibration stress relief, ensuring excellent stability and no deformation. With a total weight of up to 1600 kg, it guarantees long-lasting accuracy and rigidity.
- Specifically designed for wood turning and cylindrical engraving, perfect for making table legs, stair spindles, banisters, wooden bowls, and other decorative wood items.
- Equipped with an advanced handheld DSP control system with a USB interface, allowing easy and efficient operation without requiring a computer connection.
- Uses German precision ball screws y Taiwan Hiwin helical square guide rails for smooth motion, high accuracy, and extended service life.
- Fully compatible with popular CAD/CAM design software such as Type3, ArtCAM, and other wood design programs for easy file import.
- El spindle speed is adjustable through an inverter, with real-time speed display on the control panel for convenient monitoring.
- Supports one-time tool calibration to complete the entire workpiece, reducing setup time and improving productivity.
- Capable of performing turning, grooving, and engraving operations on a single machine at high rotational speed, achieving efficient and detailed wood processing.
Specification of CT-1530-4S Single Axis CNC Wood Lathe with Engraving Spindle
| Artículo | Parámetro |
|---|---|
| Modelo | CNC1530 |
| Max Processing Size | 1500 × 300 mm |
| Spindle Power | 4 kW Air-Cooled Spindle |
| Spindle Quantity | 1 |
| Tool Quantity | 2 |
| Max Feed Speed | 35 mm/s |
| Power System | CVT (Continuously Variable Transmission) |
| Machining Accuracy | 0.001 mm |
| Transmission System | Linear Guide Rail and TBI Ball Screw |
| Velocidad del husillo | 0–2800 rpm/min |
| Supported Command | Código G |
| Voltage | AC 380V / 50Hz |
| Machine Dimension | 2750 × 1200 × 1300 mm |
| Peso de la máquina | 1500 kg |
| Sistema de control | GuangXing CNC Controller, 16×9 cm PLC / DSP Optional |
| Compatible Software | CorelDRAW, ArtCAM, Type3, Ucancam, CAXA, UG, Mastercam, AutoCAD |
| Main Functions | Turning, grooving, twisting, spiral carving, line engraving, and round carving |
| Aplicaciones | Staircase columns, table and chair legs, headboards, cylindrical, conical, curved, and spherical wooden parts |
Applications of CT-1530-4S Single Axis CNC Wood Lathe with Engraving Spindle
This CNC wood lathe is specially designed for precision wood cutting, turning, engraving, and milling. It enables multi-axis coordination between the longitudinal and horizontal axes, allowing smooth processing of complex rotary shapes with excellent stability and high cutting efficiency. The machine is widely used for producing staircase balusters, furniture legs, Roman columns, wooden vases, coat racks, washbasin stands, and European-style furniture components.
It is suitable for shaping cylindrical, conical, curved, arc, and spherical wooden parts or semi-finished wood products. Ideal for woodworking factories, furniture workshops, and decorative craft production, this CNC wood lathe delivers consistent accuracy and a fine surface finish for a wide range of rotationally symmetrical wooden items.

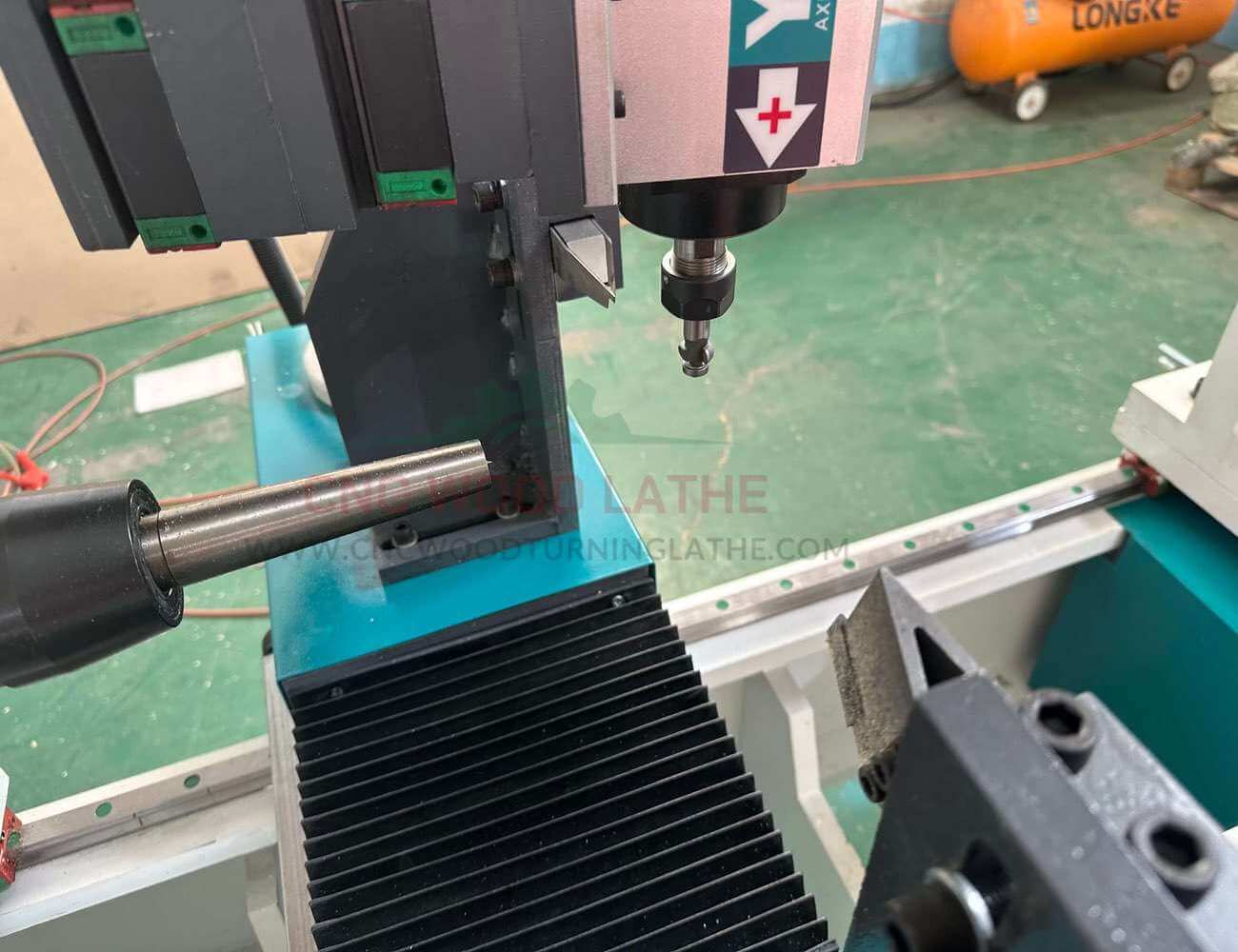

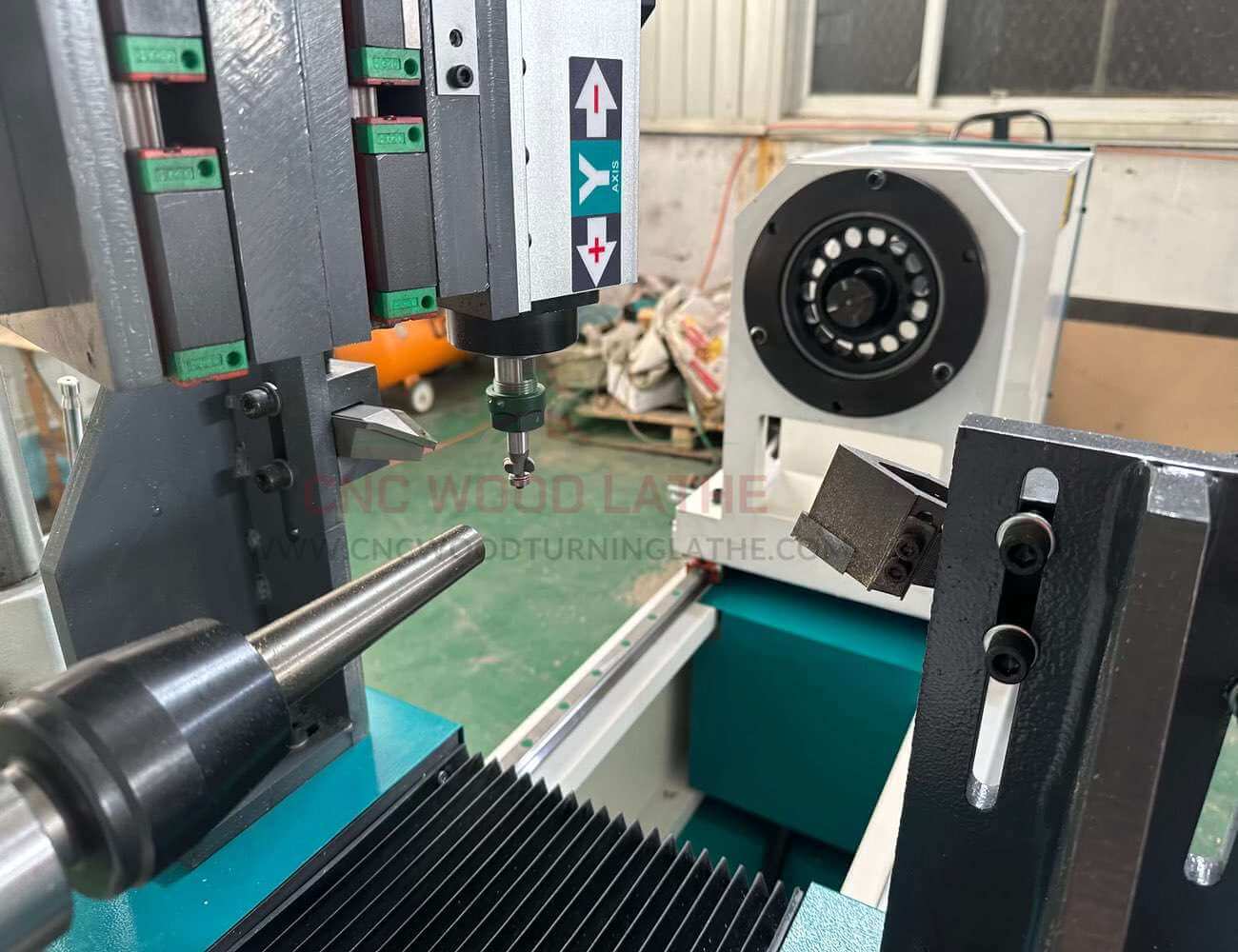

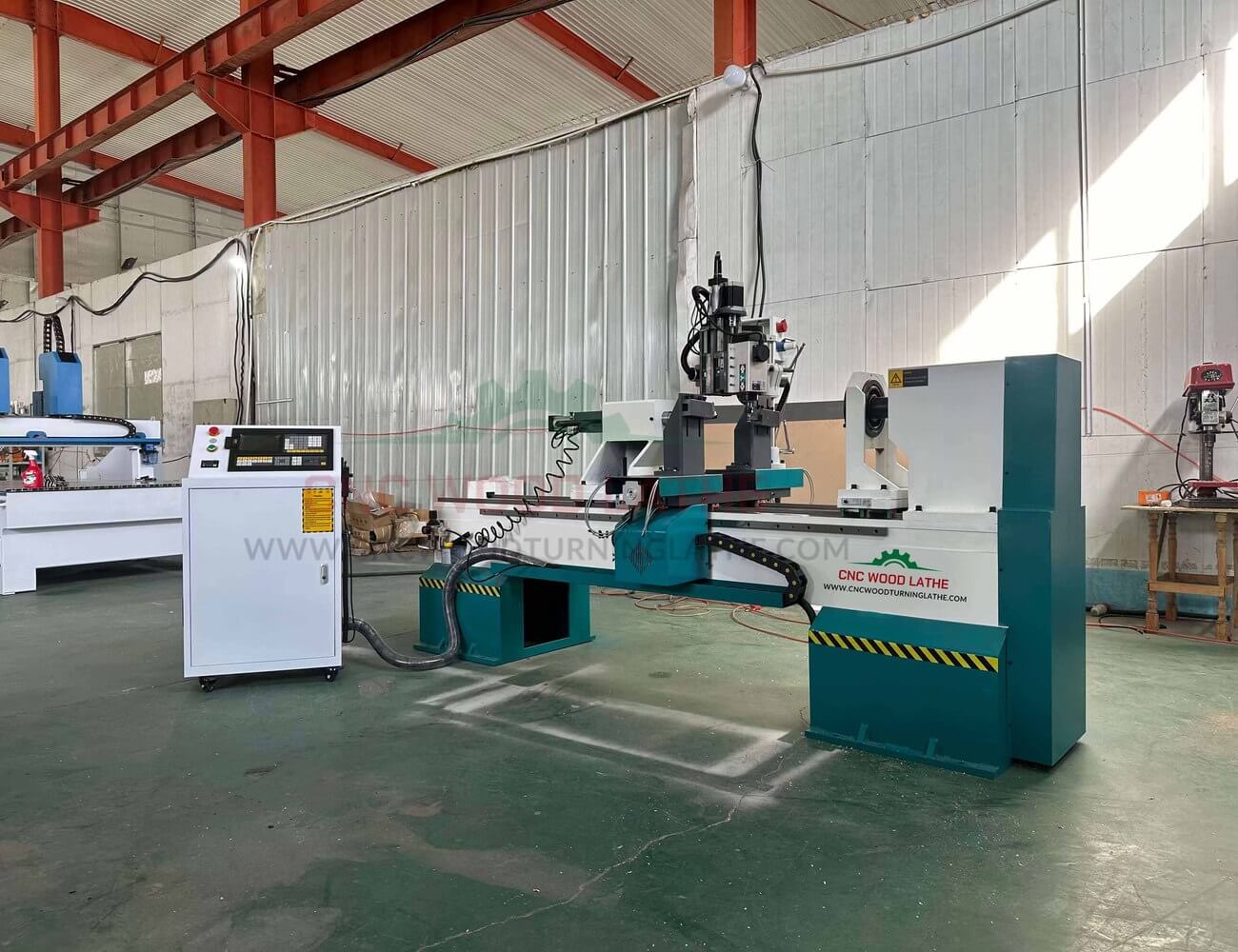

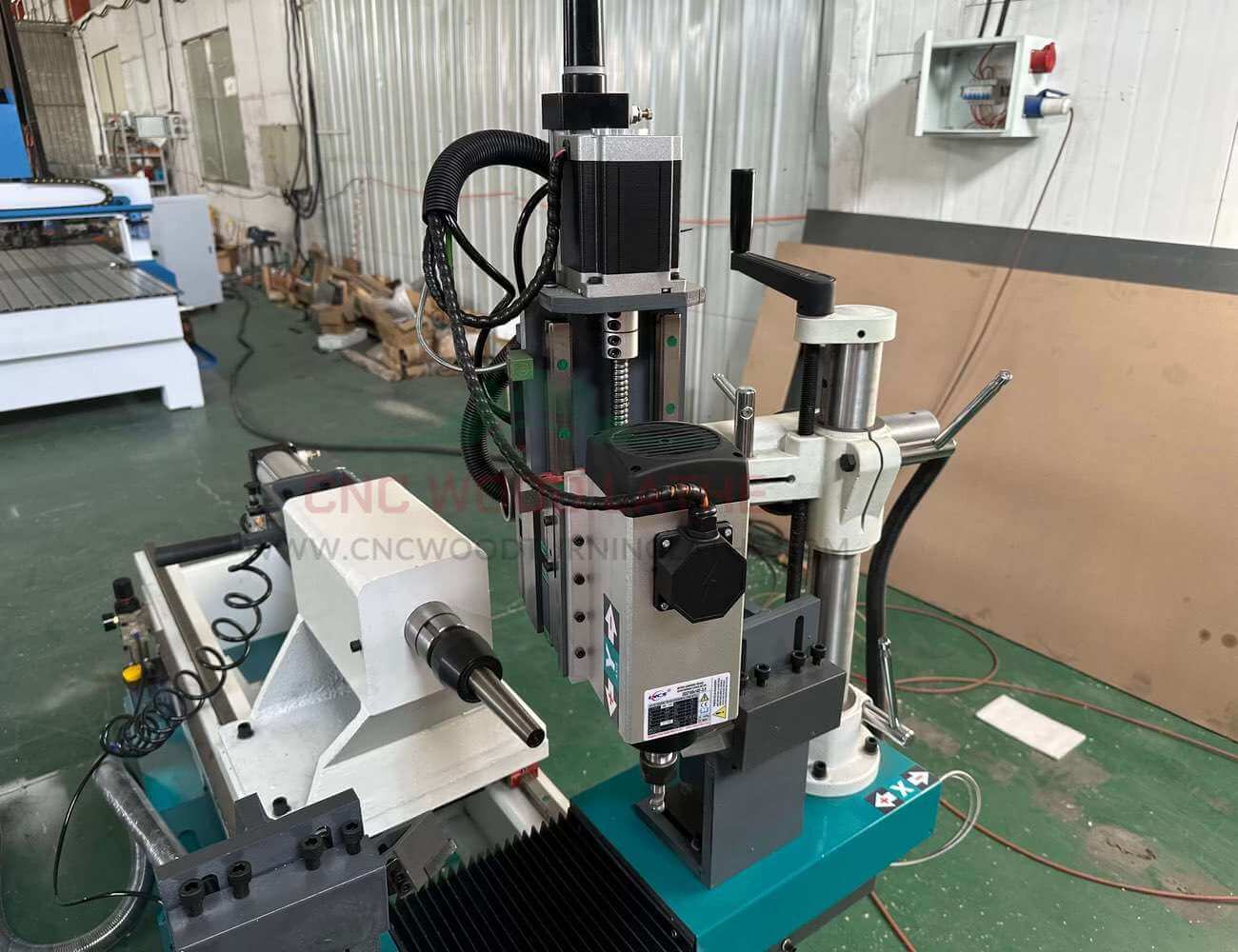

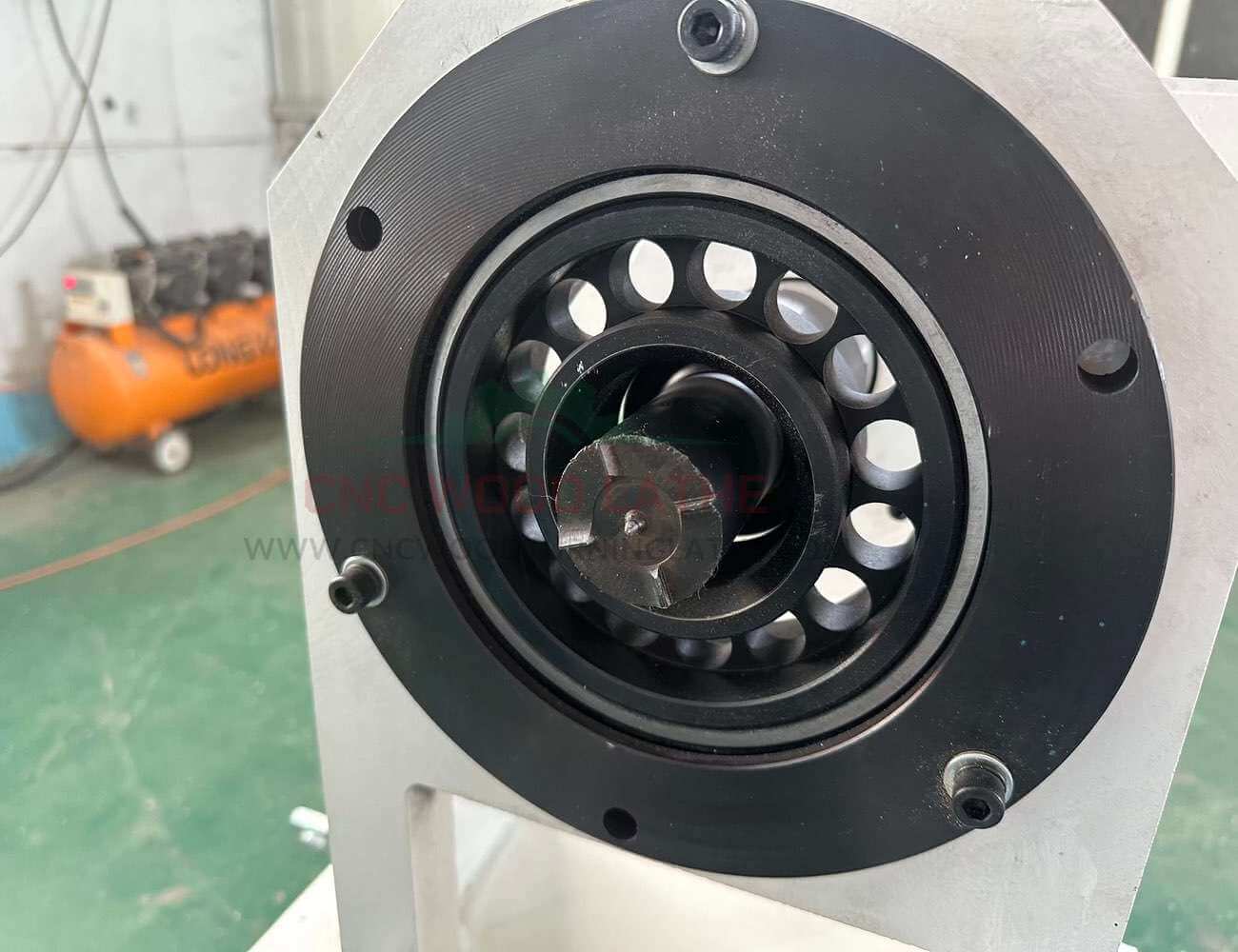

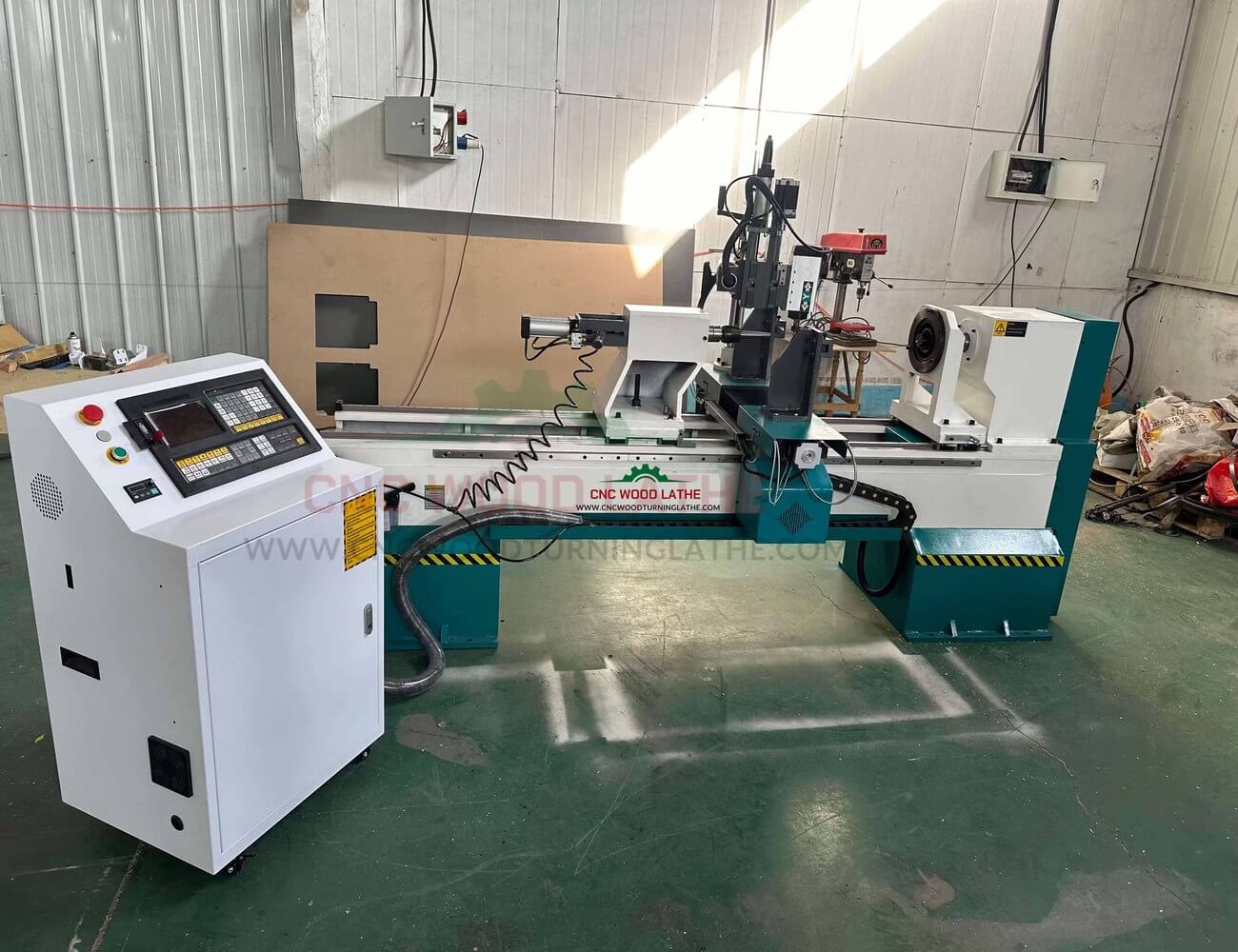

Product Show of CT-1530-4S Single Axis CNC Wood Lathe with Engraving Spindle
¿Está listo para mejorar su torneado de madera?
Consigue tu personalizado Solución de torno de madera CNC Contáctenos hoy mismo para obtener información detallada sobre precios y asesoramiento técnico.
