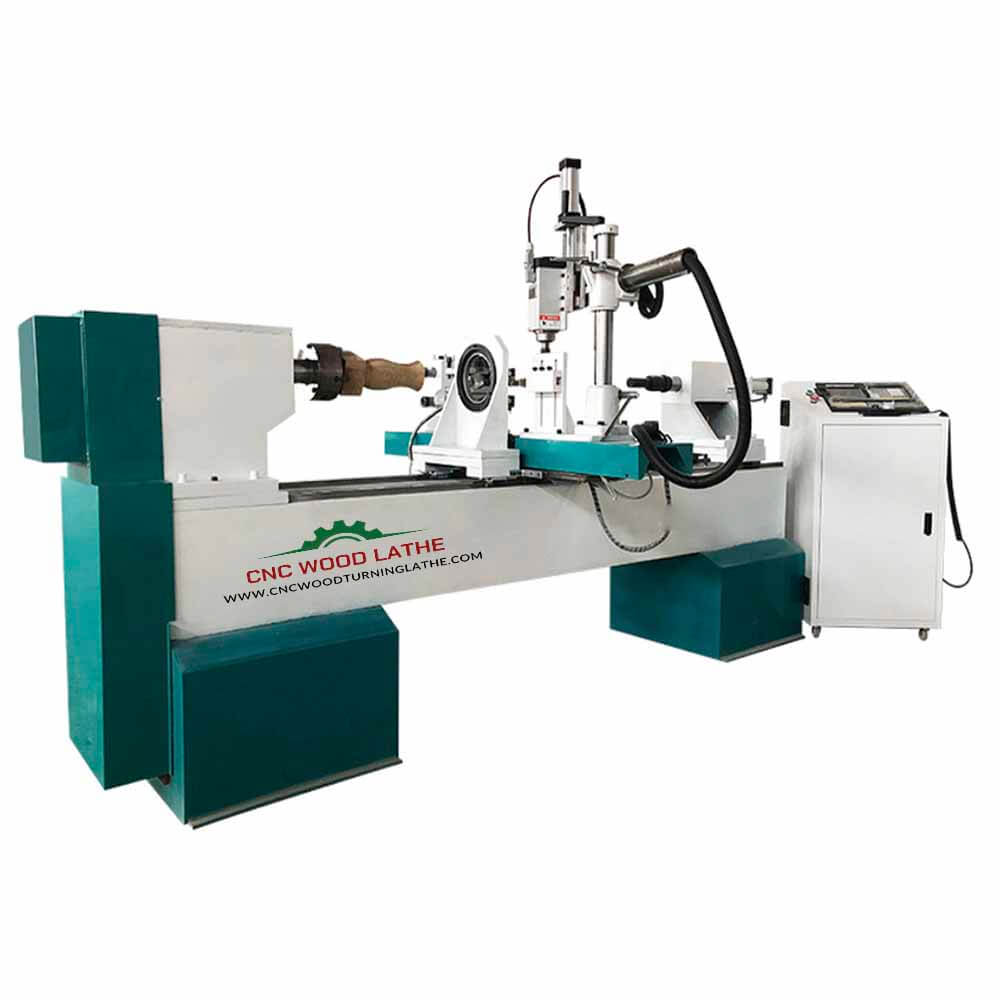

Industrial CNC Wood Turning Machine Wooden Crafts Table Legs

Auto Feed Multi Spindle Multiapplication Wood Cnc Lathe Machine
  • Model：CT-1220-4T
  • Supplity：360 Units in Stock Available for Sale Every Month
  • Standard:Meeting CE Standards in Terms of Quality & Safety
  • Function Description

This advanced industrial CNC wood turning machine is designed for precision shaping of wooden furniture components and decorative crafts. It is ideal for producing table legs, chair legs, stair balusters, bed posts, sofa feet, and a wide variety of custom woodwork. The machine’s sturdy welded structure, high-torque spindle, and reliable servo drive system ensure smooth operation, consistent cutting, and excellent repeatability. It can handle different wood types as well as PVC, acrylic, bamboo, and other materials. Whether you’re making large furniture parts or detailed handcrafted items, this CNC wood lathe delivers high efficiency, flexibility, and superior surface finish — making it a great choice for woodworking shops, furniture factories, and craft producers alike.

SEND AN EMAIL
WHATSAPP
Huge-facebook-02 Huge-tiktok Huge-youtube Huge-twitter

Features Videos of CNC wood lathe

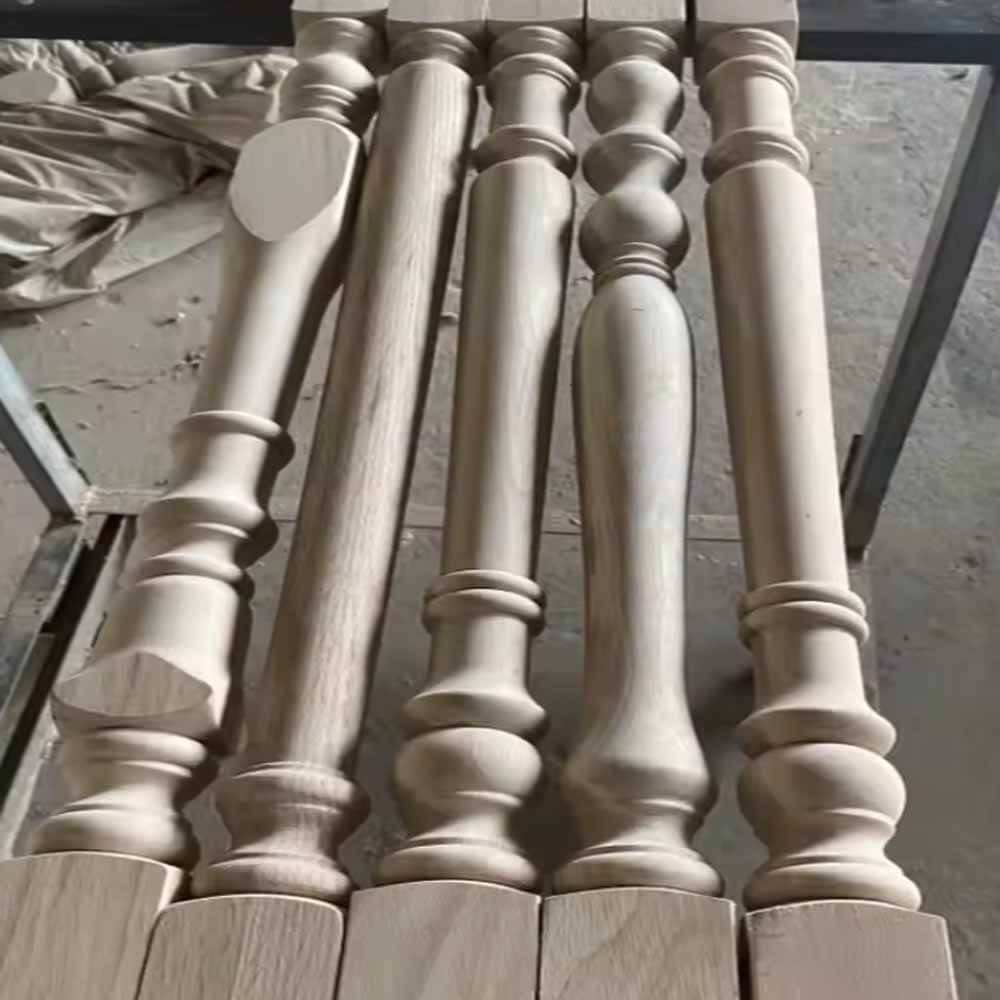

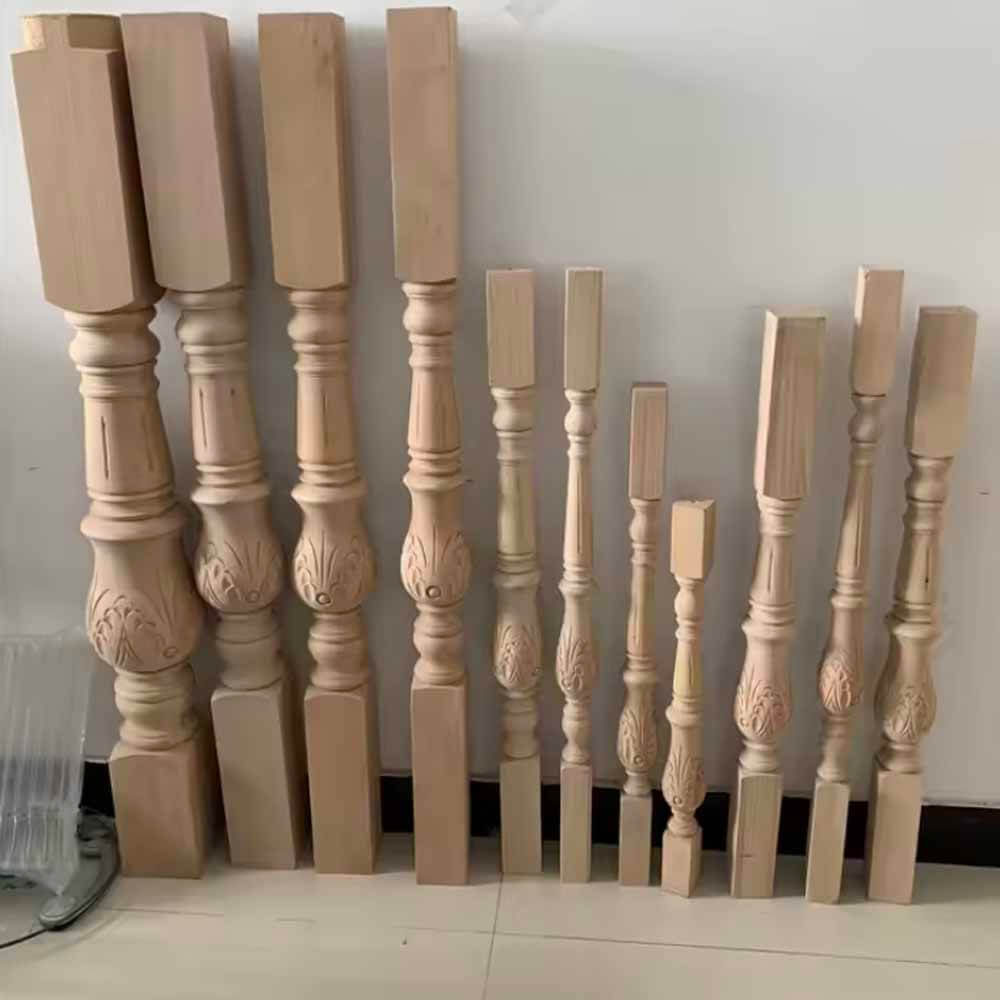

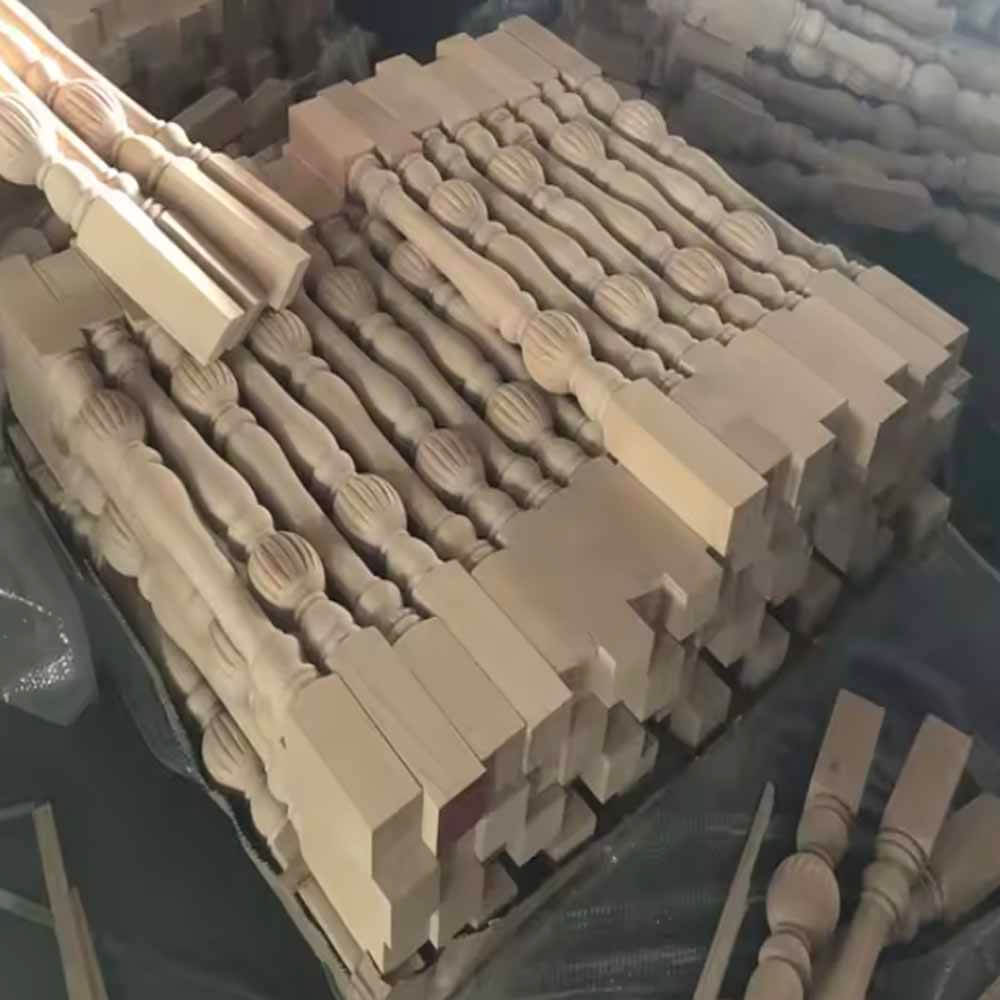

Various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts,
such as various staircase column, Roman column, general column, tables or chairs legs,
washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children’ s bed column, etc.

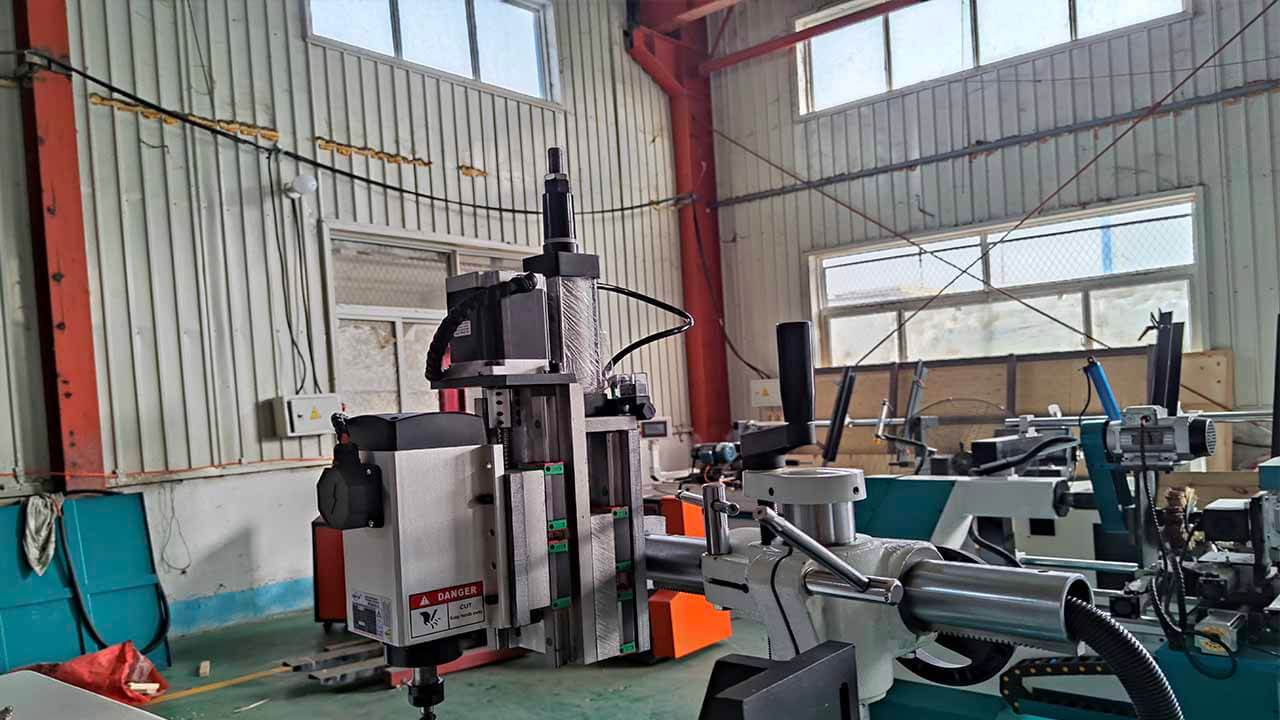

working Turning Cnc Wood Lathe Machine

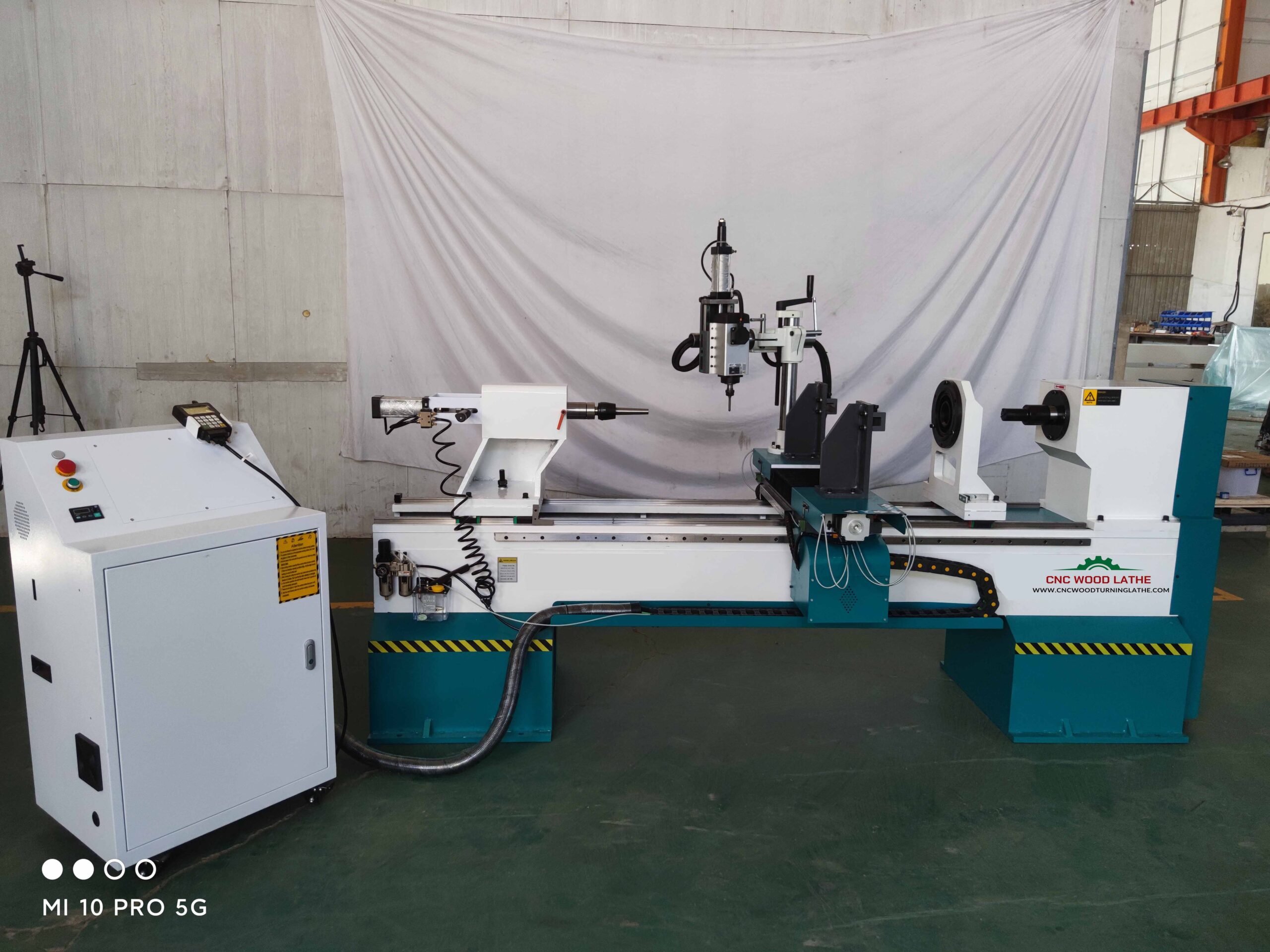

Cnc Wood Lathe Machine
auto Feeding Wood Carving Lathe 1

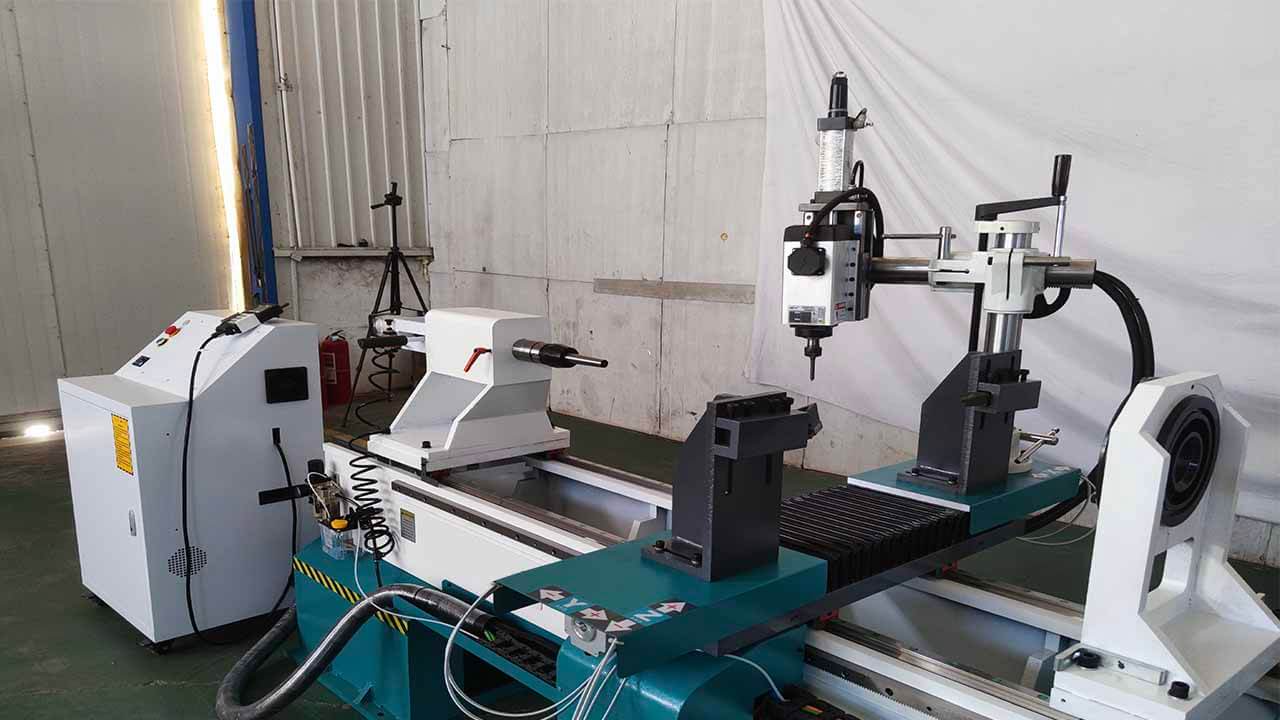

Automatic Wood Lathe Machine

Introduction of Industrial CNC Wood Turning Machine Wooden Crafts Table Legs

  • Heavy-Duty Steel Pipe Welded Lathe Bed – Built with a robust steel pipe weld structure that delivers superior strength, durability, and resistance to distortion, ensuring long-term stability for precision CNC cutting and engraving tasks.
  • Wide Processing Versatility – This CNC machine is highly adaptable, making it suitable for a variety of materials and complex workpieces, perfect for custom machining projects.

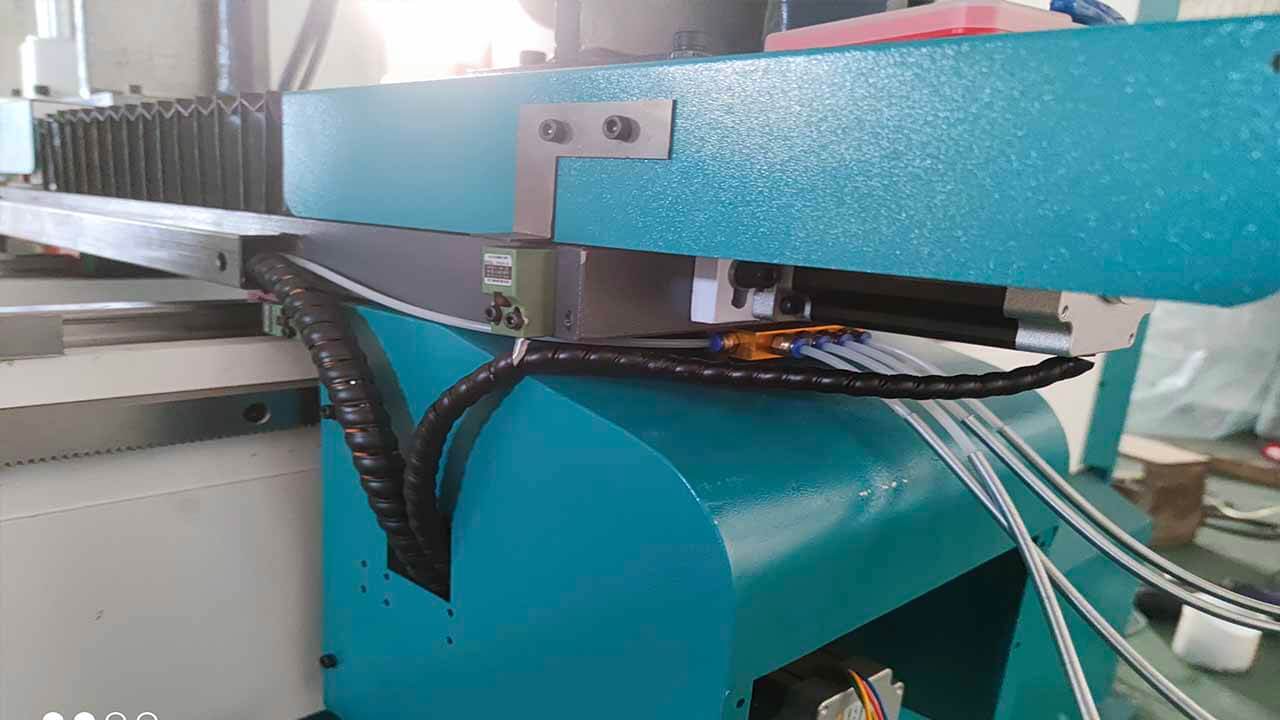

  • High-Speed, High-Precision Motion System – Features imported Hiwin square linear guide rails and rack and pinion transmission for smooth, fast, and accurate cutting performance, boosting productivity and finished part quality.
  • Multi-Axis Linkage Capability – Supports synchronized multi-coordinate movement, allowing the CNC router to handle intricate shapes and complex 3D parts with ease.
  • User-Centered, Easy-to-Transport Design – Thoughtfully engineered with a modular, detachable frame so the CNC machine can be disassembled for convenient transportation and installation, saving time and shipping costs.

Specification of Industrial CNC Wood Turning Machine Wooden Crafts Table Legs

DescriptionSpecification
Processing Stroke1200mm × 200mm
Feeding MechanismAutomatic bin-type feeding system (Max loading: Width × Thickness ≤ 100mm × 100mm, Length 80~1200mm)
Body StructureIntegral cast iron frame with annealing treatment and heavy-duty cast structural parts

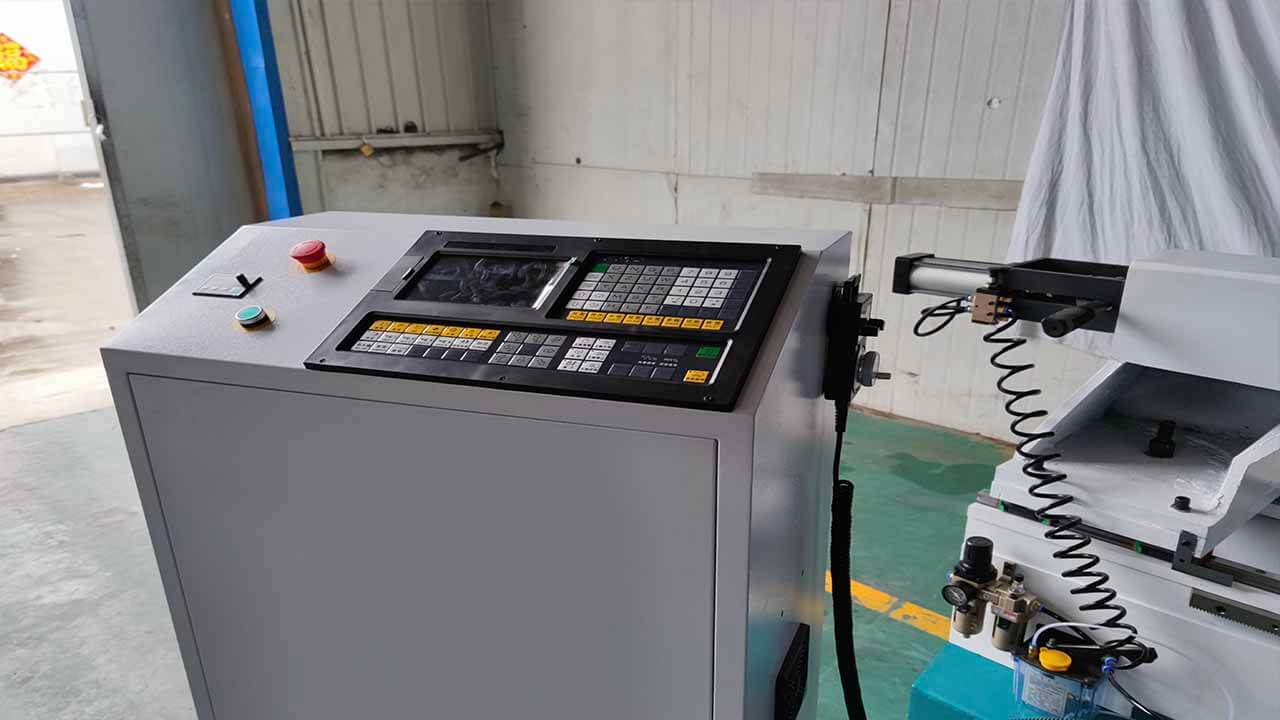

Control SystemXinkerui 4-axis CNC milling control system
Axis Drive MethodX/Y/Z axes: Xinkerui servo motors; A-axis: Alpha spindle servo drive
Lathe Tool HolderPneumatic telescopic 2-position lathe tool holder
Linear Guide RailsHigh-precision 25mm & 30mm linear guides
Ball ScrewPrecision ground ball screw for high repeatability
InverterFuling brand inverter
Max Travel Speed (X/Y/Z)12 m/min
Max Processing Speed10 m/min
Spindle Configuration– 1× 4.0KW lathe spindle (6000 rpm) – 2× 4.5KW adjustable-angle electric spindles (18000 rpm) – 1× 6KW electric spindle (18000 rpm) – 1× 7.5KW electric spindle (12000 rpm)
Processing Accuracy±0.07mm / 200mm
Repeat Positioning Accuracy±0.06mm

Application of Industrial CNC Wood Turning Machine Wooden Crafts Table Legs

Wide Material Compatibility
This CNC machine is suitable for machining a diverse range of materials, including solid wood, PVC, plastic, nylon, acrylic sheets, carbon fiber, bamboo, MDF, and other composite boards.

Versatile Industry Applications

  • Furniture Manufacturing: Perfect for producing furniture parts such as dining tables, chairs, bed frames, sofa legs, stair balusters, billiard table legs, and custom furniture components.
  • Musical Instrument Production: Ideal for crafting drumsticks, flutes, suonas, hulusi, bassoons, piano parts, and other woodwind and percussion instruments.
  • Sports Equipment: Used for shaping pool cues, baseball bats, wooden balls, and various custom sports gear.
  • Handicrafts & Gifts: Capable of turning out wooden bowls, decorative vases, cups, pen holders, nesting dolls, wooden toy guns, candlesticks, and similar artistic crafts.
  • Wood Carving & Sculptures: Suitable for detailed work like figure carving, animal sculpture, totem engraving, text relief, and intricate decorative elements.

Specialized Applications:

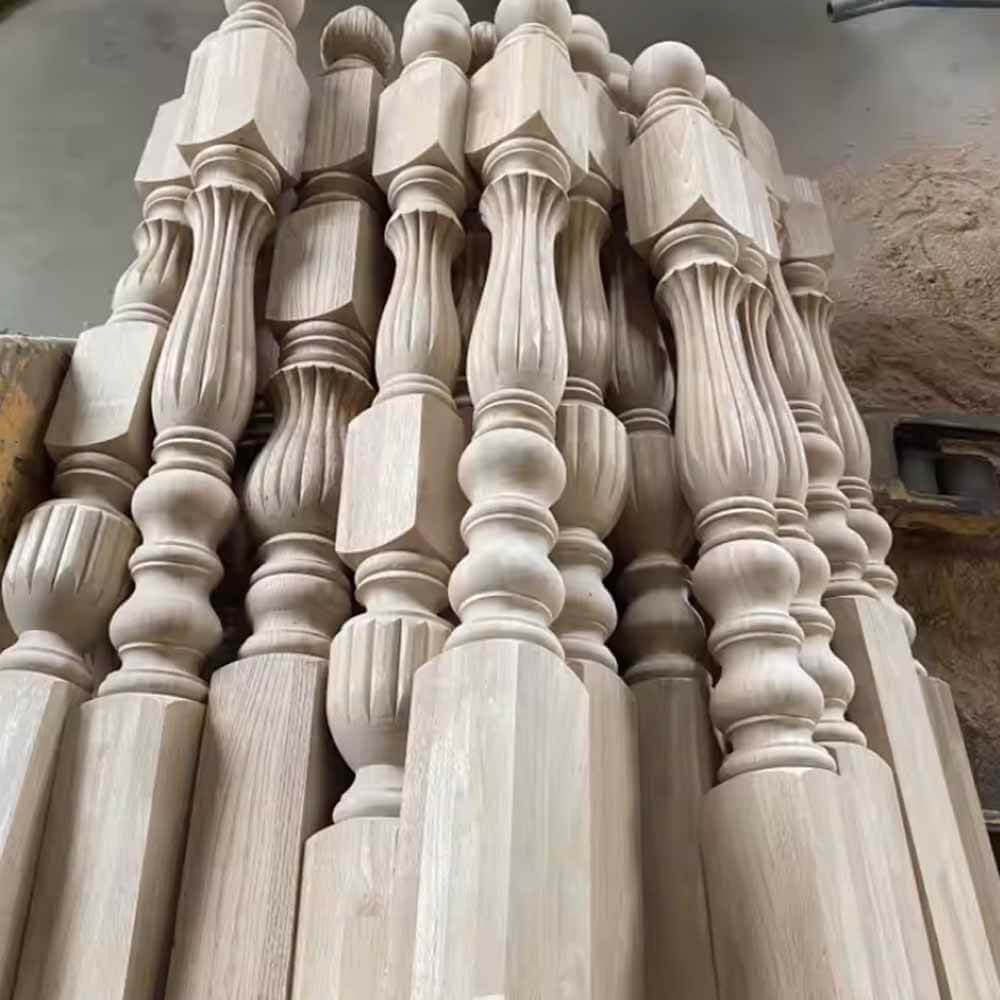

This CNC lathe machine can efficiently process solid wood stair columns, turned sofa legs, table and chair legs, billiard table posts, tiger claw legs, carved cabriole legs, bed posts, special curved legs, Queen Anne-style legs, and other ornate furniture feet. It’s also perfect for manufacturing complex-shaped sporting goods, musical instruments, custom wood ornaments, and various furniture accessories requiring high precision and craftsmanship.

Features of Industrial CNC Wood Turning Machine Wooden Crafts Table Legs

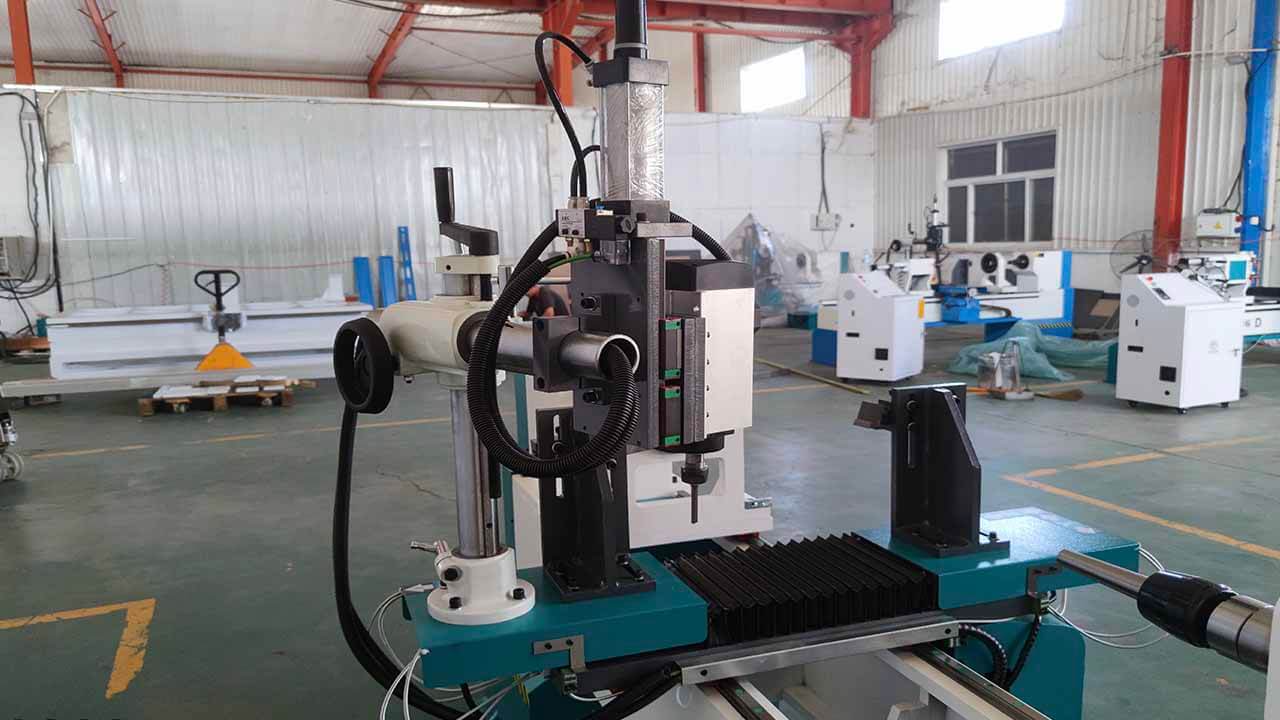

Automatic Wood Lathe Machine 1

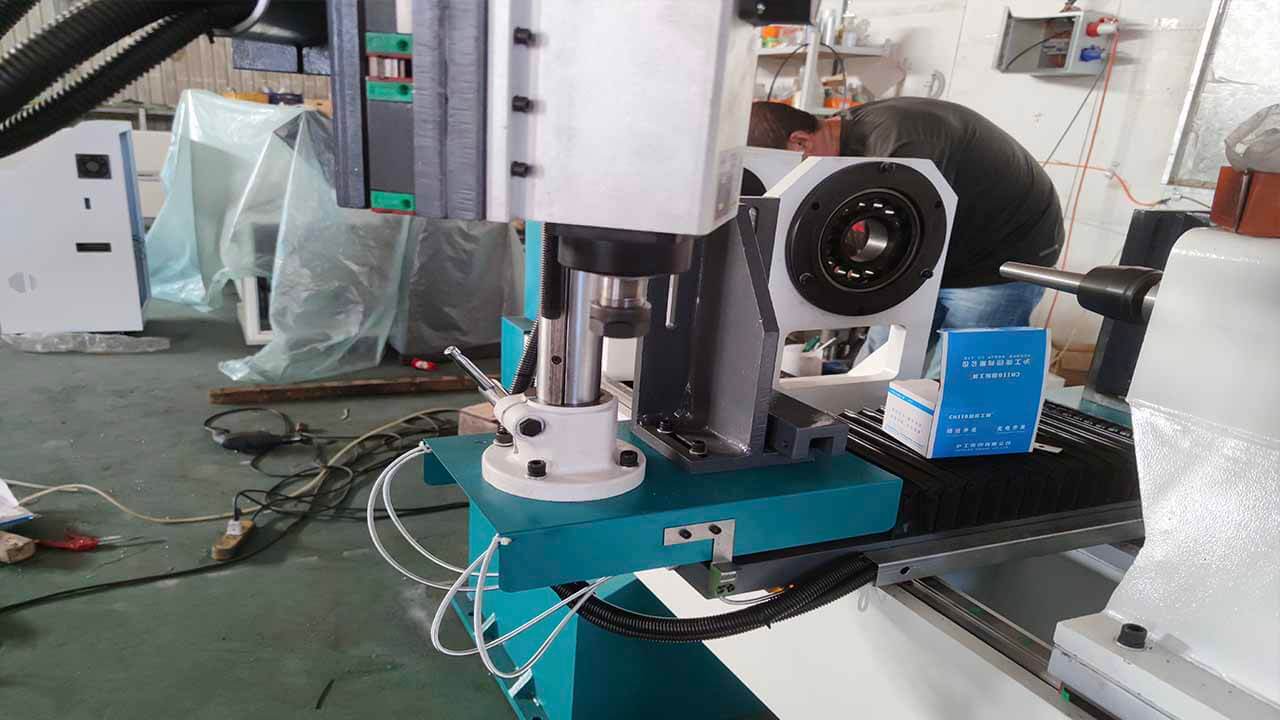

Cnc Lathe Wood Working Turning Machine

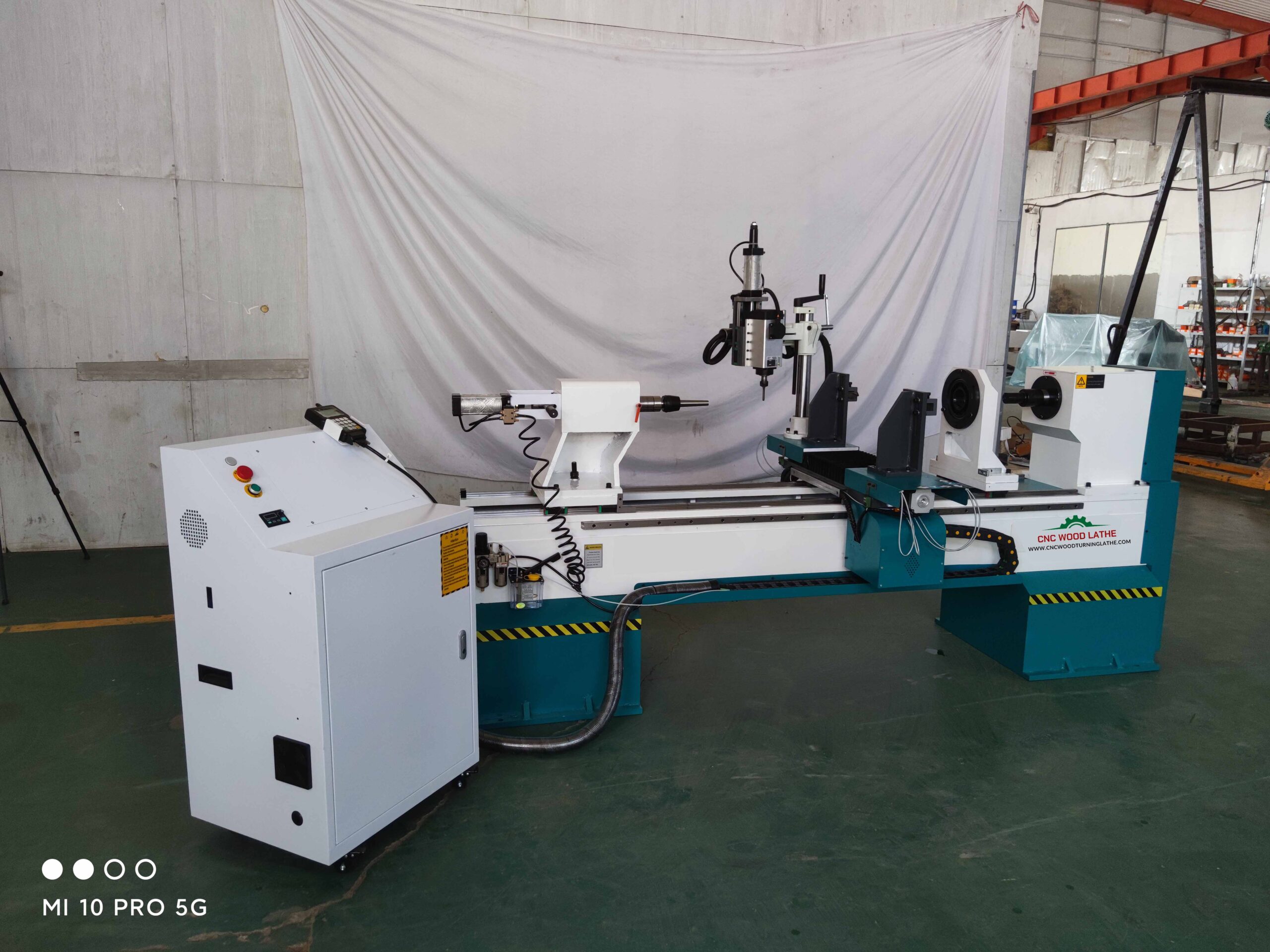

Wood Lathe Cnc Machine Turning Automatic
cnc Wood Lathe Manufacture
