1220 Mini CNC Wood Lathe Machine for Wood Turning Work
- Model：CT-1220
- Supplity：360 Units in Stock Available for Sale Every Month
- Standard:Meeting CE Standards in Terms of Quality & Safety
- Function Description

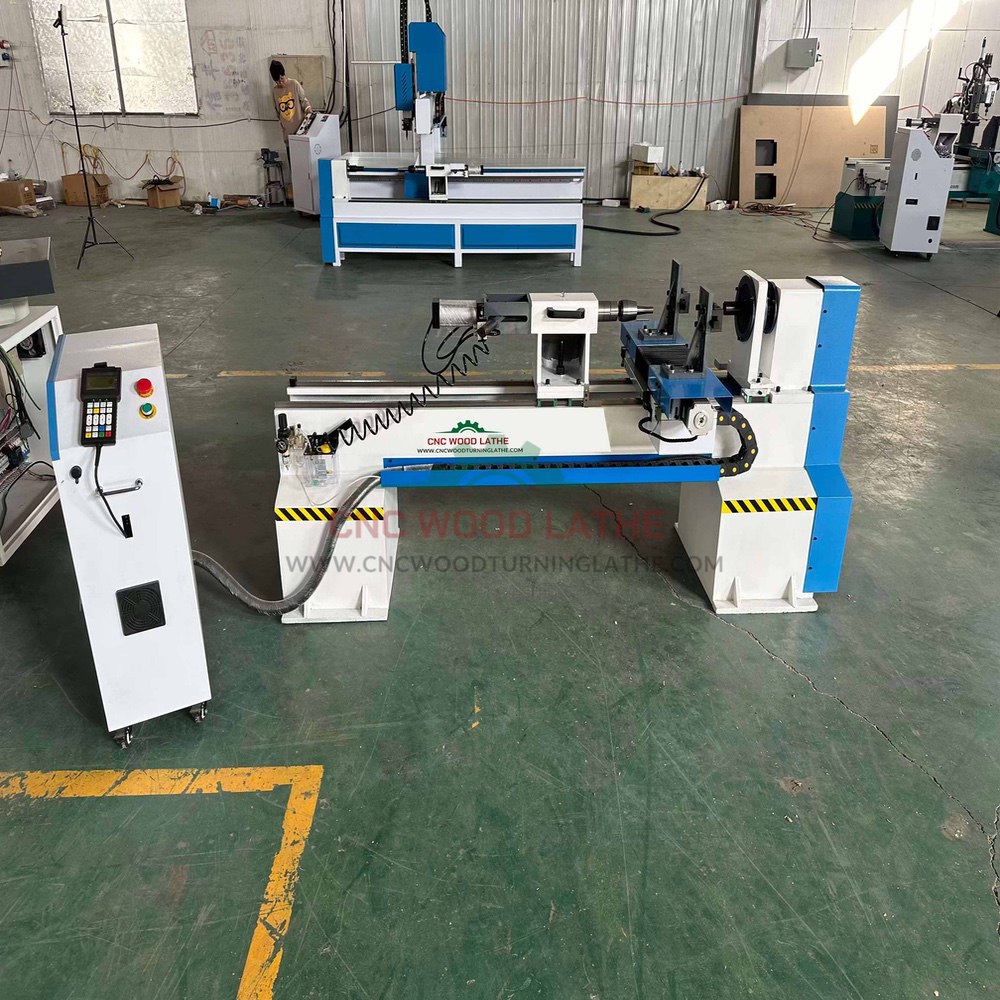

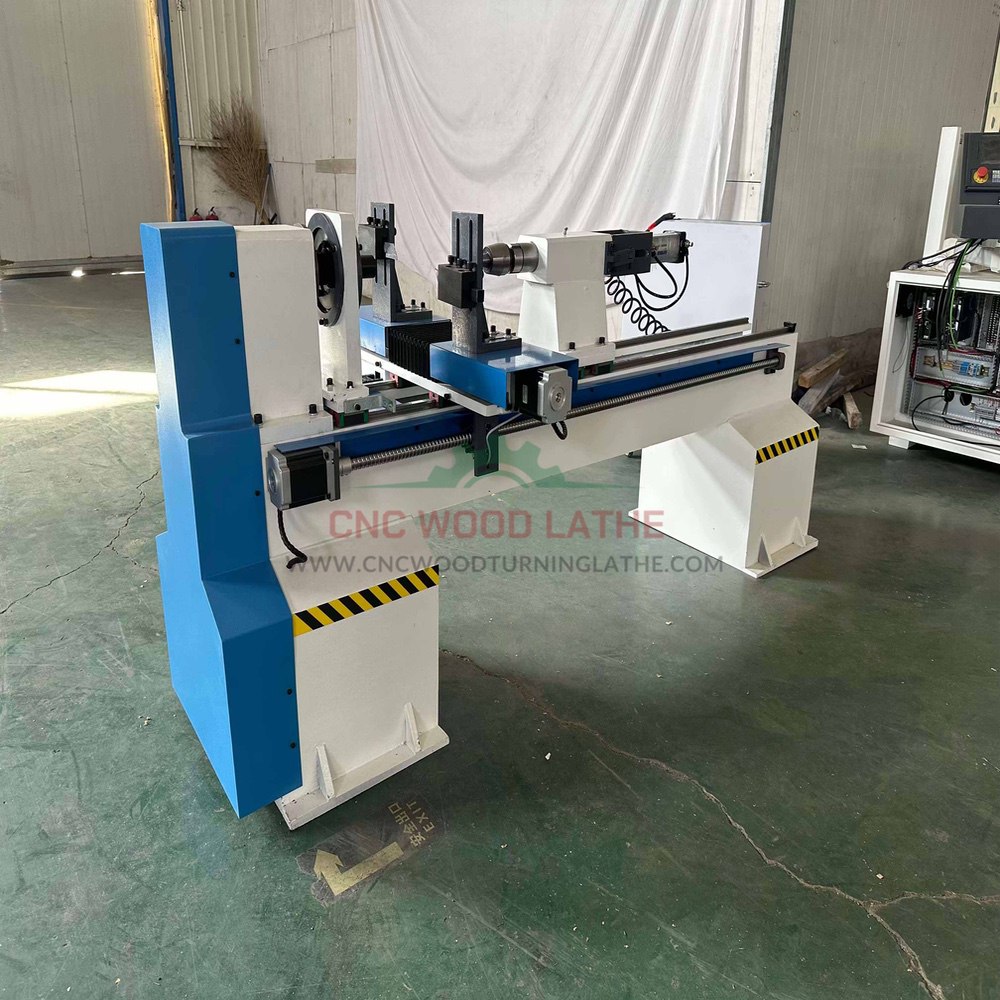

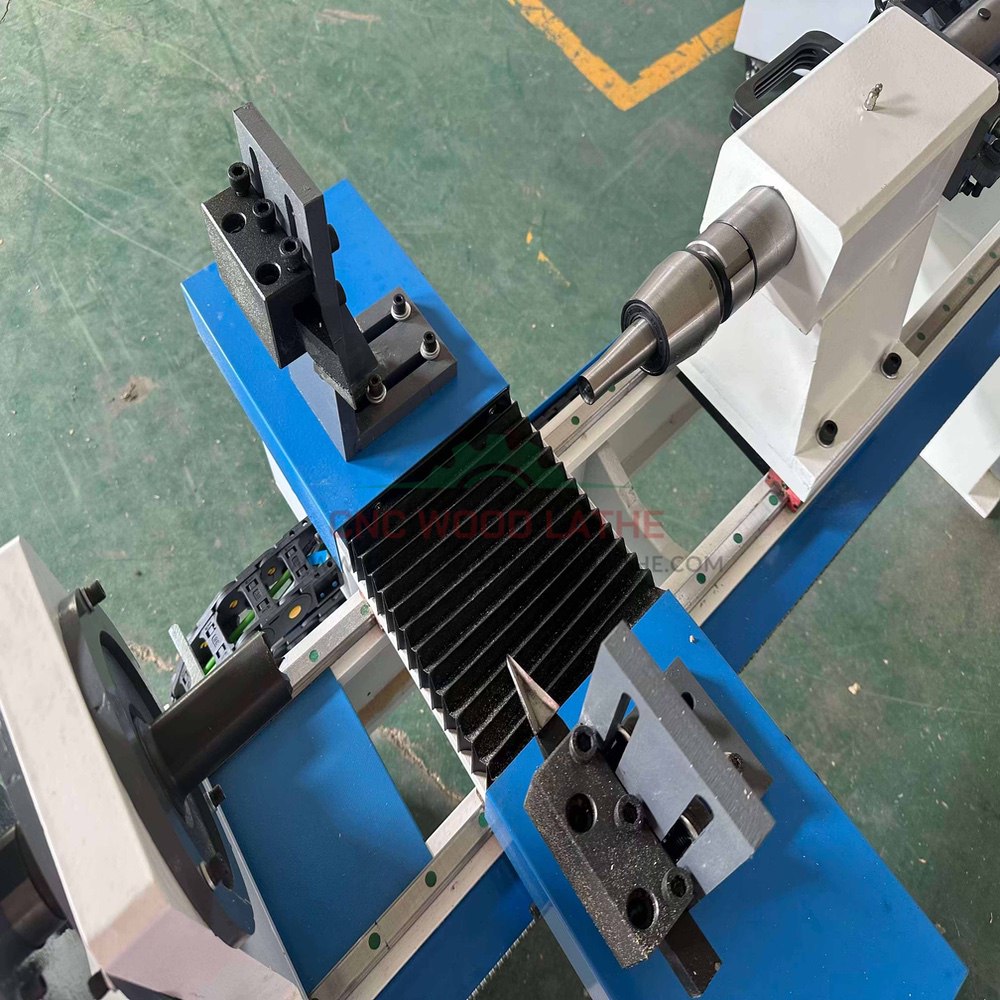

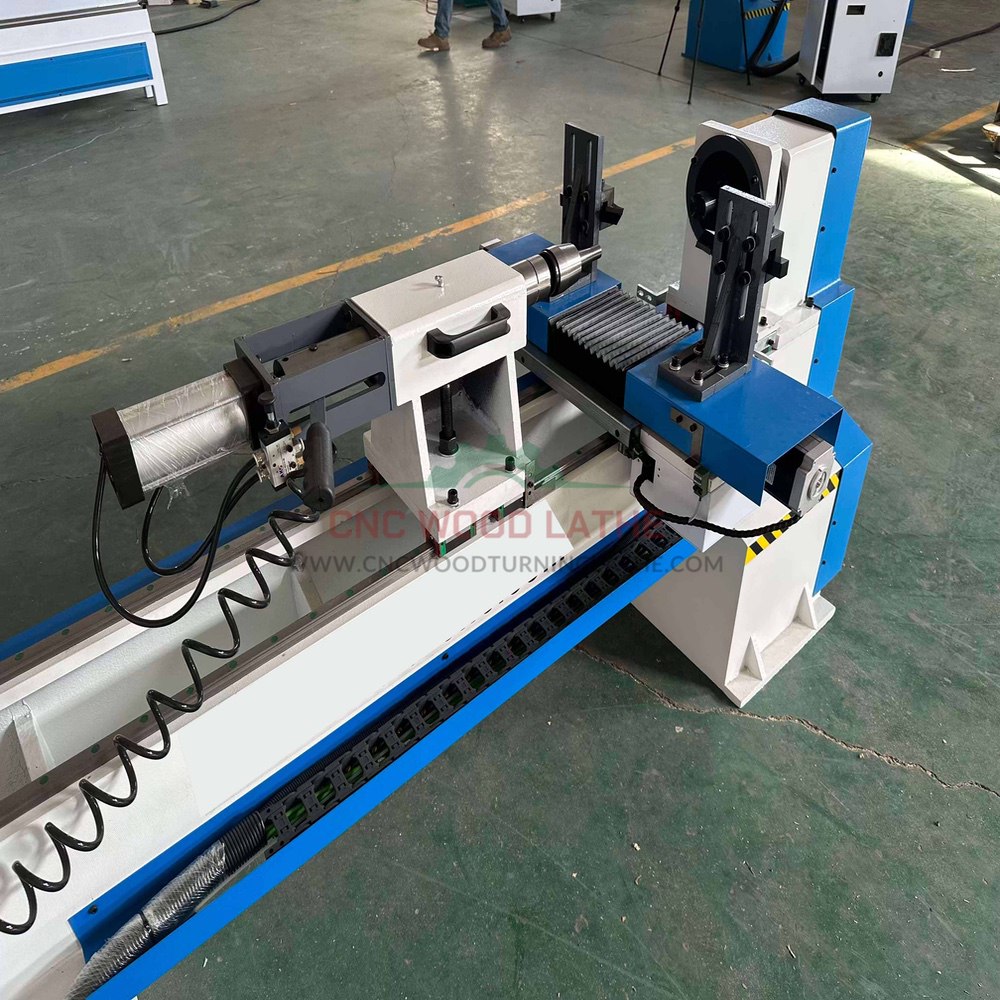

This is a dual-tool CNC wood lathe, built with standard specifications to handle wooden workpieces up to 1000mm in length and 200mm in diameter. It’s an excellent solution for shaping items such as stair spindles, table or chair legs, and cat furniture posts. Ideal for mass production, this machine requires just a single setup to perform automated, repetitive cutting cycles, allowing for hands-free operation and greatly lowering manual labor requirements.
Features Videos of Mini CNC wood lathe

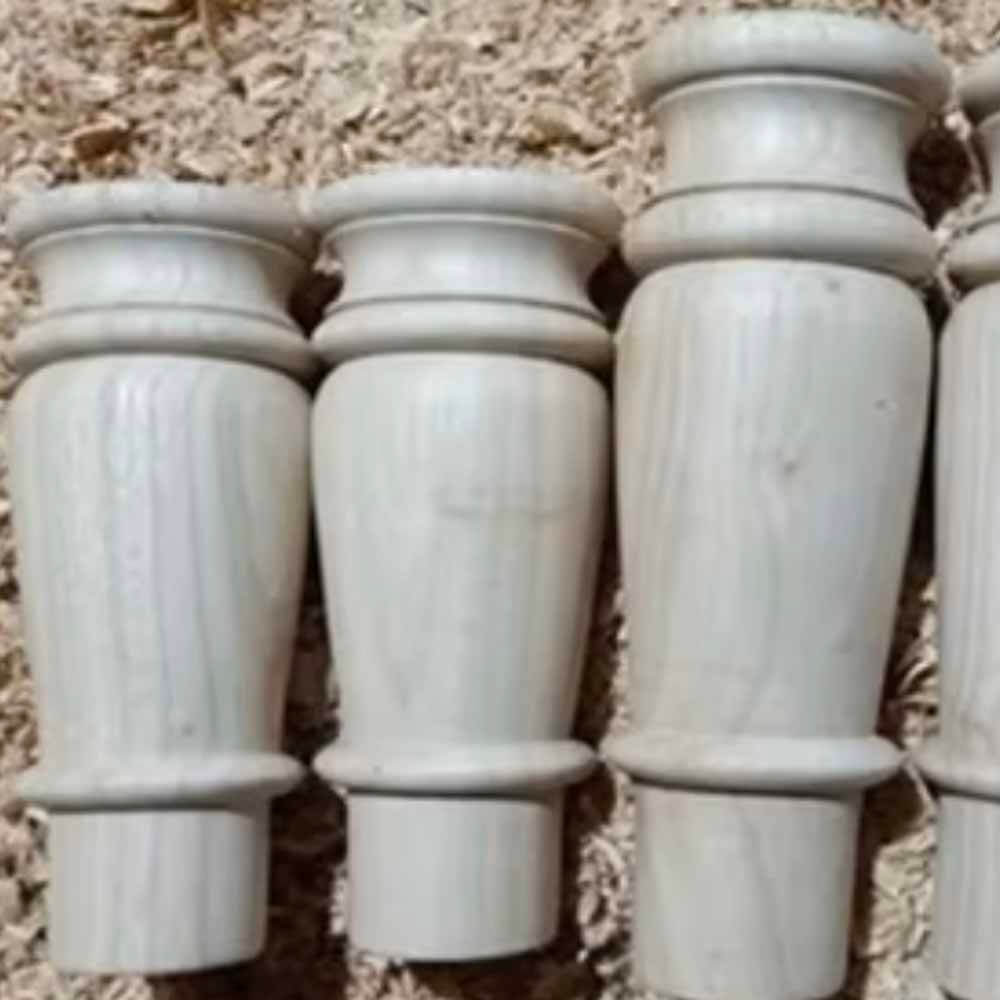

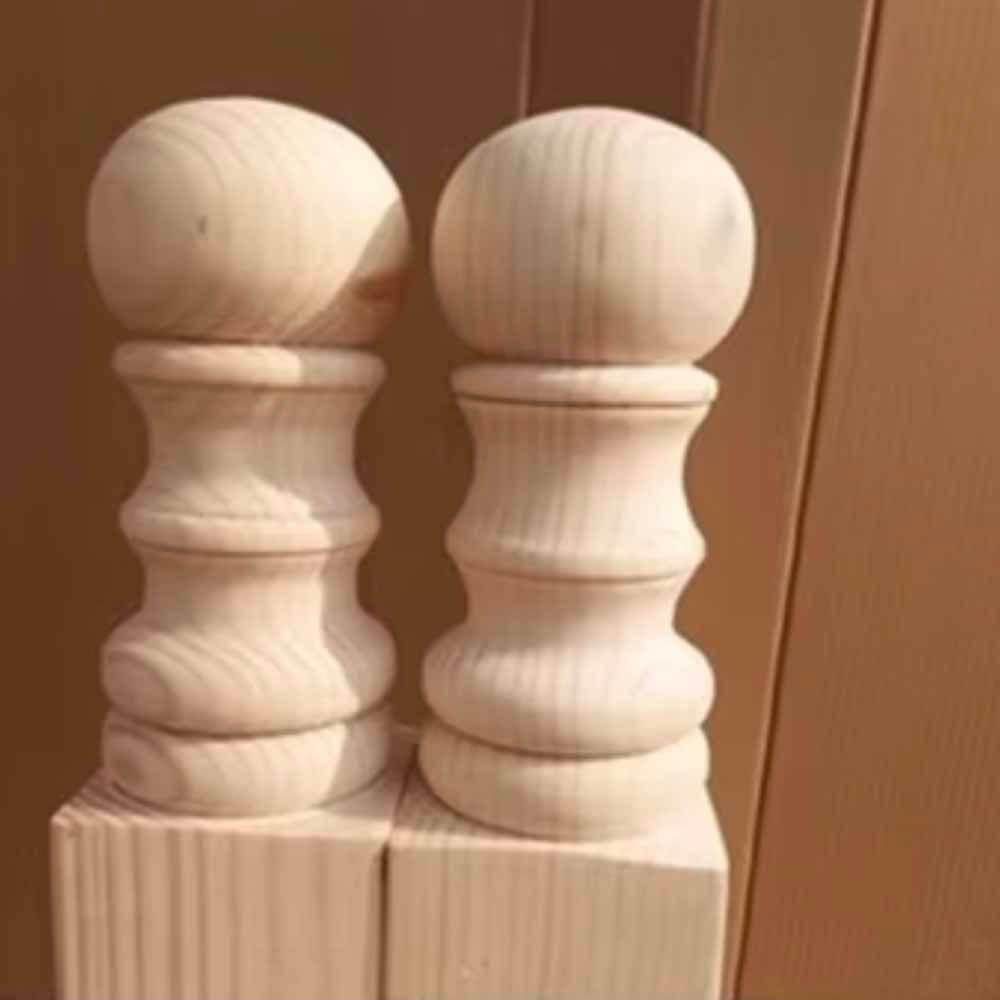

The Mini wood lathe suit for Staircases, stairway balusters, stairway newel posts; dining table legs; end table Legs; sofa table legs; bar stool legs; chair legs; chair arm posts; chair stretchers; bed rails, lamp posts, baseball bats etc.
Introduction of 1220 Mini CNC Wood Lathe Machine for Wood Turning Work
Mini CNC Wood Turning Lathe delivers exceptional value for precision woodworking. As a trusted mini CNC lathe wood factory, Tiffany combines cutting-edge technology with durable craftsmanship to produce a machine ideal for hobbyists, small businesses, and large-scale woodworking operations.
Whether you’re seeking a mini CNC wood lathe for sale, exploring multi-purpose mini CNC wood lathe machines, or sourcing from a reliable wholesale mini wood CNC lathe supplier, this model is your go-to solution for quality and versatility.
Specification of 1220 Mini CNC Wood Lathe Machine for Wood Turning Work
| Parameter | Details |
|---|---|
| Max Turning Diameter | 200 mm |
| Max Turning Length | 1000 mm |
| Lathe Frame | Heavy-duty one-piece cast bed with independent control cabinet |
| Motor Power | 4KW three-phase asynchronous motor |
| Motor Speed | 0–3000 RPM |
| Drive System | Servo drive |
| Transmission | X & Y axes: 25TBI ball screw; Z axis: 32TBI ball screw or high-precision helical rack |
| Guide Rails | Taiwan Hiwin 25mm precision square linear rails |

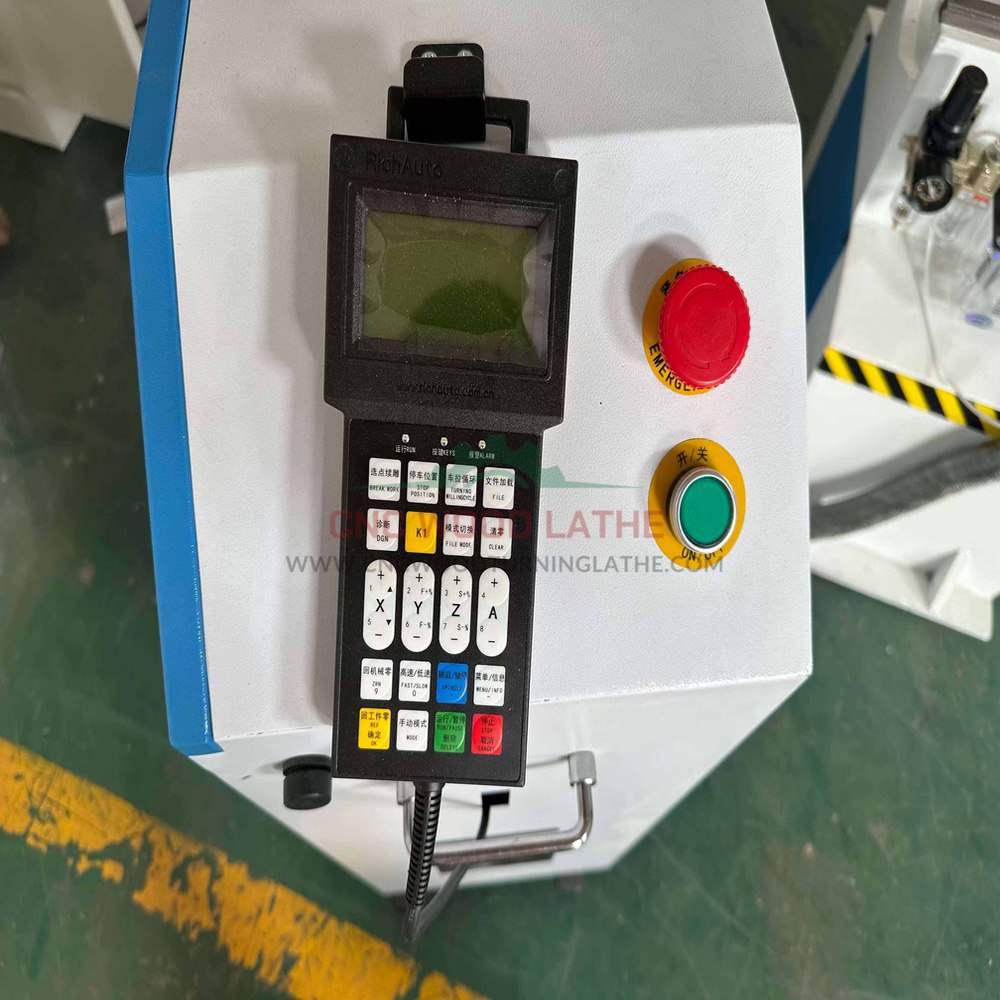

| Control System | EXTRA CNC control panel (Model: ET1000TC) |
| Voltage | AC380V / AC220V, 50/60Hz |

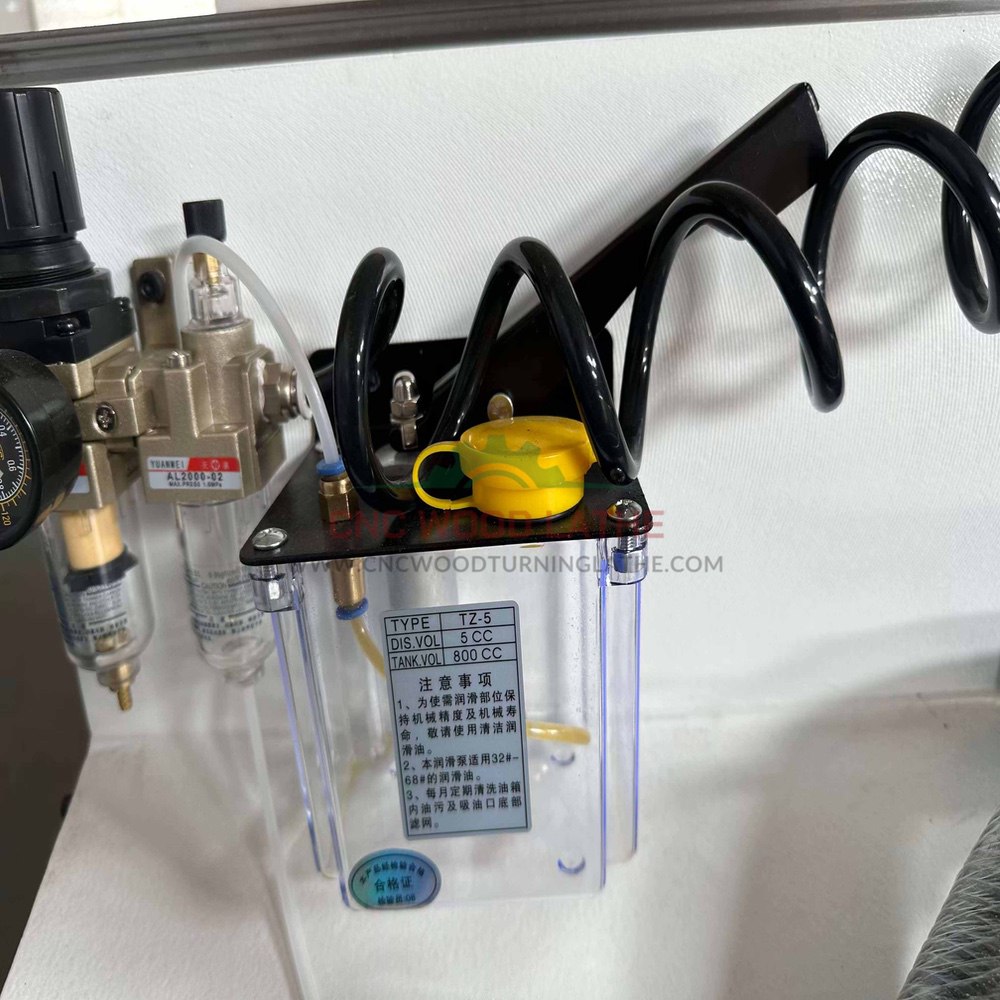

| Lubrication | Automatic oil injection system |
| Software Compatibility | ArtCAM, Type3, CAD, CorelDraw, SolidWorks, UG, Powermill |
| Repeatability Accuracy | ±0.02mm (X, Y, Z) |
| Safety Features | Full XYZ photoelectric limit protection |
| Accessories Included | Turning tools, wrenches, handwheel, thimble, chuck, oil bottle, separator |
Application of 1220 Mini CNC Wood Lathe Machine for Wood Turning Work
This mini CNC wood turning lathe machine is engineered for a wide range of woodworking applications, making it ideal for both craft and commercial use. It is perfect for:

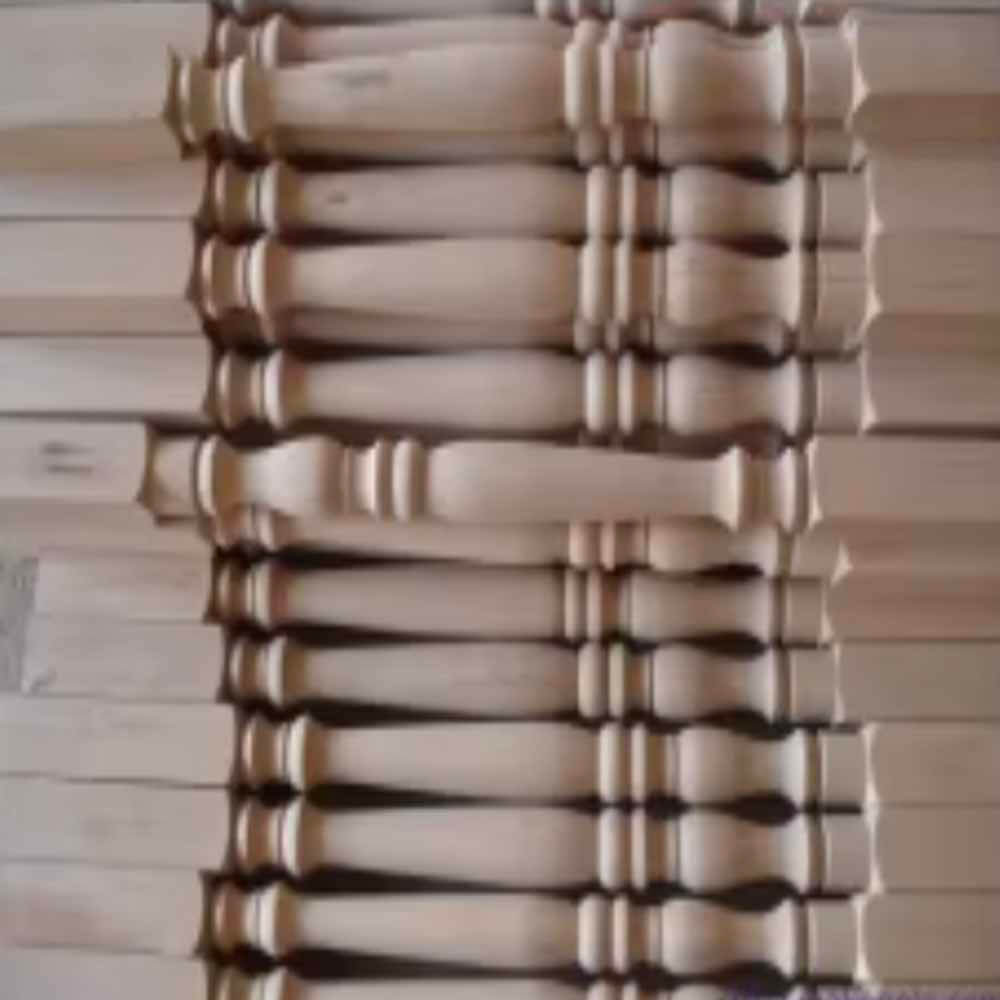

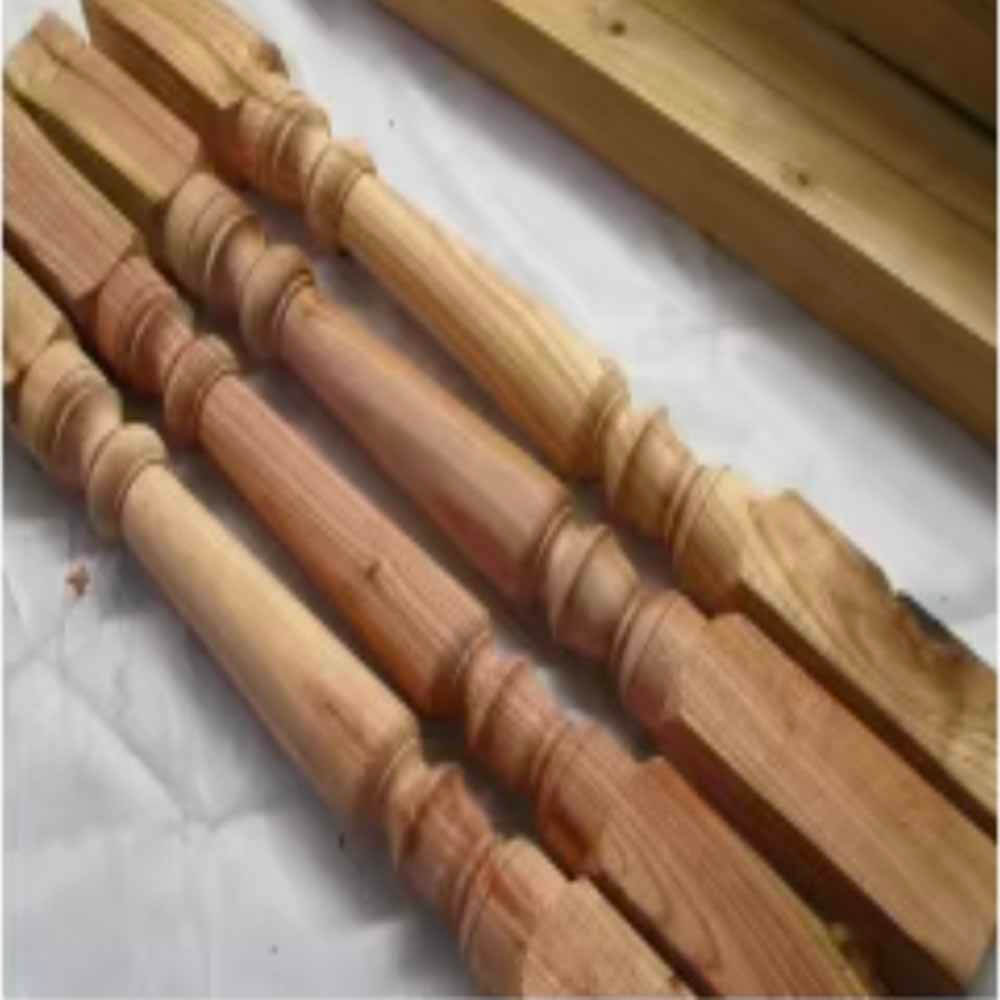

- Staircases: Including stairway balusters and newel posts
- Furniture Legs: Dining table legs, end table legs, sofa table legs, bar stool legs, and chair legs
- Chair Components: Chair arm posts and stretchers
- Bedroom Furniture: Bed rails and decorative posts
- Decorative Items: Lamp posts, baseball bats, and artistic spindle work
- Prototyping & Custom Orders: Ideal for short-run production and custom decorative pieces
- Round and Square Turning: Compatible with Motioncat square spindle turning minis for greater versatility
Whether you’re producing classic wooden décor or modern furniture components, this machine provides the precision and power you need.
