The Multifunctional Auto Load Unload Mini Wood Turning Lathe is a compact yet powerful CNC wood lathe designed for efficient, high-precision wood turning tasks. It integrates automatic loading and unloading features, allowing seamless and continuous operation without manual intervention — perfect for mass production of wooden products like balls, cups, handles, and decorative crafts. Built with a durable cast iron body and equipped with high-precision Hiwin linear guides, this mini lathe ensures stable performance and smooth motion. The dual-knife system enables trimming and shaping in one process, while the RichAuto handheld controller offers user-friendly operation and fast setup. Combining efficiency, precision, and automation, this lathe is an ideal choice for small workshops and manufacturers looking to enhance productivity and product consistency.
Multifunctional Auto Load Unload Mini Wood Turning Lathe
$4500-$9800
- Model: CT-1220-AUTO
- Working Size: Dia 200mm, Length 1200mm
- Category: Mini CNC Wood Lathe
- Ongoing Technical Guidance for Both End-Clients and Dealers
- Flexible Payment Methods – Secure Payments Online & Offline – PayPal, Alibaba, T/T, Cards Accepted
- International Transport Network Ensuring On-Time Delivery Anywhere
- Comprehensive One-Year Warranty for Complete Unit with Additional Protection Plans for Major Parts
Product Overview of Multifunctional Auto Load Unload Mini Wood Turning Lathe
Key Features of Multifunctional Auto Load Unload Mini Wood Turning Lathe
- Automatic Loading & Unloading System:

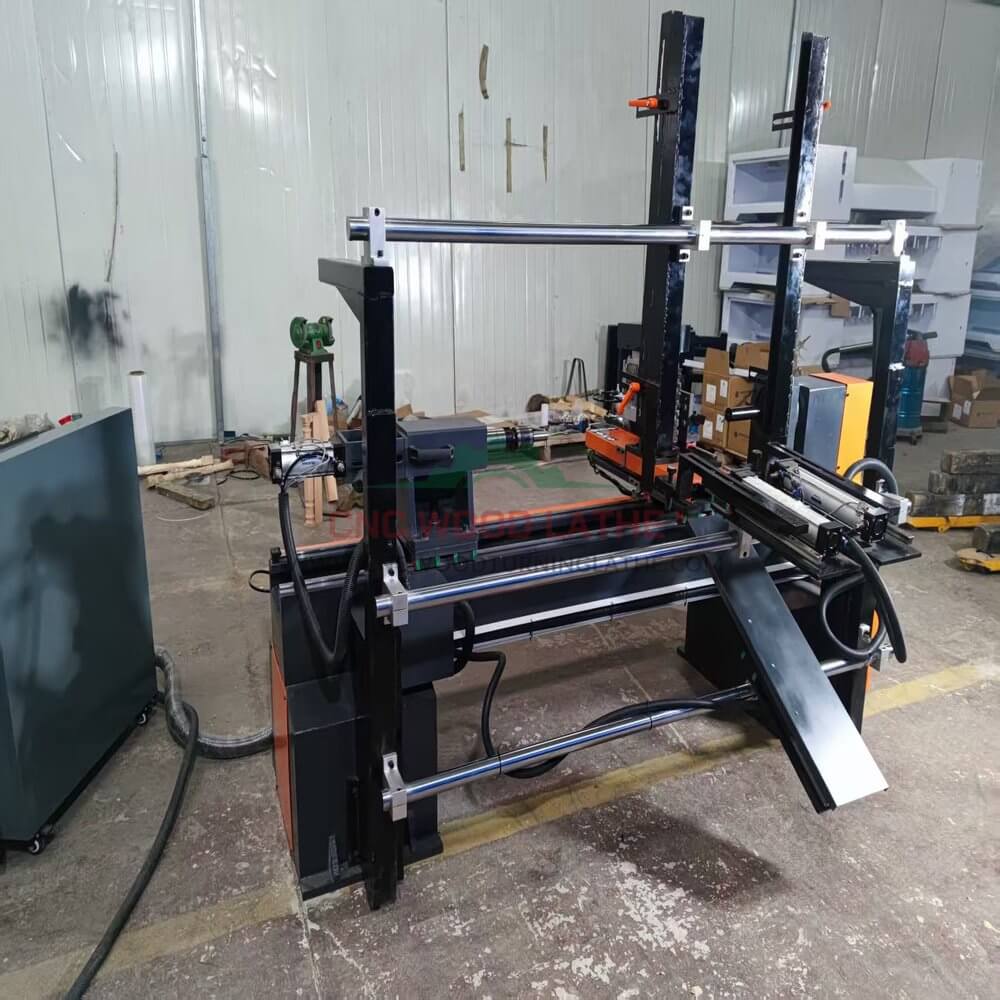

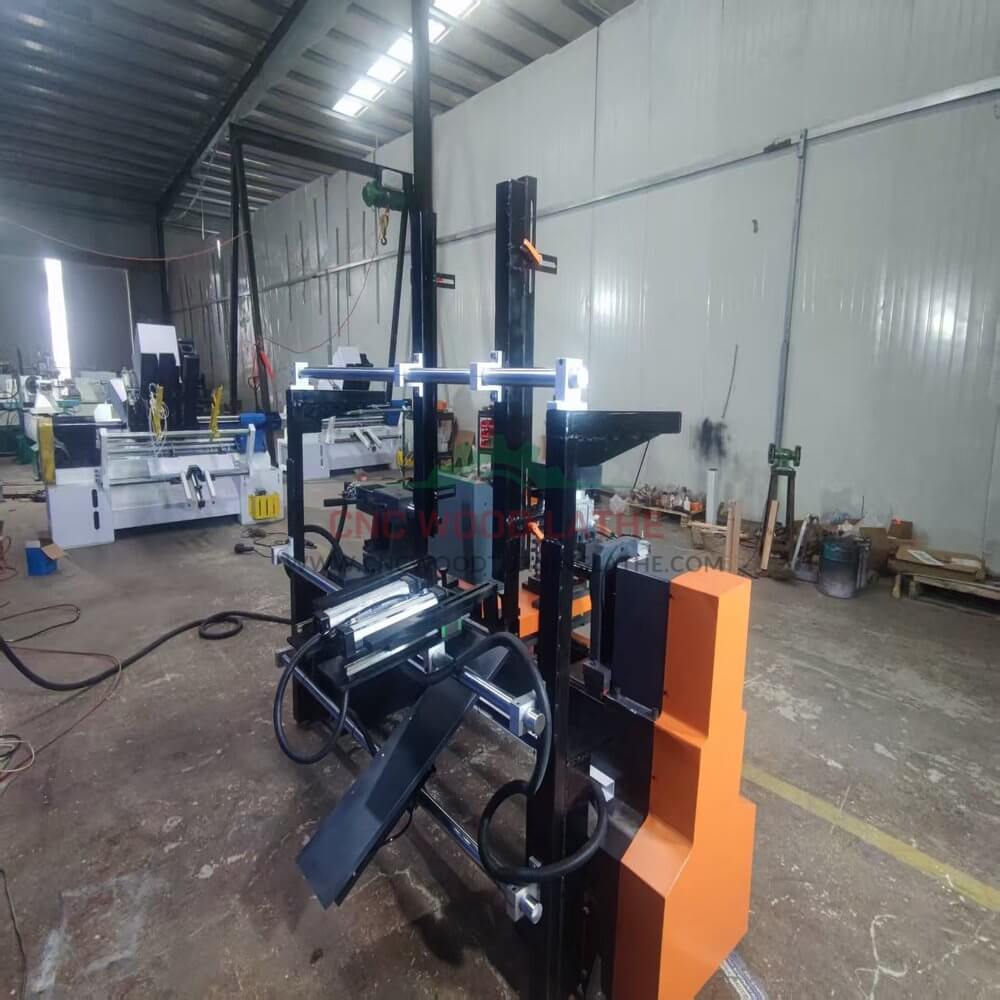

The machine is equipped with a smart auto-feed and discharge system for effortless operation. Before turning begins, the wood blank slides smoothly from the hopper into the feeder. A pneumatic cylinder then pushes it into the precise clamping position. The air-powered tailstock holds the blank securely during machining, and once processing is finished, it automatically releases and pushes the finished drumstick down for easy unloading. This automation ensures faster workflow and higher production efficiency. - Center Steady Ring with Dual Knives:
Each side of the central sheath is fitted with a dedicated cutter — the left blade trims the wood blank to perfectly fit the sheath hole, while the right blade carves the wood into the desired shape. For optimal performance, the sheath hole size should match the outer diameter of your workpiece. Custom sheath sizes are available based on your wood blank dimensions. - Reliable Stepper Motor Drive System:
Each axis is powered by high-quality CW stepper motors, ensuring smooth, precise, and stable movement. The machine operates on two motion axes — the X-axis moves perpendicular to the workpiece, and the Y-axis moves parallel to it — providing accurate control and detailed shaping. - Sealed Electrical Control Cabinet:
All electrical components are enclosed in a dust-proof, sealed control cabinet, protecting internal parts from damage and extending their service life. This design enhances reliability and ensures long-term stable performance. - Easy-to-Use RichAuto Handheld Controller:
The user-friendly RichAuto handheld control system allows simple and intuitive operation, even for beginners. It supports automatic, continuous machining — making it easy to produce drumsticks one after another with consistent precision.
Specification of Multifunctional Auto Load Unload Mini Wood Turning Lathe
| No. | Item | Specification |
|---|---|---|
| 1 | Model | CT-1220-Auto |
| 2 | Maximum Processing Length | 700 mm |
| 3 | Maximum Turning Diameter | 100 mm |
| 4 | Cutting Tools | One roughing knife + one finishing knife |
| 5 | Machine Frame Material | Heavy-duty cast iron construction |
| 6 | Steady Ring Size | 25 mm (customizable as per request) |
| 7 | Linear Guide Brand | Taiwan HIWIN |
| 8 | X/Y Axis Guideway | 20 mm square linear guideways |
| 9 | Control System | RichAuto handheld CNC controller |
| 10 | Main Spindle Motor Power | 3 kW |
| 11 | Power Supply | AC 380V / 3 Phase or AC 220V / Single Phase, 50/60 Hz (customizable) |
| 12 | X/Y Axis Drive | Stepper motor system |
| 13 | Driver Model | Yako 2811 driver |
| 14 | Design Software | AutoCAD |
| 15 | Supported File Format | *.DXF |
| 16 | Spindle Speed Range | 0–3000 RPM |
| 17 | Required Air Pressure | 0.6–0.8 MPa |
| 18 | Net Weight | 680 kg |
| 19 | Gross Weight | 730 kg |
| 20 | Machine Dimensions | 2100 × 2300 × 1500 mm |
| 21 | Packing Dimensions | 2200 × 1400 × 1700 mm |
Applications of Multifunctional Auto Load Unload Mini Wood Turning Lathe
The Multifunctional Auto Load Unload Mini Wood Turning Lathe is widely used in various woodworking and craft industries for producing precision-turned wooden products. It is ideal for making table legs, chair legs, stair spindles, baseball bats, bedposts, and sofa legs, as well as wooden bowls, cups, and decorative art pieces. Its automatic feeding and unloading system make it especially suitable for mass production and batch processing in furniture factories and woodworking workshops. This mini CNC lathe also performs excellently in producing custom wood components, souvenirs, and wooden craft items with consistent quality and accuracy. Whether for furniture manufacturing, interior decoration, or personalized woodworking, this lathe provides an efficient and reliable solution for all wood turning needs.

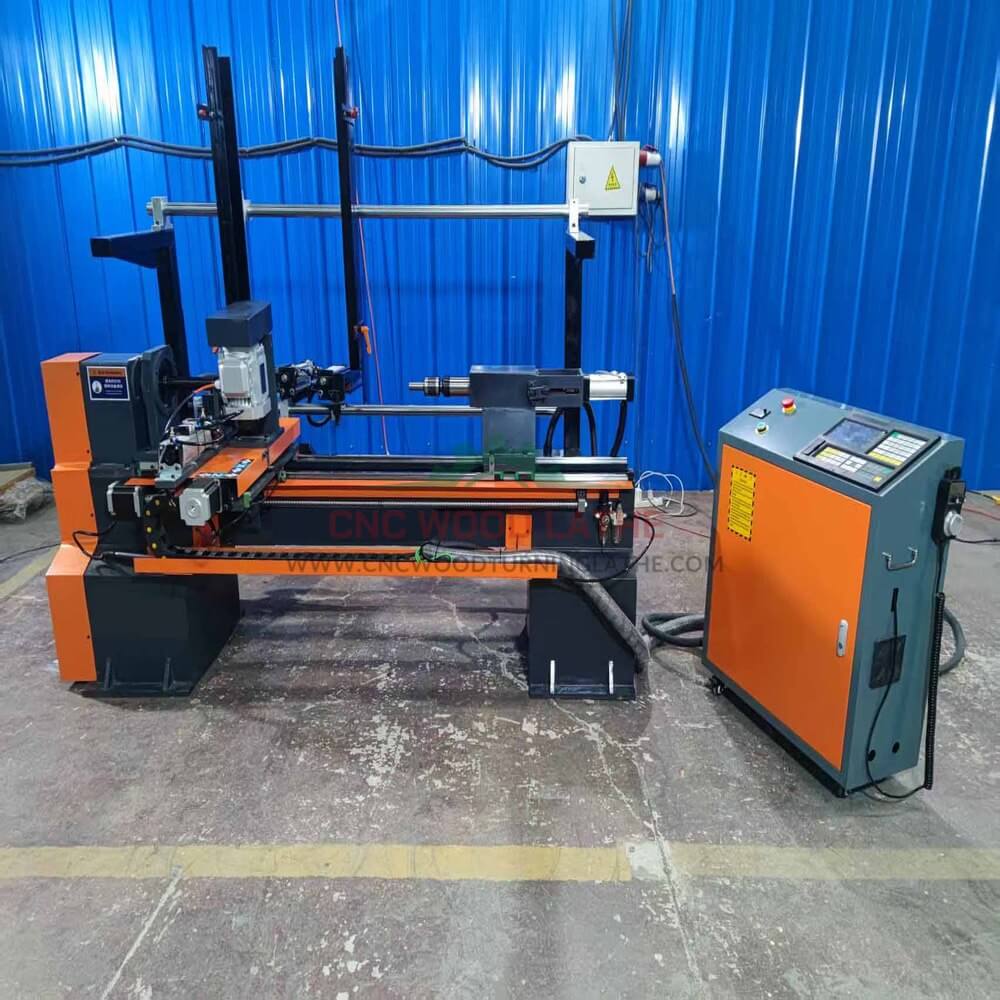

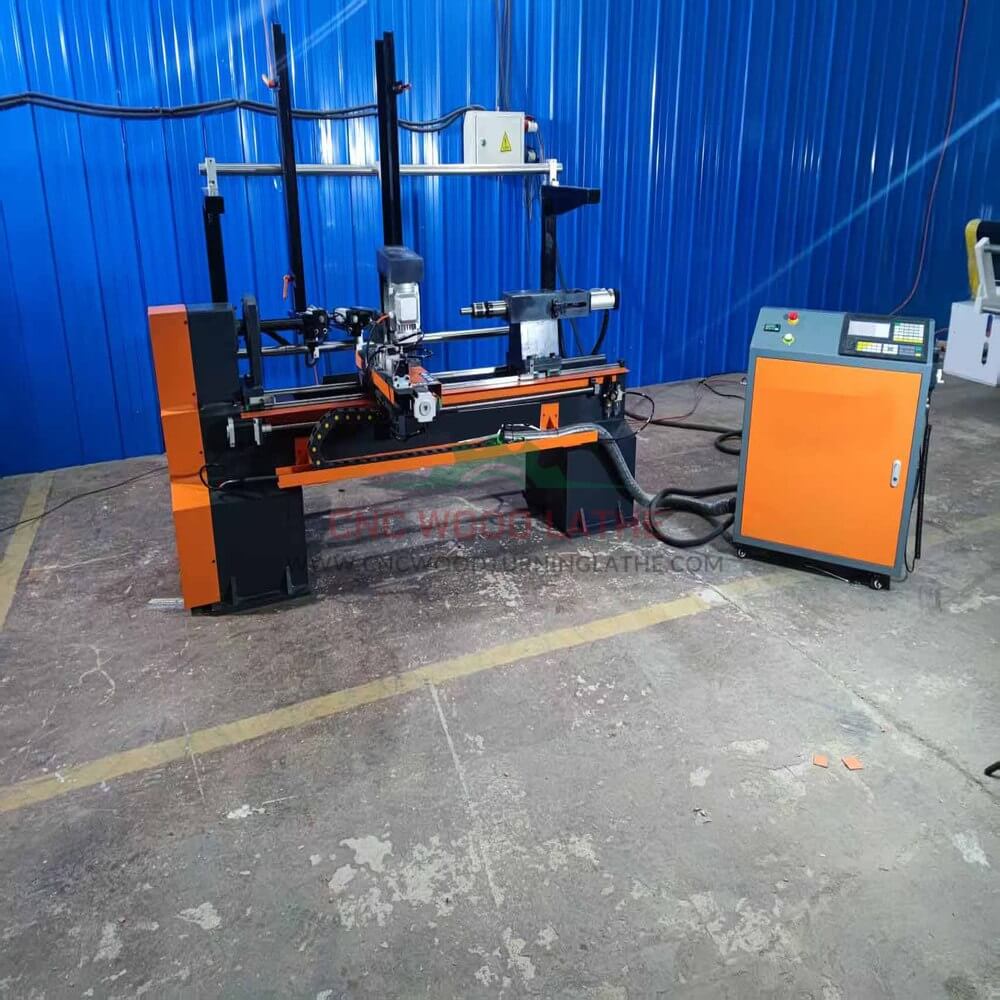

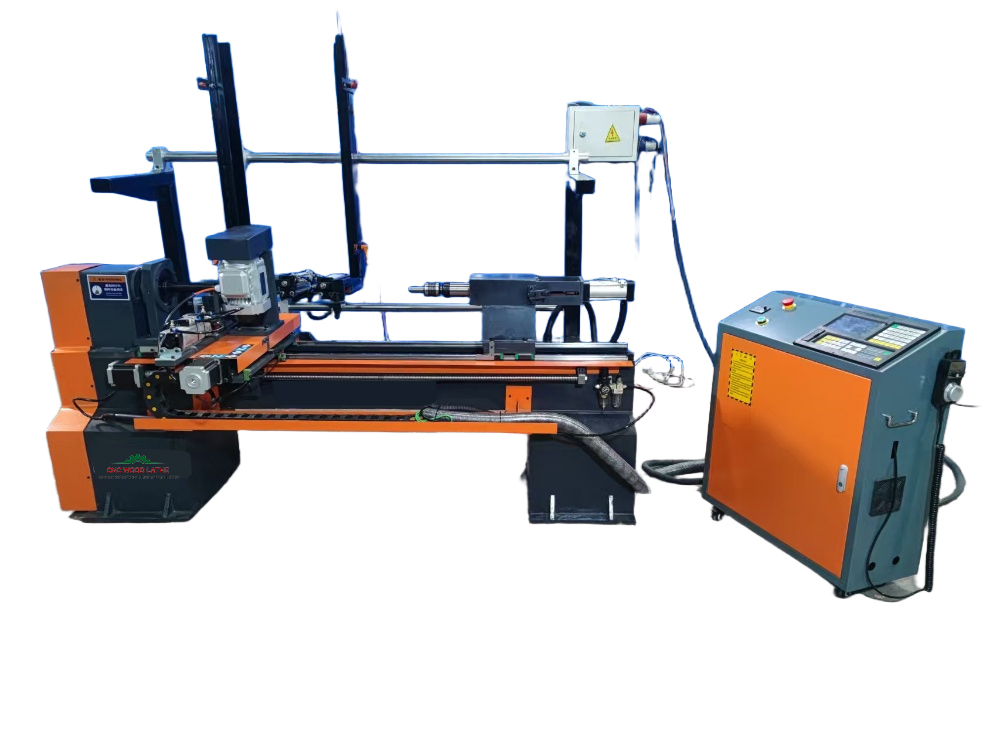

Product Showcase of Multifunctional Auto Load Unload Mini Wood Turning Lathe
Ready to Upgrade Your Wood Turning?
Get your customized CNC wood lathe solution today. Contact us for detailed pricing and technical consultation
