Cnc Wood Turning Lathe Machine with Auto Tool Changer
$4700-$10800
- Modelo: CT-1530
- Tamanho de trabalho: diâmetro 300 mm, comprimento 1500 mm
- Category: Single Axis CNC Wood Lathe
- Orientação técnica contínua para clientes finais e revendedores
- Métodos de pagamento flexíveis – Pagamentos seguros online e offline – PayPal, Alibaba, T/T, cartões aceitos
- Rede de transporte internacional garantindo entrega pontual em qualquer lugar
- Garantia abrangente de um ano para a unidade completa com planos de proteção adicionais para as peças principais
Product Overview of CNC Wood Turning Lathe Machine with Auto Tool Changer
O CNC Wood Turning Lathe Machine with Auto Tool Changer is a high-efficiency woodworking solution designed for precision, stability, and automation. It features an advanced DSP control system with USB connectivity and handheld operation, allowing easy and reliable control. Built with a heavy-duty seamless steel structure treated for long-term stability, it ensures accurate performance without deformation. Equipped with a high-precision stepper motor, Hiwin square guide rails, and a ball screw transmission, the machine delivers smooth and accurate cutting. The automatic tool changer enables fast tool switching, improving productivity and supporting complex 3D carving, engraving, and turning tasks. Ideal for producing furniture legs, stair spindles, bowls, and decorative wood parts, this CNC wood lathe offers powerful performance, easy operation, and compatibility with popular CAD/CAM software such as ArtCAM and Type3.
Key Features of CNC Wood Turning Lathe Machine with Auto Tool Changer
- Equipped with an advanced DSP control system and USB interface, operated via handheld controller for easy and efficient use.
- The lathe body is constructed from seamless welded steel, treated by high-temperature annealing and vibration stress relief to ensure long-term stability and zero deformation.
- Uses high-quality domestic stepper motors for precise motion control and superior cutting accuracy.
- The control software features a user-friendly interface with English prompts and simple parameter settings for quick operation.
- Spindle configuration available in both single-axis and dual-axis options to suit various processing needs.
- Adopts Taiwan Hiwin square linear guide rails and precision ball screws to minimize linear errors and enhance machining accuracy.
- Enables one-time tool calibration to complete the entire workpiece without repeated adjustments.
- Compatible with popular CAD/CAM programs such as ArtCAM, Type3, and similar design software.
- Supports complete offline operation, allowing continuous processing without connecting to a computer.
- Capable of performing 3D carving, engraving, and contour cutting with fine detail.
- Integrated automatic tool changer (ATC) system for fast, efficient tool switching and improved productivity.
Specification of CNC Wood Turning Lathe Machine with Auto Tool Changer
| Item | Parâmetro |
|---|---|
| Modelo | CT-1530 ATC CNC Wood Lathe |
| Working Length | 1500 mm |
| Max Turning Diameter | 300 mm |
| Spindle Type | Single-axis / Double-axis optional |
| Sistema de controle | Advanced DSP control system with USB interface |
| Operation Mode | Handheld controller, offline operation supported |
| Motor Type | High precision stepper motor (domestic top brand) |
| Transmission System | Taiwan Hiwin square guide rail and ball screw drive |
| Main Spindle Speed | 0–3000 rpm adjustable |
| Automatic Tool Changer | Standard ATC system for multi-tool operation |
| Software Compatibility | Compatible with Type3, ArtCAM, and other CAD/CAM software |
| Carving Function | 3D carving, engraving, and contour cutting |
| Tool Setting | One-time calibration for complete workpiece processing |
| Frame Structure | Seamless welded steel body with high-temperature annealing & vibration stress relief |
| Voltage | AC 380V, 50/60Hz (optional 220V) |
| Potência do motor | 4.0 kW |
| Working Mode | Fully automatic with offline operation capability |
| Formato de arquivo suportado | G-code, PLT, DXF, etc. |
| Peso líquido | Approx. 1000 kg |
| Optional Parts | Dust collector, spindle upgrade, rotary device |
Applications of CNC Wood Turning Lathe Machine with Auto Tool Changer
ChatGPT 说：

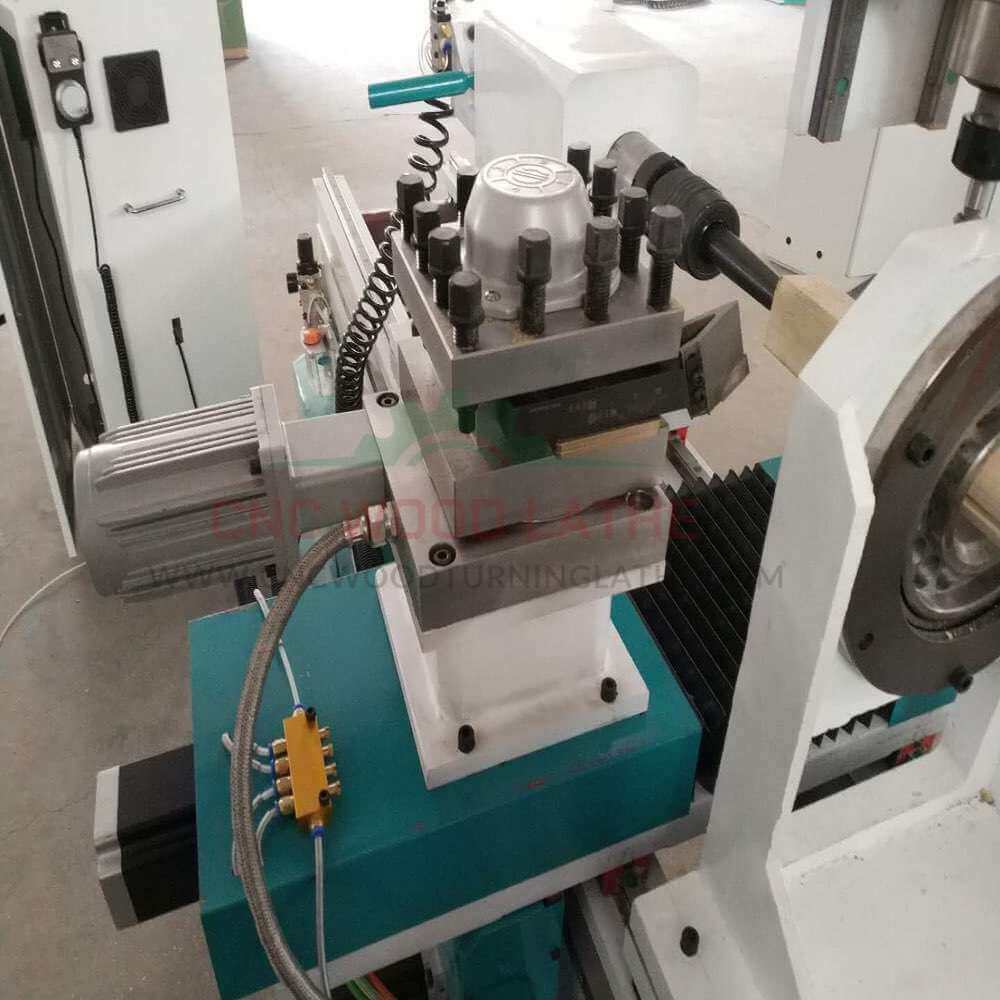

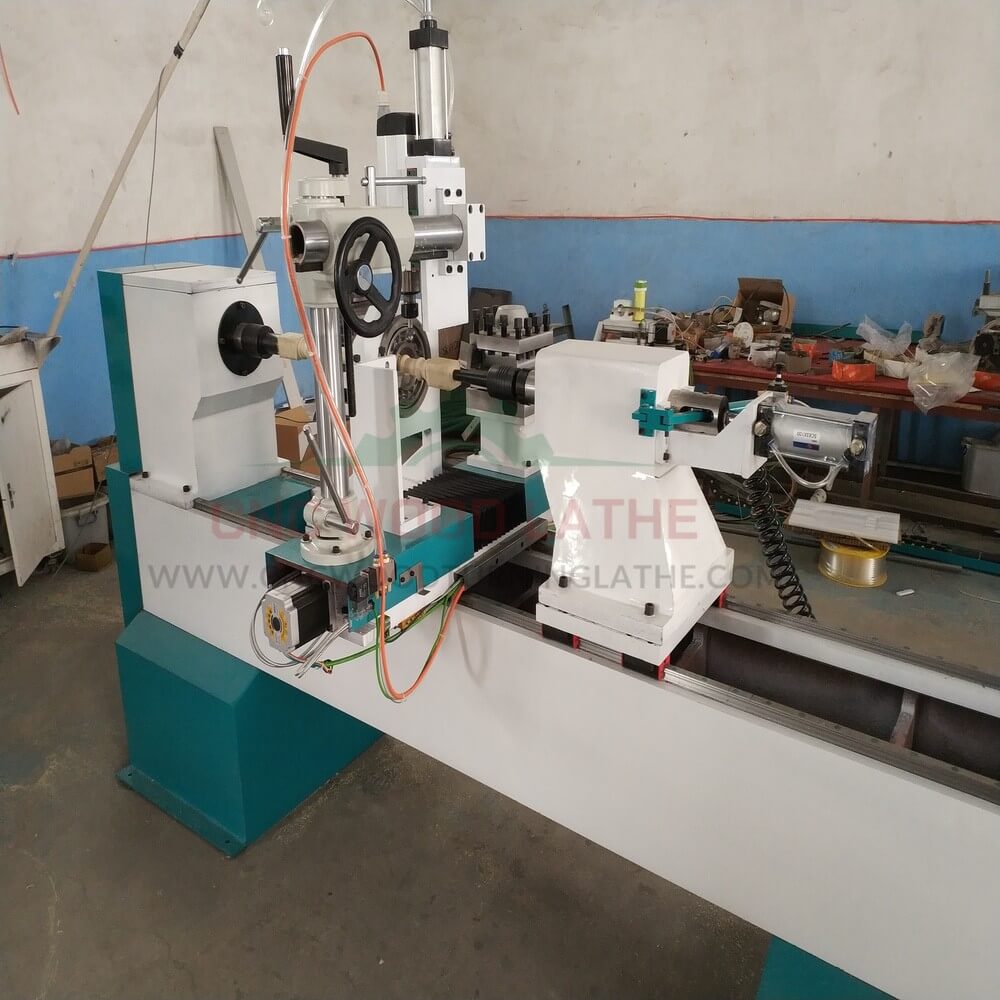

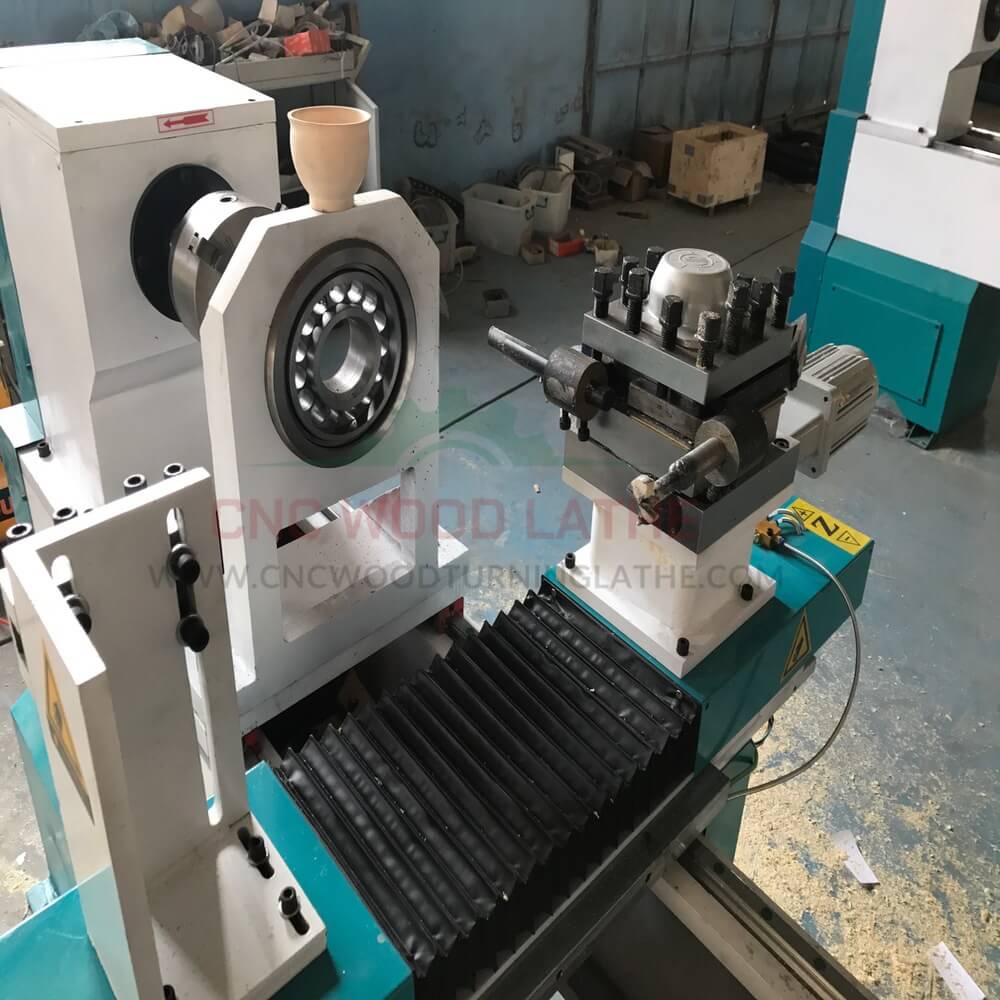

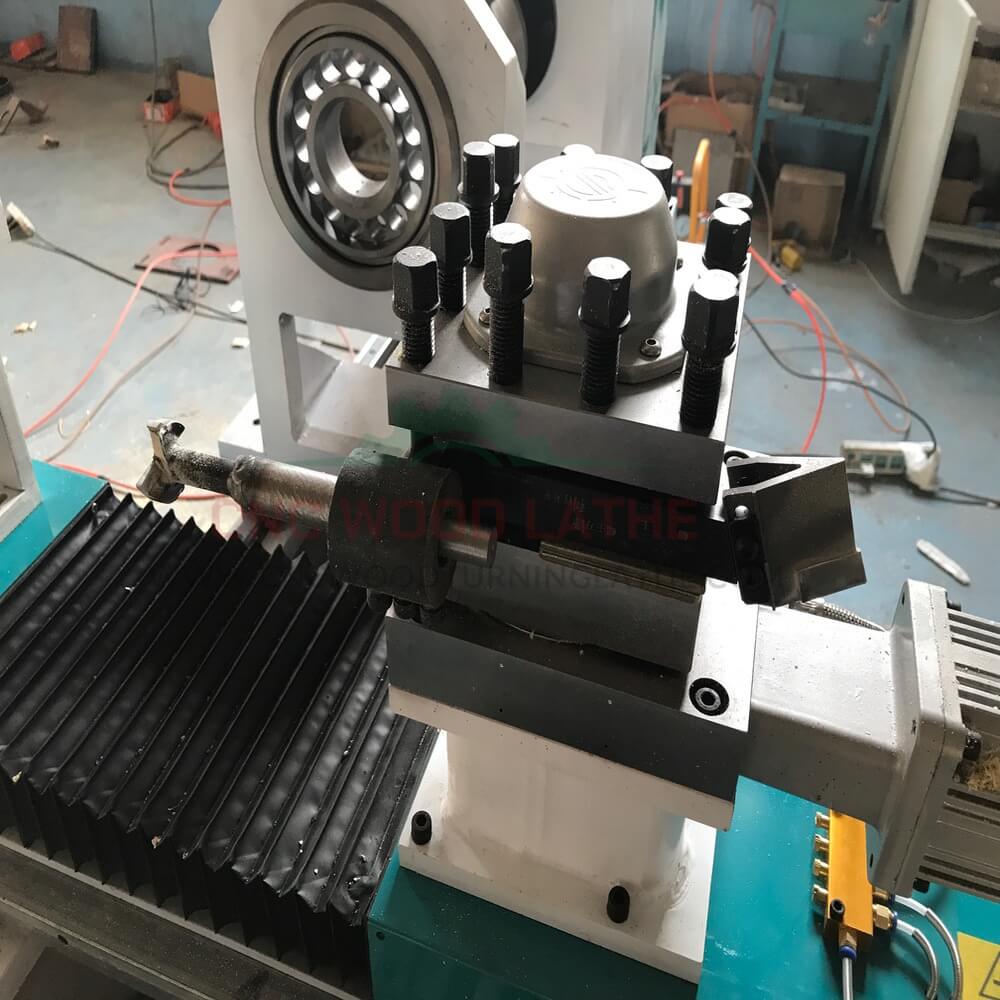

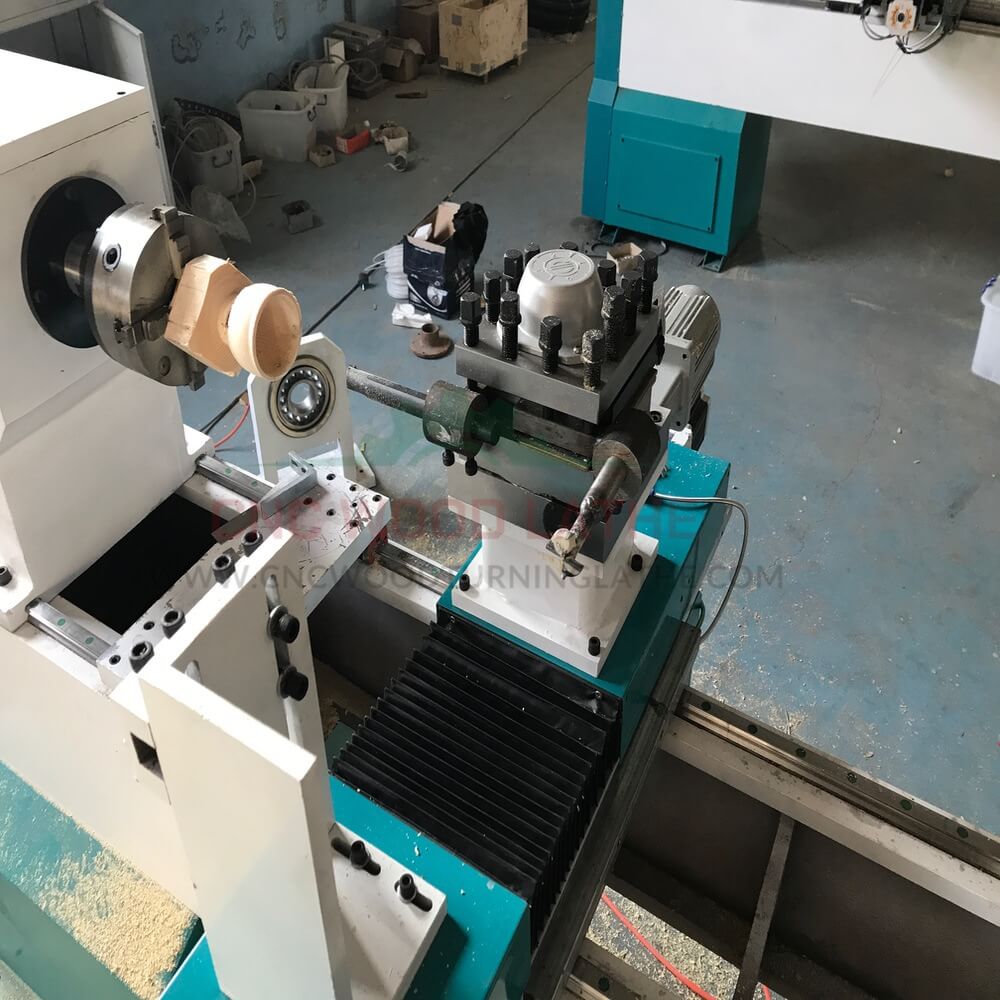

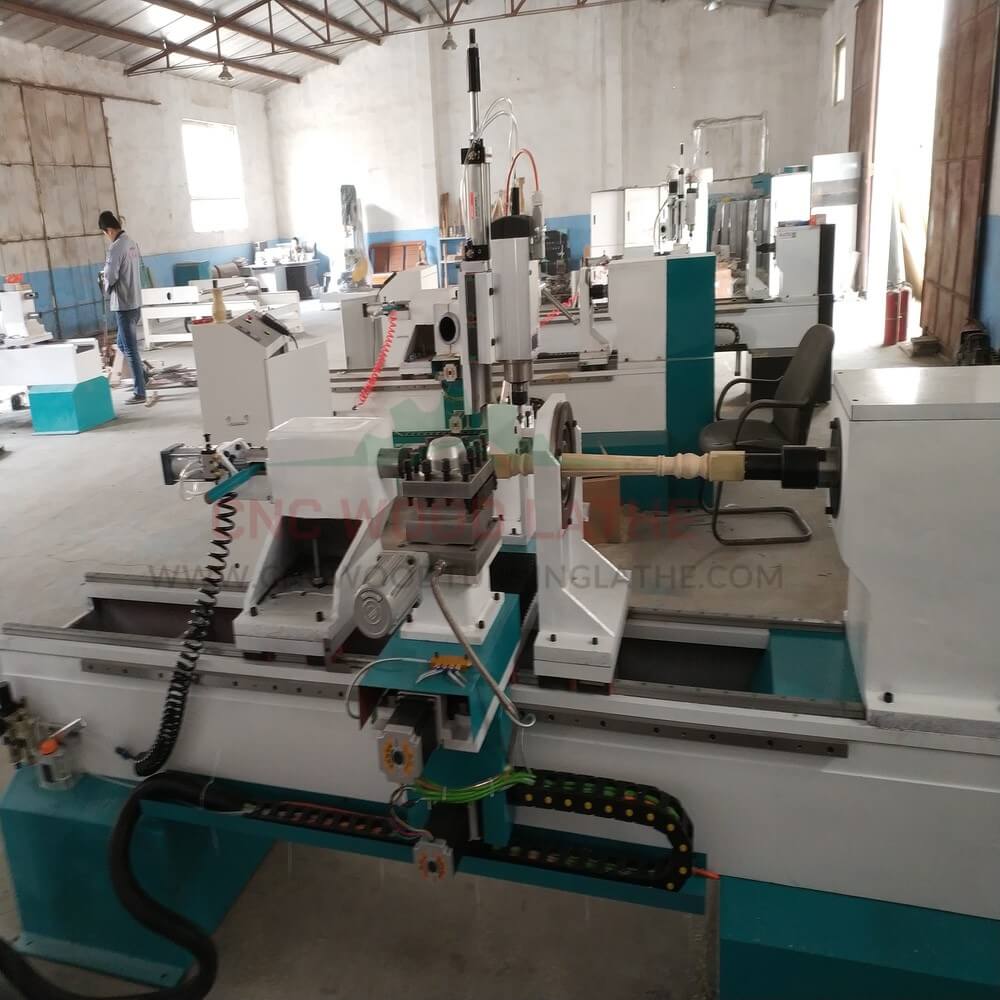

Product Showcase of CNC Wood Turning Lathe Machine with Auto Tool Changer
Pronto para atualizar sua tornearia de madeira?
Obtenha seu personalizado Solução de torno CNC para madeira hoje mesmo. Entre em contato conosco para obter preços detalhados e consultoria técnica
