Grooving Milling CNC Wood Lathe Machine for Wooden Crafts

Grooving Milling CNC Wood Lathe Machine for Wooden Crafts

The Grooving Milling CNC Wood Lathe Machine is a precision woodworking tool designed for creating custom wooden crafts like stair posts, decorative banisters, chair legs, and other cylindrical or conical wood pieces. Ideal for pillars, spindles, and furniture parts, this CNC wood lathe can handle a standard working diameter of 160 mm, with a maximum turning diameter of 300 mm and a processing length of 2000 mm, making it perfect for both small-batch and large-scale woodturning projects.

Features Videos of CNC wood lathe

A CNC lathe machine is a widely used woodturning tool that spins the workpiece along its axis to perform multiple tasks such as cutting, turning, sanding, engraving, drilling, slotting, and shaping. This versatile woodworking lathe enables precise and efficient processing of wooden parts, making it ideal for producing detailed and customized wood components.

cnc Lathe Machine Wood
wood Turning Lathe
wood Cnc Lathe 1516 1530
wood Lathe Machine Turning

Introduction of Grooving Milling CNC Wood Lathe Machine for Wooden Crafts

  • Heavy-Duty Welded Frame
    The whole CNC lathe machine is built with a seamless steel frame structure that undergoes high-temperature annealing and vibration stress relief. This process ensures the machine body remains stable, rigid, and deformation-free for long-term precision. The total weight reaches up to 1500 kg, adding extra stability during high-speed turning operations.
  • Dedicated for Wood Turning & Cylinder Carving
    This CNC wood lathe is specially designed for turning and engraving wooden cylinders. It’s ideal for producing stair balusters, table legs, chair spindles, and other furniture parts with consistent quality.
  • Advanced LCD Control System
    Equipped with an easy-to-use LCD controller and a wireless handwheel, operators can manage complex turning tasks conveniently, boosting productivity and reducing setup time.
  • High-Precision Motion Parts
    The machine adopts a German-made ball screw and Taiwan HIWIN helical square linear guide rails, delivering excellent accuracy, smooth movement, and long-lasting performance for precise wood cutting.
  • Supports Popular CAD/CAM Software
    Fully compatible with multiple design and programming software, including Type3, ArtCAM, and other popular CAD/CAM tools, making file preparation and toolpath generation simple and efficient.
  • Adjustable Spindle Speed with Real-Time Display
    The rotating speed of the spindle can be easily controlled through an inverter, and the current speed is visible on the control cabinet panel — perfect for adjusting feed rates and achieving smooth finishes.
  • One-Time Tool Setup for Complete Jobs
    Once the tool is set, the machine can complete the entire piece in one go, saving time and ensuring consistent precision on every project.
  • Multi-Function Machining: Turning, Broaching & Engraving
    This CNC wood lathe combines high-speed turning, slotting, and engraving capabilities into one powerful machine — giving woodworkers maximum versatility for custom woodwork and bulk production

Specification of Grooving Milling CNC Wood Lathe Machine for Wooden Crafts

ItemsSpecification
Processing Length (mm)2000MM , SUPPORT CUSTOMIZED 1500MM, 1000MM, 1200MM, 2500MM
Max Swing Over Bed (mm)Max diameter 300mm; Diameter 160mm for two workpieces
Power Supply380V / 50HZ
Control SystemsA: Full-color 12-inch screen built-in CNC computerB: DSP handle controller (USB)
Guides and Ball ScrewsImported linear square rails and precision ball screw
Follow RestRotary Centre (5CM wooden, 6CM wooden)
Self-CenteringAutomatic centering with foot pneumatic feed
Motor Control4-pole 380V frequency spindle
Frequency ConverterVector electronic automatic brake inverter
TailstockPneumatic material clamping top
ToolsV-shaped steel tool at factory front, welded alloy knife
SoftwareEasy-to-use control software + basic map file
Accessory ToolsRandom tool wrench
Engraver/Pull TroughPull and twist versatile spindle control section
Additional Pull TroughUniversal rotary joint
Optional for CNC Wood1. 160mm four-jaw chuck linkage2. Woodworking cleaner (Vacuum cleaner)3. 220V constant power variable spindle control4. Four-station automatic tool changer

Application of Grooving Milling CNC Wood Lathe Machine for Wooden Crafts

Application Materials

This CNC wood lathe machine is compatible with a wide range of natural and engineered materials, including pine wood, beech wood, oak wood, mahogany wood, camphor wood, birch wood, rosewood, lime wood, teak wood, as well as artificial marble, crystal, resin glass, and other soft materials commonly used in woodworking and craft industries.

Application Areas

Perfect for high-precision woodturning and carving, this CNC lathe for wood is widely used to produce wooden staircase handrails, balusters, table legs, sofa legs, chair legs, bed posts, baseball bats, billiard cue sticks, flagpoles, rolling pins, wooden brush handles, decorative wooden columns, pavilion spires, furniture legs, and other custom wooden craft parts. This machine is ideal for woodworking shops, furniture manufacturers, staircase makers, and custom wood product businesses that require efficient, repeatable, and detailed turning operations.

Features of Grooving Milling CNC Wood Lathe Machine for Wooden Crafts

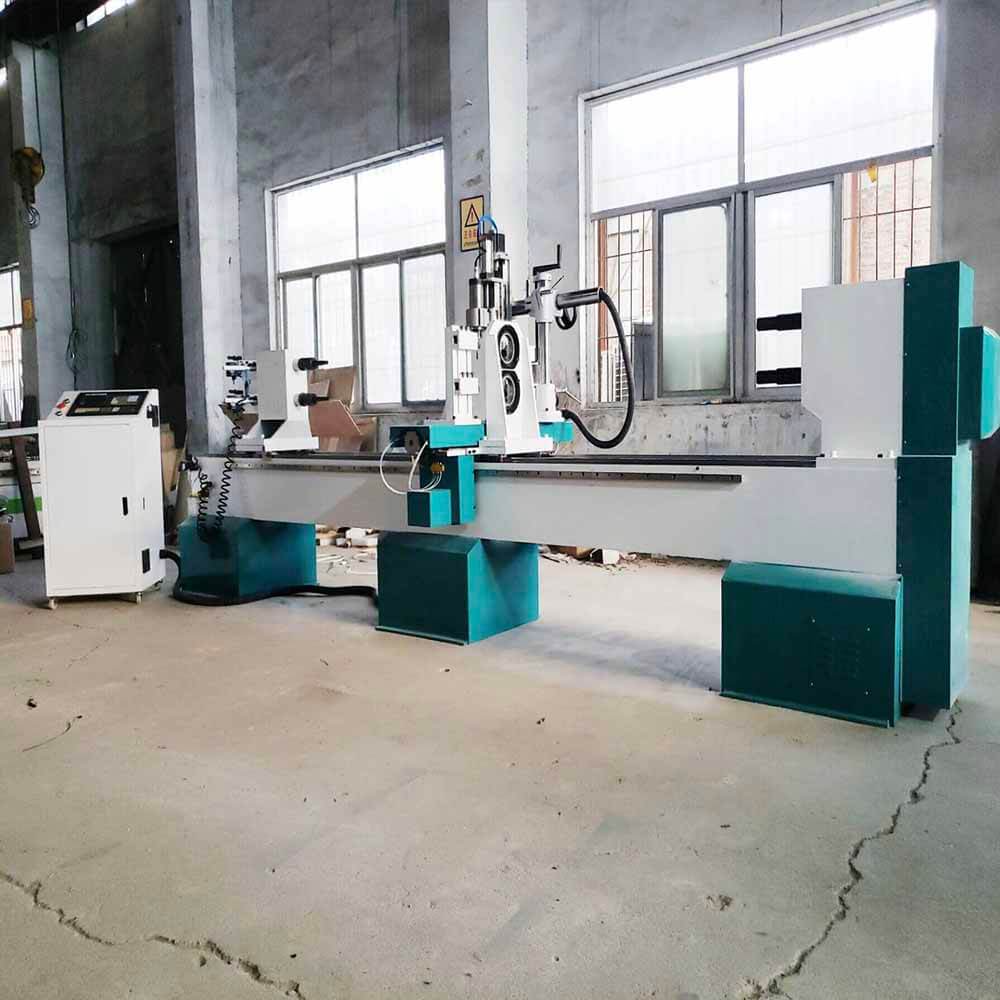

1516 1530 Cnc Wood Lathe Machine

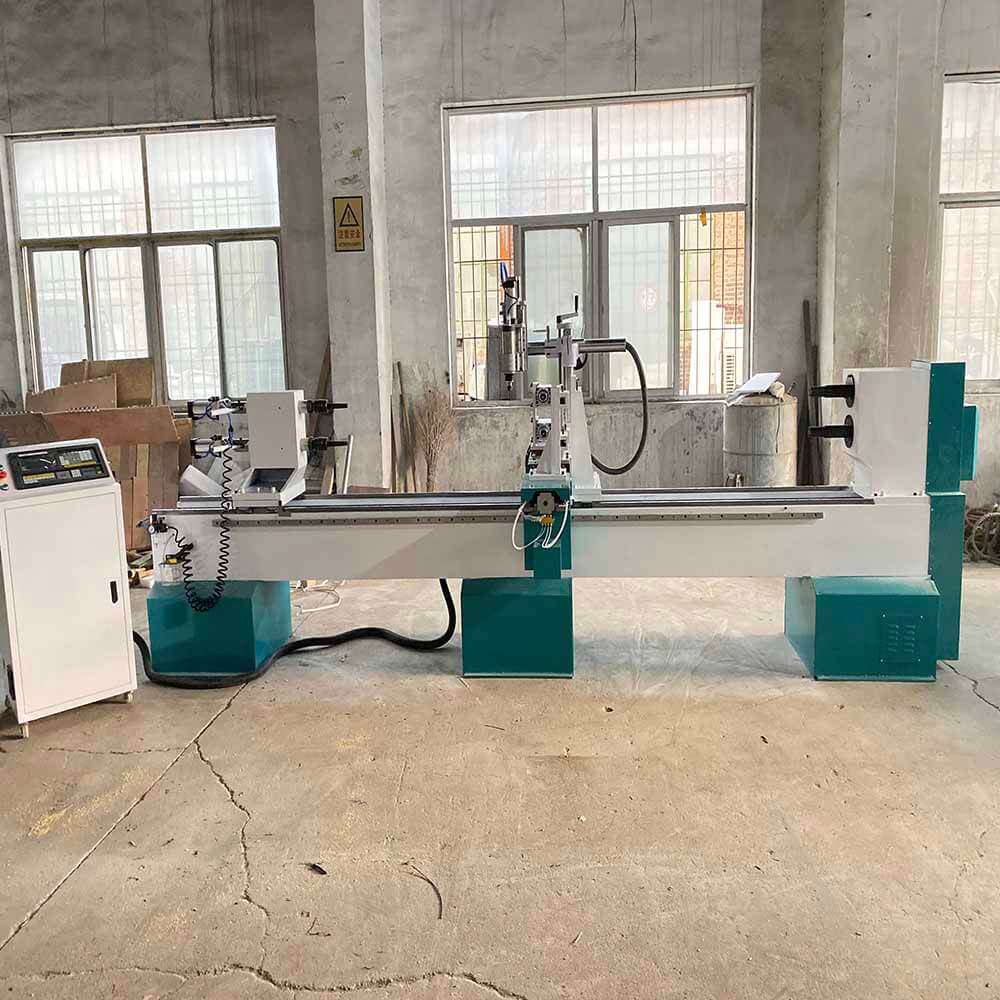

4-axis Cnc Wood Lathe 3d Turning

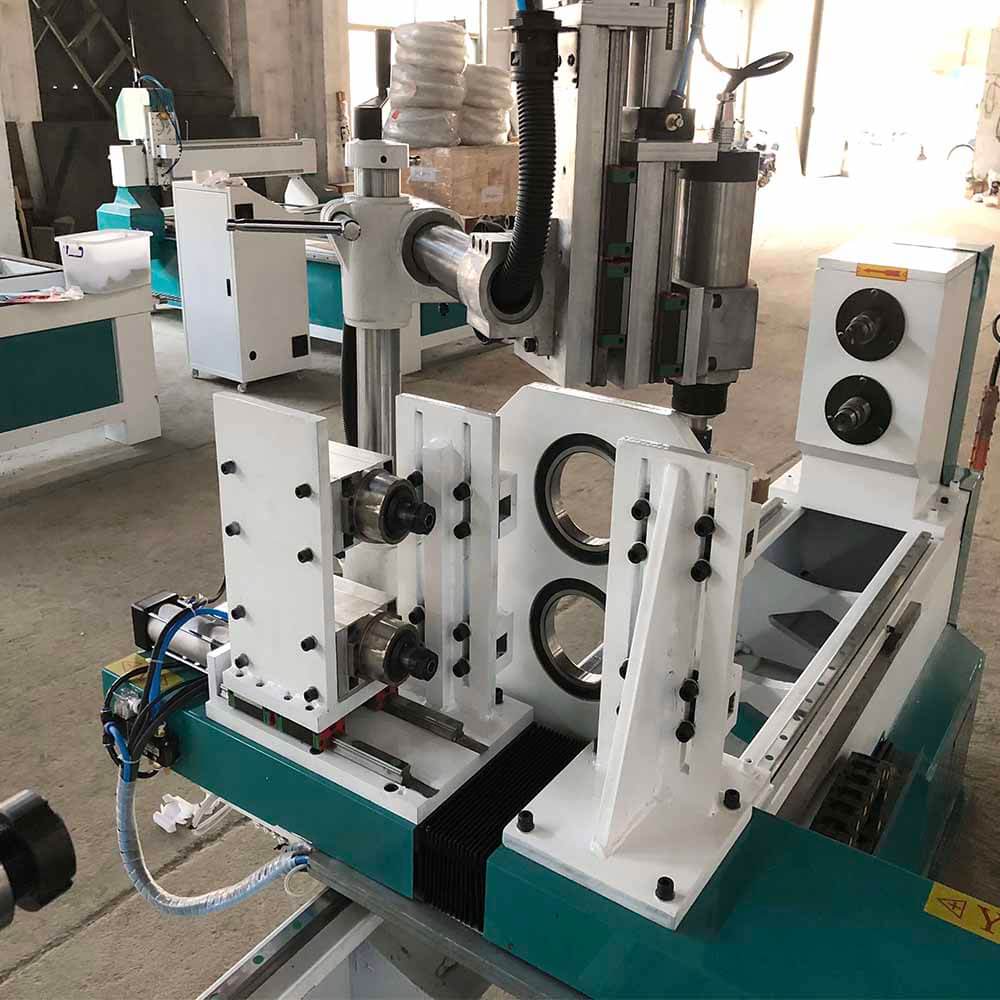

Automatic Cnc Wood Lathe

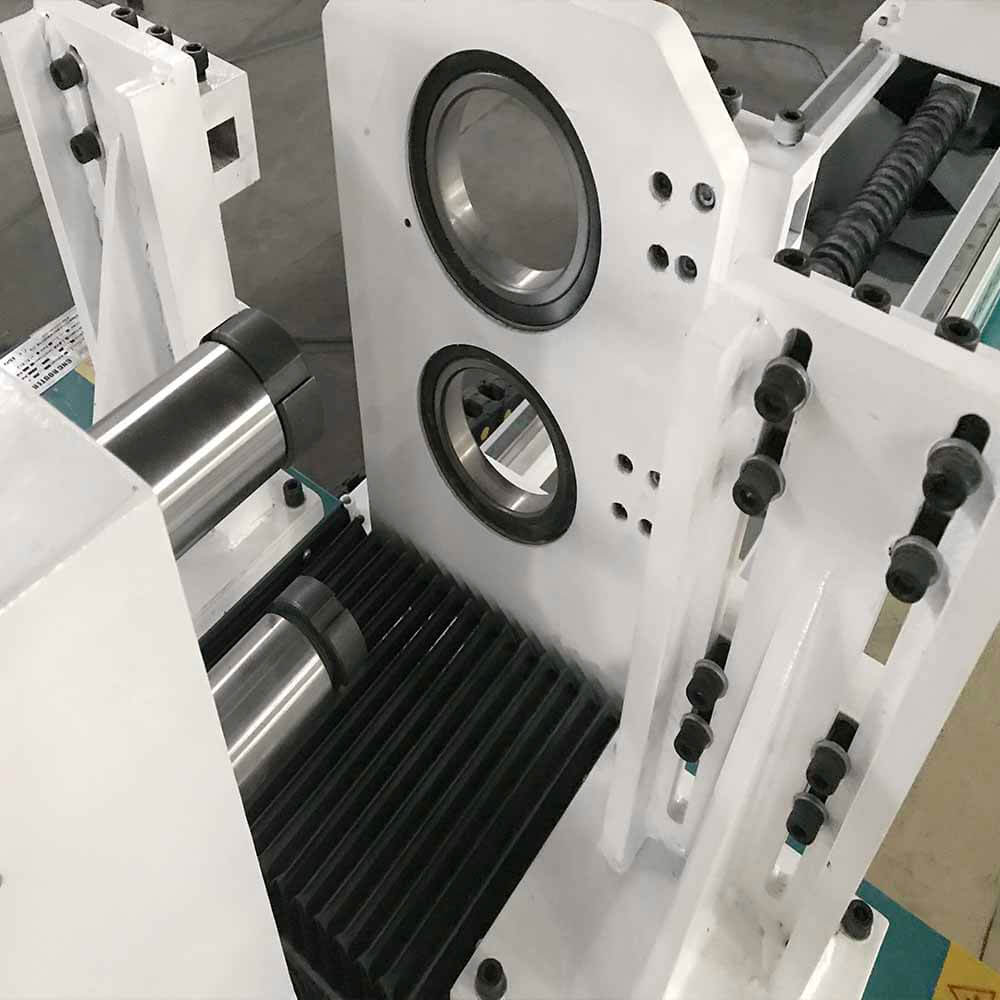

cnc Lathe Wood Turning Tool

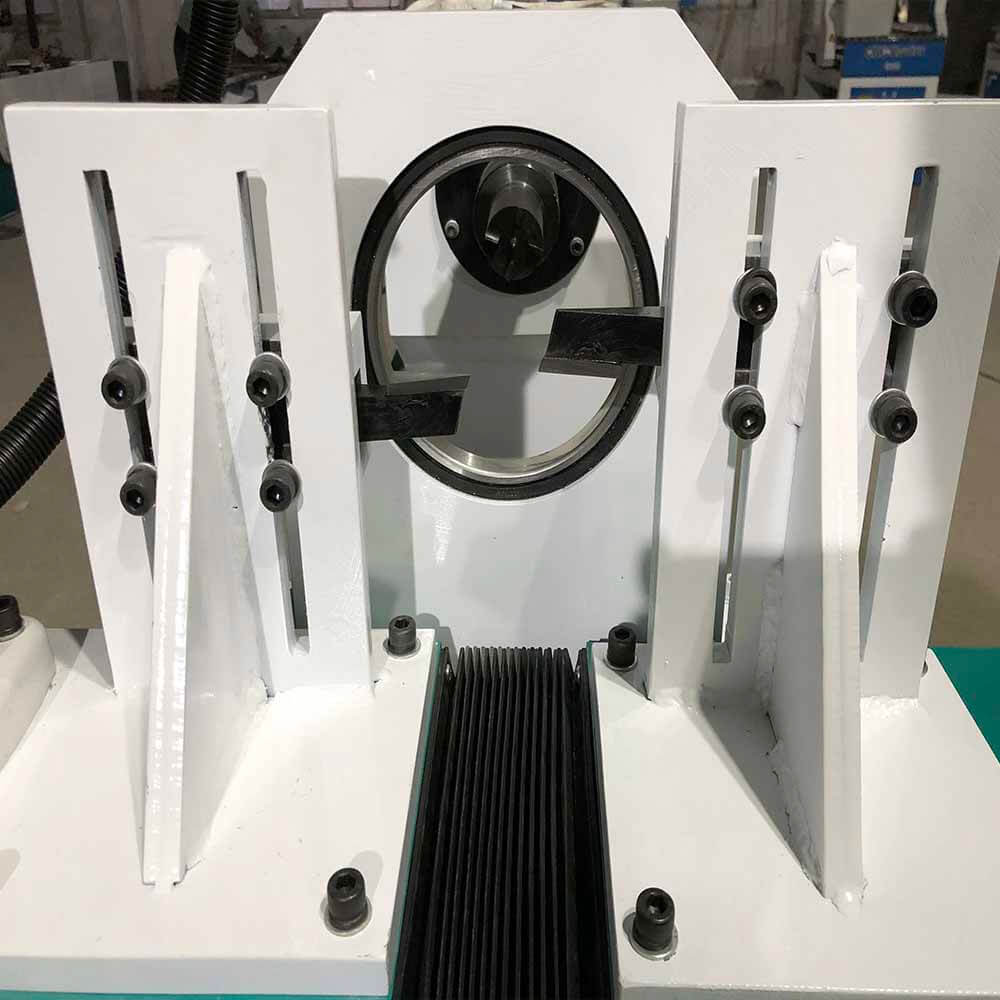

cnc Lathe Wood Turning Cutting

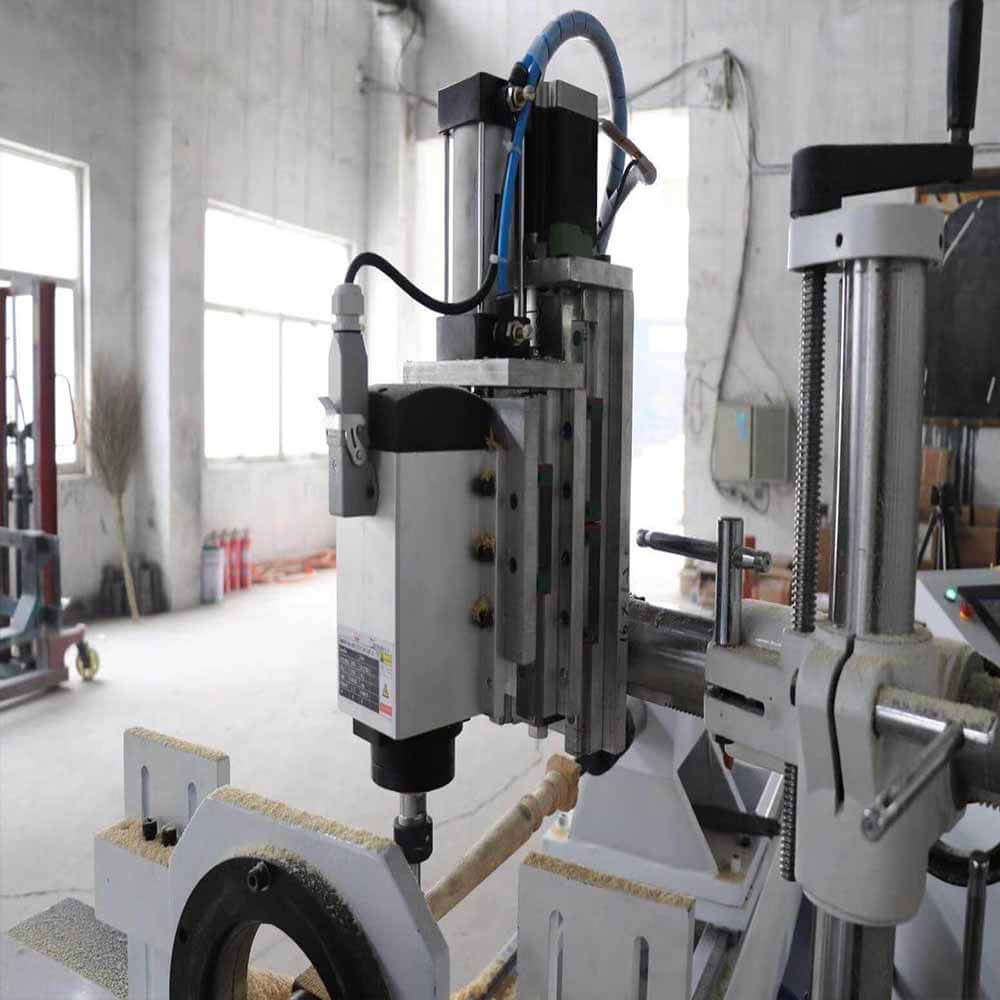

hobby Cnc Wood Lathe

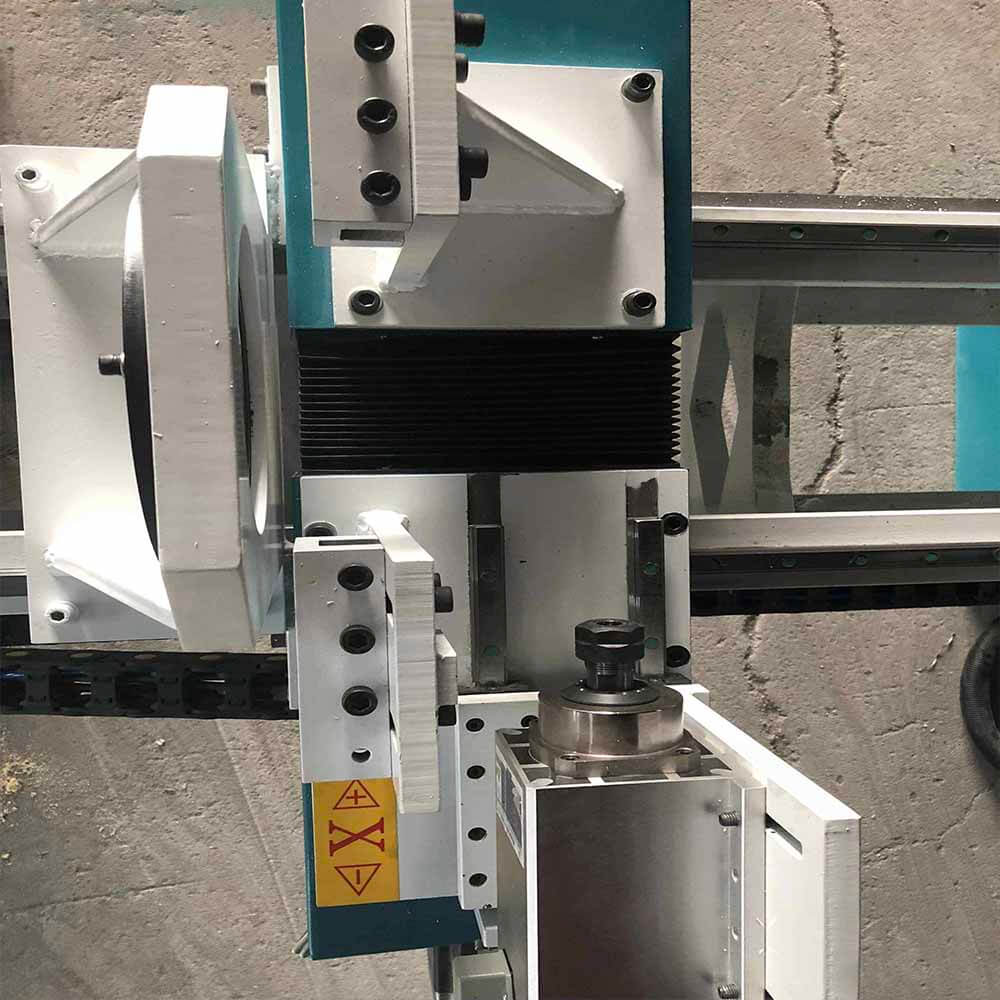

3d Cnc Wood Lathe
